Target module »DP-HR-U-CPU-Fiber-DH-UC«
Target and user modules (DP-HR-U) · 74
Connecting the first matrix switch
Trans. 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Rx interface of a Dynamic Port provided at the first matrix
switch.
Trans. 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Tx interface of the same Dynamic Port provided at the first
matrix switch.
Connecting the second first matrix switch
Trans. 2|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Rx interface of a Dynamic Port provided at the second matrix
switch.
Trans. 2|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Tx interface of the same Dynamic Port provided at the second
matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
Start-up
Connect the power cable to the power pack and a power socket. The target module
starts as soon as it is supplied with power.
ADVICE:
You can also connect the target module directly to up to two compatible
user modules.

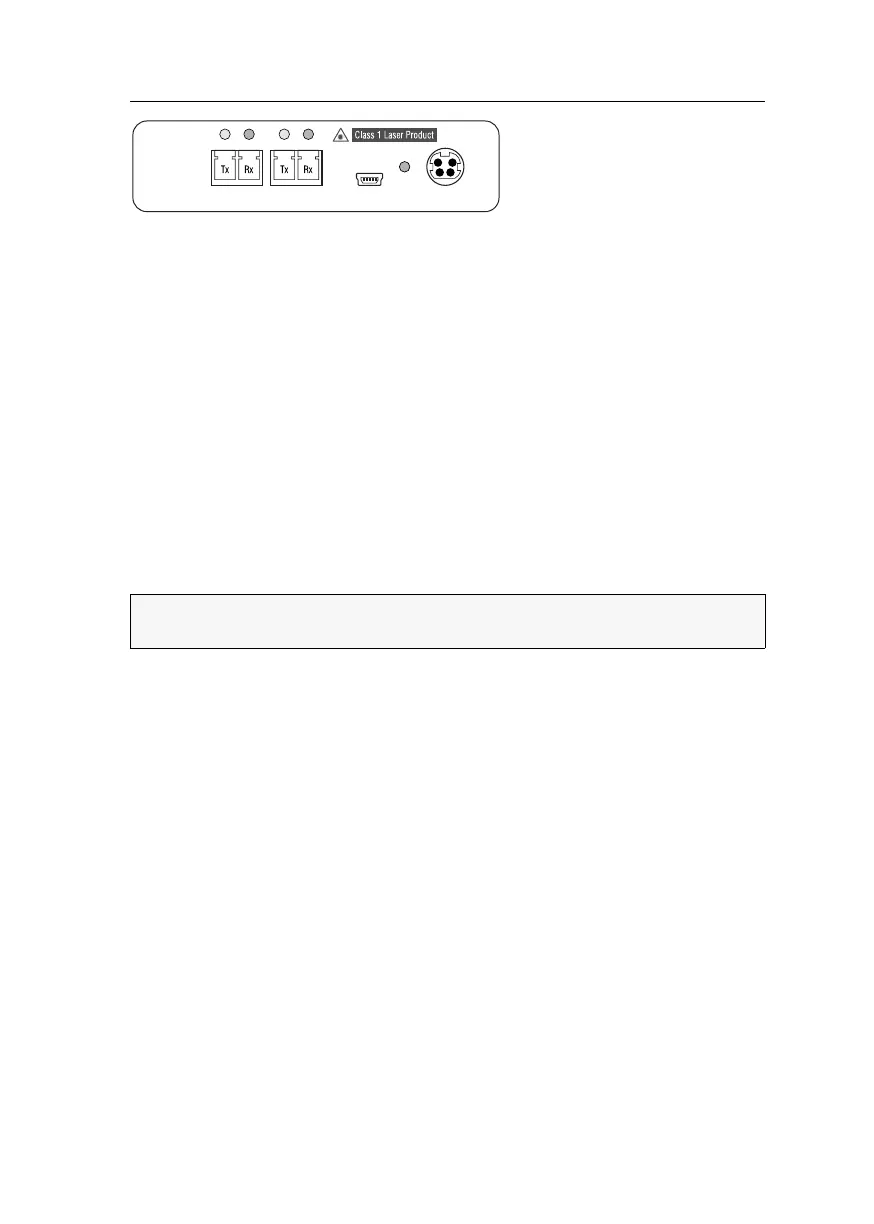

Power In
