Wiring Connections
Page 17
Keypad Terminal Connections
Some keypads that are compatible with other Gardiner Technology control panels may
have additional markings as well as the GardTec 872 legends. These additional
markings are disregarded within this manual.
The keypad port on the master control panel is situated on the bottom edge of the PCB
towards the right hand side. Wiring to the RKP(s) is terminal to terminal as shown in
the following illustrations.

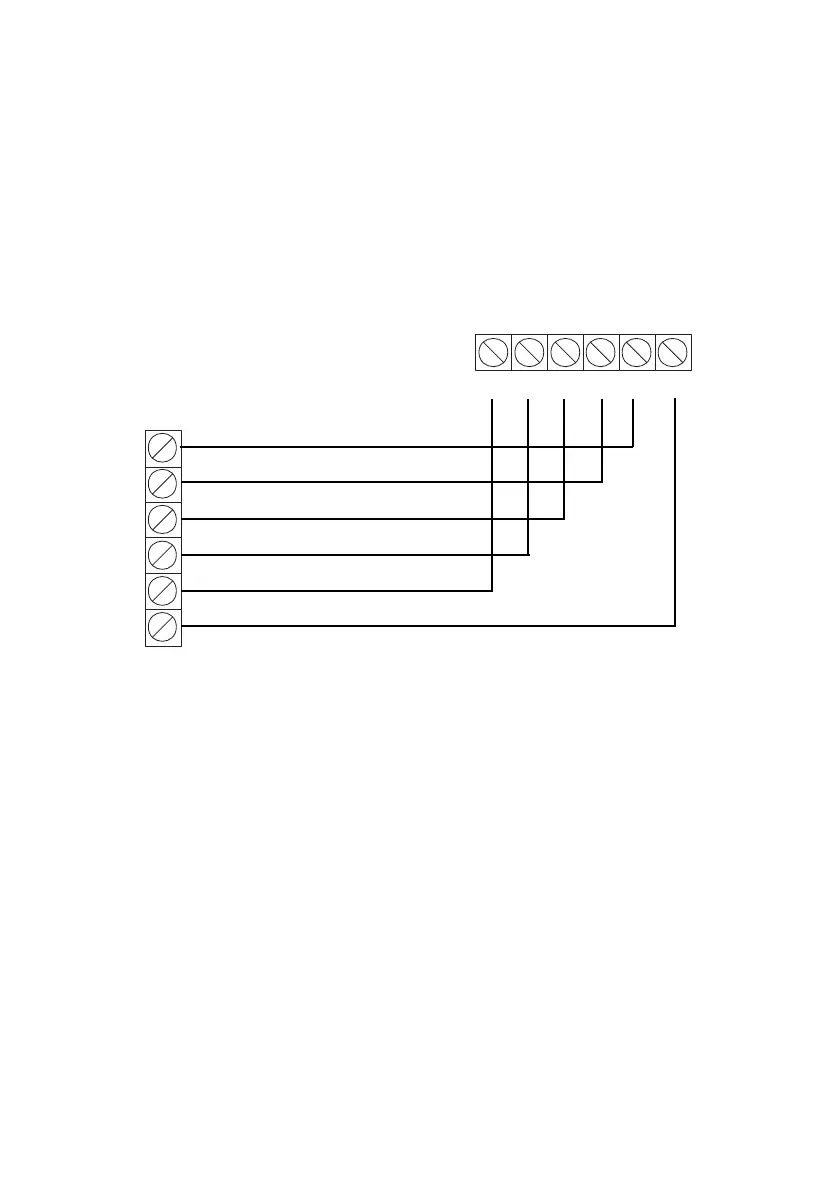

Fig 9. Single RKP wiring.
NOTE: RKP terminal positions may differ (dependent on model)
12V 0V CLK DATA DATA SPKR
AB
DATAB DATAA CLK OV 12V SPKR
Control Panel
RKP
GardTec 872
