Wiring Connections

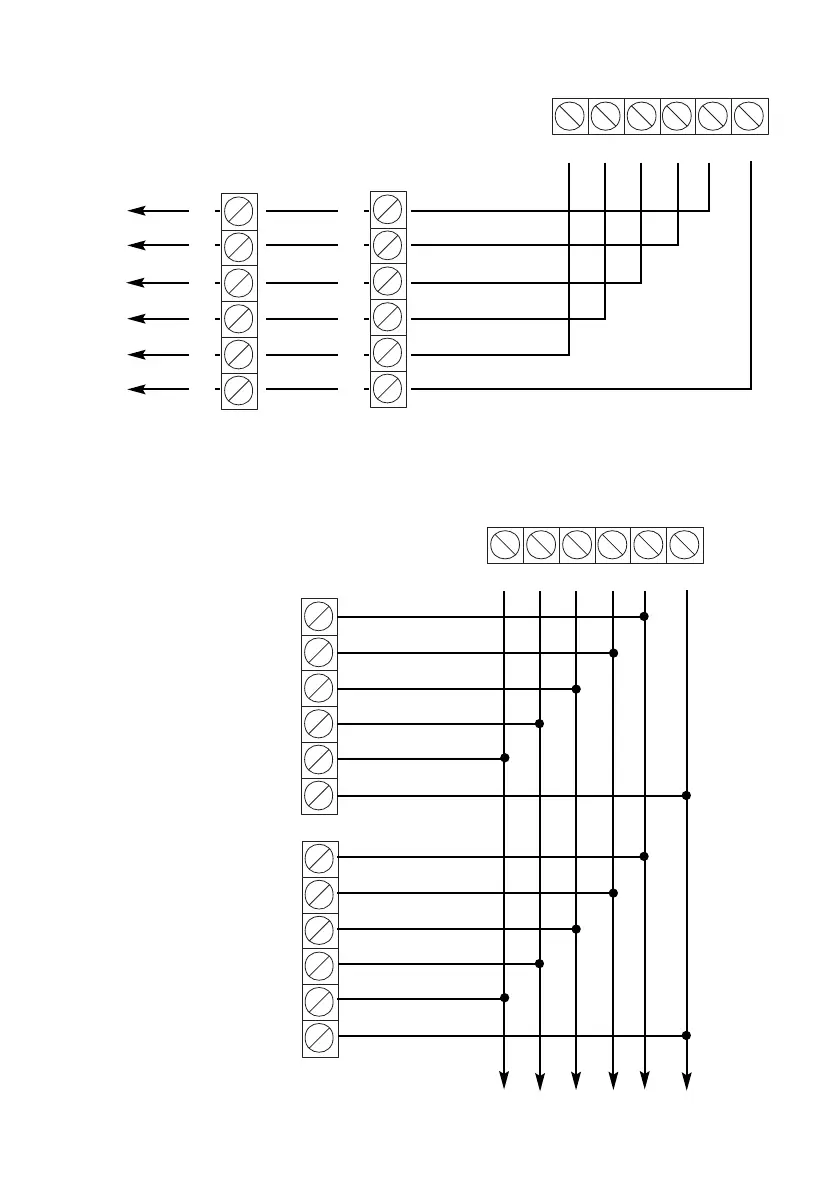

Fig 10. Multiple RKPs 'Daisy Chain' format.
NOTE: RKP terminal positions may differ (dependent on model)
Fig 11. Multiple RKPs 'Star' format.
12V 0V CLK DATA DATA SPKR
AB
Control Panel
12V 0V CLK DATA DATA SPKR
AB
Control Panel
RKP 2
RKP 1
DATAB DATAA CLK OV 12V SPKR
RKP 1
DATAB DATAA CLK OV 12V SPKR
RKP 2
DATAB DATAA CLK OV 12V SPKR
DATAB DATAA CLK OV 12V SPKR
To other RKPs
To other RKPs
NOTE: RKP terminal
positions may differ
(dependent on model)
