GNS 530(A) Pilot’s Guide and Reference
190-00181-00 Rev. G
7-10
SECTION 7
WPT PAGES
Airport Frequency Page Options
/iÊvÜ}Ê«ÌÃÊ>ÀiÊ>Û>>LiÊvÀÊÌiÊÀ«ÀÌÊ
ÀiµÕiVÞÊ*>}i]ÊLÞÊ«ÀiÃÃ}ÊÌiÊMENU Key:
UÊ-iiVÌÊ iÝÌÊ*ʫ̶ÊÊ/ÃÊ«ÌÊÃÊÞÊ
>Û>>LiÊÜiÊ>Ê}ÌÊ*>ÊÃÊ>VÌÛi°ÊÊÜÃÊÌiÊ
pilot to view the frequency information for the
iÝÌÊ>À«ÀÌÊÊÌiÊ>VÌÛiÊy}ÌÊ«>
UÊ-iiVÌÊiÃÌ>Ìʫ̶ÊÊ/ÃÊ«ÌÊÃÊÞÊ
>Û>>LiÊÜiÊ>Ê}ÌÊ*>ÊÃÊ>VÌÛi°ÊÊÜÃÊÌiÊ
pilot to view the frequency information for the
active flight plan destination airport.
Selecting an Airport Frequency Page Menu
Option:
1) With a Flight Plan Active, select the Airport
Runway Page.
2) Press the MENU Key to display the Airport
Runway Page Menu.
3) Turn the large right knob to highlight ‘Select
Next FPL Apt?’ or ‘Select Destination Apt?’ and
press the ENT Key (Figure 7-18).

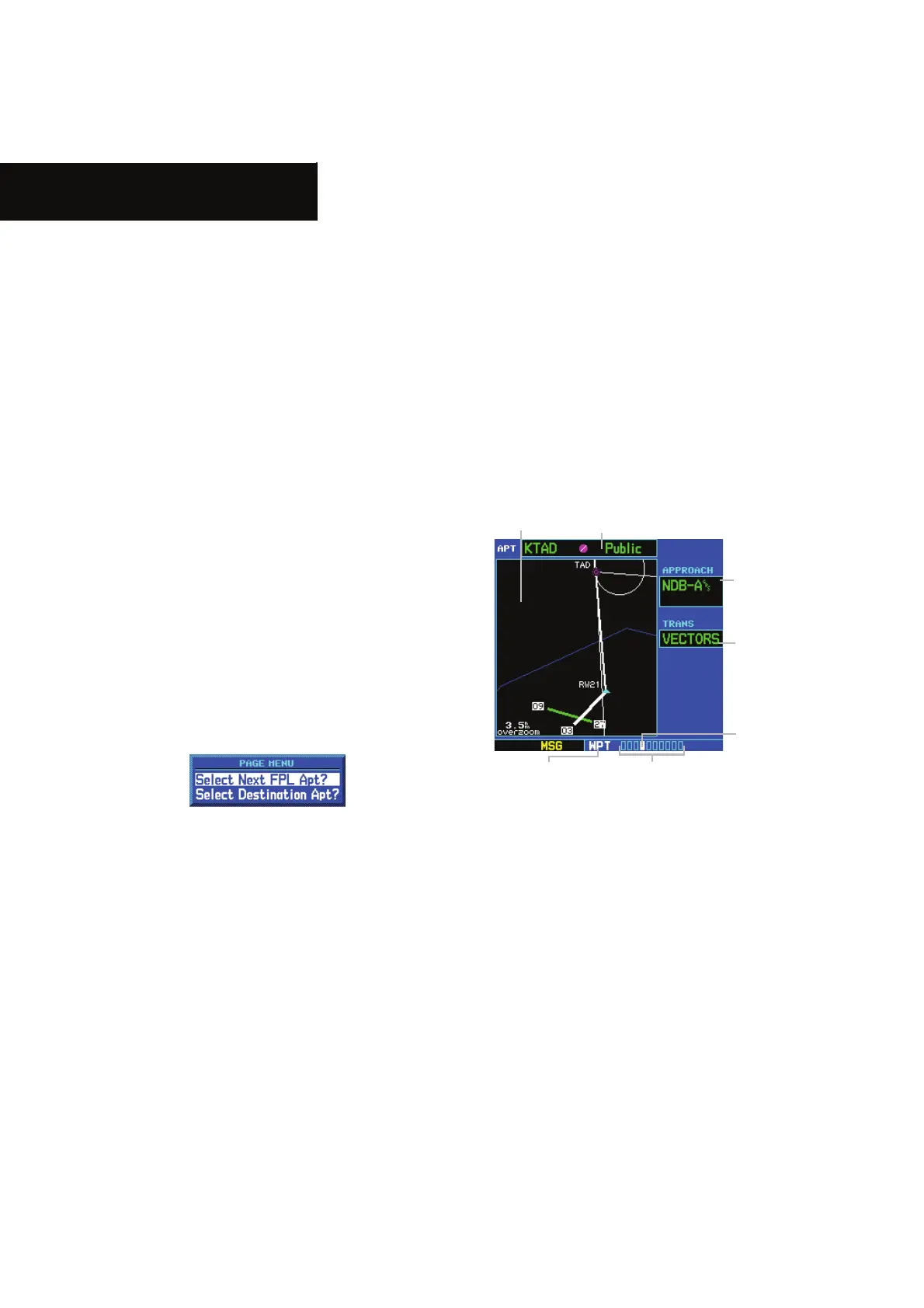

Figure 7-18 Airport Runway Page Menu
4) The Airport Frequency Page displays information
regarding the next Flight Plan or Destination
Airport.
7.5 AIRPORT APPROACH PAGE
/iÊÀ«ÀÌÊ««À>VÊ*>}iÊ}ÕÀiÊÇ£®ÊÃÜÃÊÌiÊ
available approach procedures for the selected airport.
7iÀiÊÕÌ«iÊÌ>Ê>««À>VÊwÝiÃÊîÊ>`Êvii`iÀÊ
routes are available, that information may also be
`ë>Þi`°ÊÊÊ>«Ê>}iÊ«ÀÛ`iÃÊ>Ê>ÞÕÌÊ`>}À>ÊvÀÊ
each approach and transition.
To view approach information for a particular airport
ÊÌiÊÀ«ÀÌÊ««À>VÊ*>}i]ÊiÌiÀÊÌiÊ>À«À̽ÃÊ`iÌwiÀÊ
«iÀÊ-iVÌÊÇ°£°
Figure 7-19 Airport Approach Page
Number of Pages in
Current Page Group
Position of
Current Page
within Current
Page Group
Current
Page Group
Airport Identifier,
Symbol, and Type
Map Im-
age
Approach
Procedure
Name
Transitions:
IAF’s, Feeder
Routes, and
Vectors-to-Final
Scrolling through the available approaches
and transitions:
1) Press the small right knob to activate the
cursor.
2) Turn the large right knob to place the cursor
on the approach (APR) procedure name field.
3) Turn the small right knob to display a window
of available approaches for the selected airport
(Figure 7-20). Continue turning the small right
knob to select the desired approach.
To Next Page
