uSInG Sonar

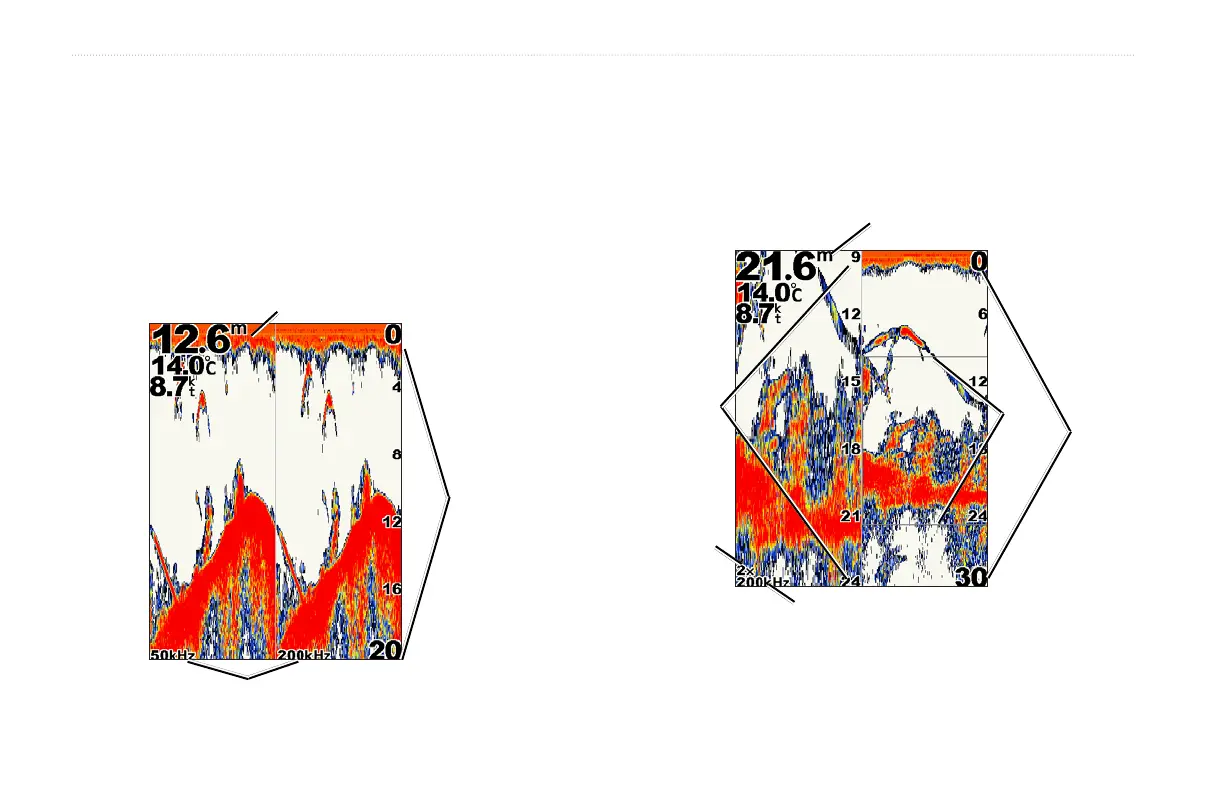

Understanding the Split Freq Screen
Use the Split Freq screen (dual frequency transducer only) to view
both the 50kHz and 200kHz frequencies on the same screen. A
50kHz frequency graph appears on the left; a 200kHz frequency
graph appears on the right.
To open the Split Freq screen, from the Home screen, select Sonar >
Split Freq.
Depth, temperature, and speed
Range
Frequencies
Understanding The Split Zoom Screen
Use the Split Zoom screen to view the full sonar data from the graph
and a zoomed in portion on the same screen.
From the Home screen, select Sonar > Split Zoom.
Transducer frequency
or beam width
Depth, temperature,
and speed
Range
Zoom
window
Zoomed
depth scale
Zoom level
