3-52 Pilot’s Guide 190-02327-03 Rev. C
Navigation
Aircraft Position Icon
FEATURE REQUIREMENTS
• Aircraft position is fully within chart boundaries
• FliteCharts or ChartView is active (airborne maneuvers only)
FEATURE LIMITATIONS
• SIDs and STARs do not support the display of aircraft position
• Not available for arrival and departure charts
• Displays only within the planview area of geo-referenced approach charts
Aircraft position displays on airport diagrams and approach charts when the current
position is known.

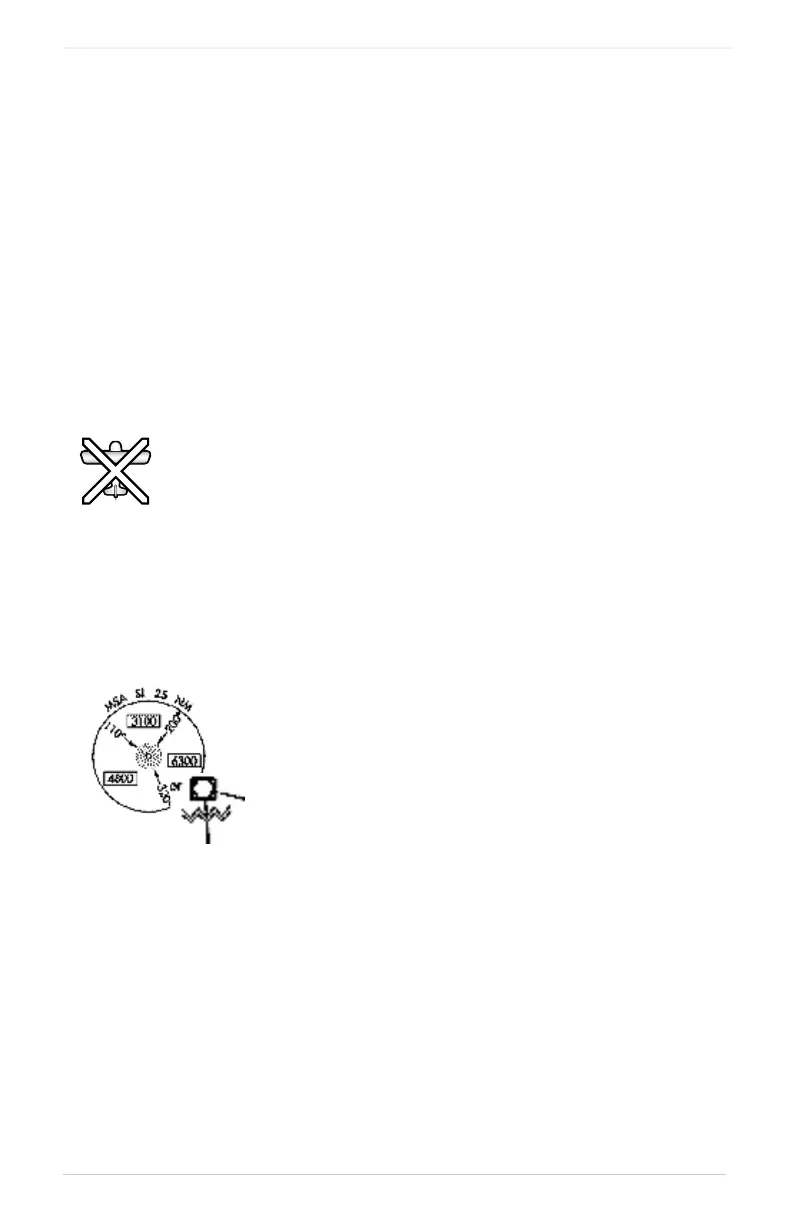

POSITION UNAVAILABLE INDICATION
OFF SCALE AREA
A fault icon appears in the bottom right corner when:
• Aircraft position data is not available
• Selected chart does not contain geo-referenced data
• Selected chart layer is not All or Planview
Some charts contain supplemental information within
the planview. These areas are considered off scale as
they are not geographically accurate.
Aircraft position depictions in off scale areas should
be judged relative to the geo-referenced information
within the planview only.
