GPS Status
This page provides a visual reference of GPS receiver functions, including:
SKY VIEW DISPLAY
• Current satellite coverage • GPS solution and receiver status
• Phase of flight • Position accuracy
• Present position
(latitude and longitude)
Monitor GPS receiver performance, establish a baseline for
normal system operation, and troubleshoot weak or missing
signal issues.

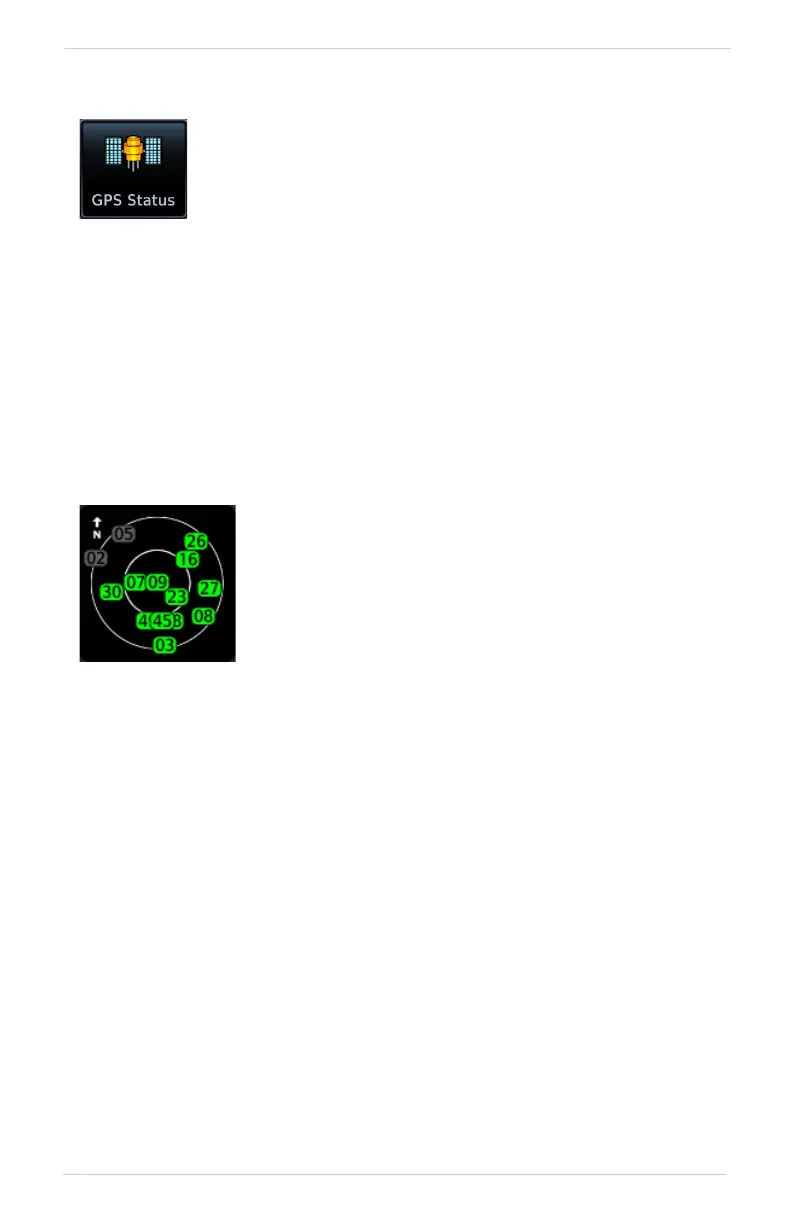

• Depicts satellites currently in view as well as their
respective positions
• Outer circle represents the horizon
(with north at the top of the circle)
• Inner circle represents 45° above the horizon
• Center point shows the position directly overhead
