3-54 Pilot’s Guide 190-02327-03 Rev. C
Navigation
Waypoint Information
FEATURE REQUIREMENTS
• FIS-B (viewing NOTAMs)
• Navigation database containing VRP waypoint data
FEATURE LIMITATIONS
• FIS-B transmits distant and FDC NOTAMs within 100 nm of radio station position
Intersection, VOR, VRP, and NDB information pages have a uniform layout.
1 Waypoint Identifier Key 6 Map Preview
2 Location Information 7 Station Declination
3 Class Information 8 Nearest NAVAID information
4 Frequency Selection Key 9 Waypoint coordinates
5 Waypoi
nt Map Symbol 10 Waypoint Distance & Bearing
Dedicated information pages provide waypoint search
functions and details not available on Map.

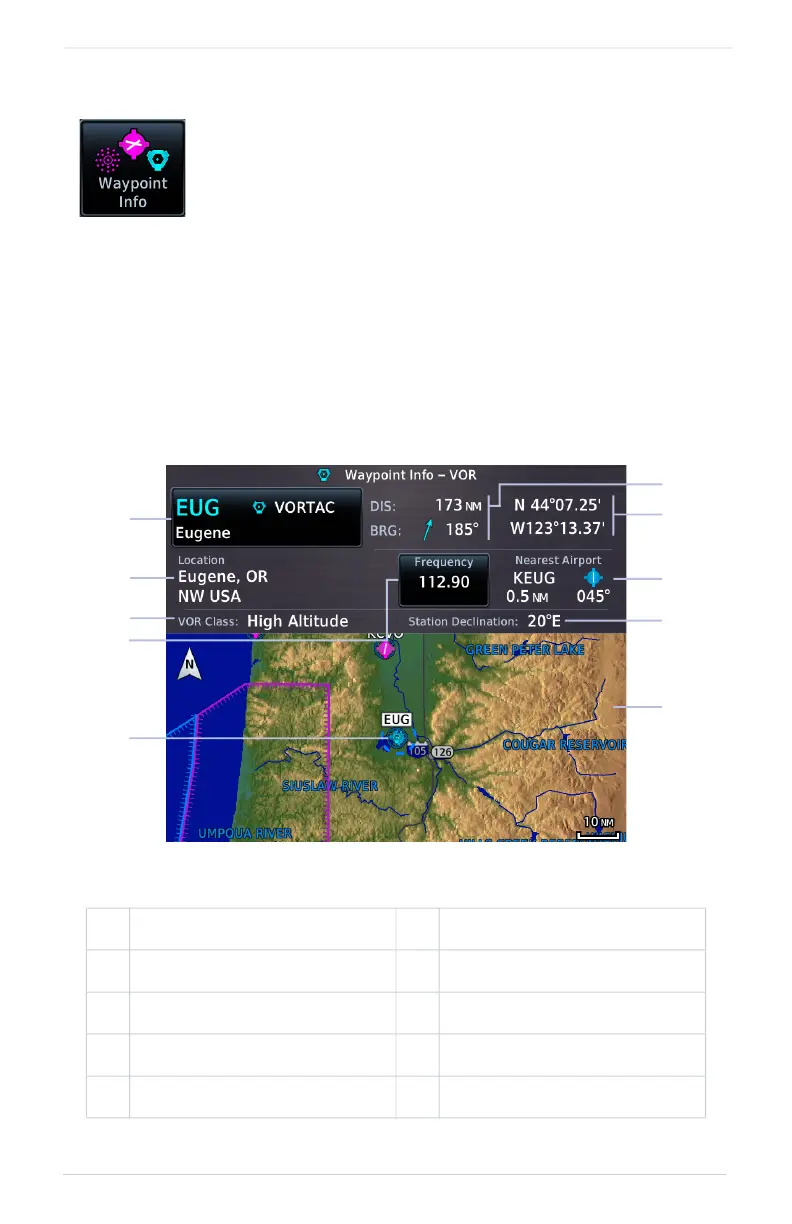

VOR Information Page
1
2
3
8
9
7
10
4
6
5
