LCD/Display Elements
9

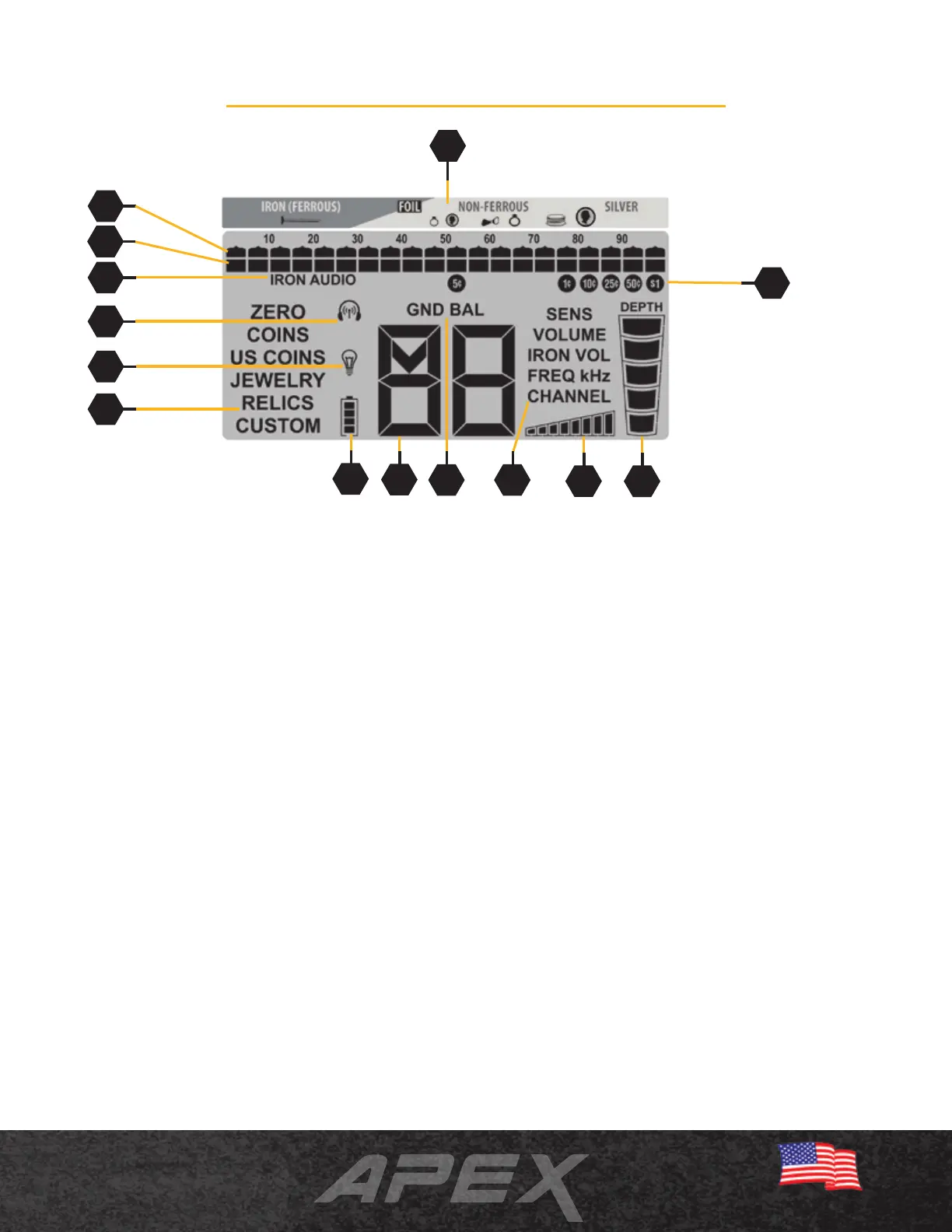

1. Target ID Legend—indicates dierent metal types
(from ferrous to non-ferrous targets).
2. Target ID Cursor—Indicates Target ID of detected
target. Audio is only produced for accepted targets.
3. Discrimination Pattern—Lighted pixel indicates
accepted targets, blank pixel indicates rejected
targets.
4. Iron Audio—Indicates Iron Audio feature is in use
when displayed.
5. Wireless headphones—Wireless icon ashes while
attempting to pair. Wireless icon is solid when unit is
paired with headphones.
6. Backlight—Indicates LCD Back Light feature is in
use when displayed.
7. Search Mode—Displays the in-use Search Mode
(i.e. US Coins, Jewelry, Relics, etc.). The mode that is
currently selected will be indicated.
8. Battery Level—Shows continuous status of battery
life. Re-charge battery when 1 segment remains.
9. Digital Target ID—Provides a value from 0 to 99 to
identify targets more precisely than the ID cursor.
Also indicates modes and adjustment levels when
altering settings.
10. Ground Balance—When shown, this indicates
detector is in Ground Balance mode.
11. Menu Control Options—Tap Menu button to scroll
through detector setting options: Sensitivity, Volume,
Iron Volume, Frequency, Channel, Backlight, and
Wireless Headphones.
12. Sensitivity—Indicates current Sensitivity setting.
13. Target Depth—Shows the depth of a coin, or a
similar sized target. Note: targets larger than a coin
may display shallower than actual depth while
targets smaller than a coin may display deeper than
actual depth.
14. U.S. Coin Icons—Indicates possible identity of U.S.
coin targets. These icons are only displayed when
detector is operating in U.S. Coins Mode.
