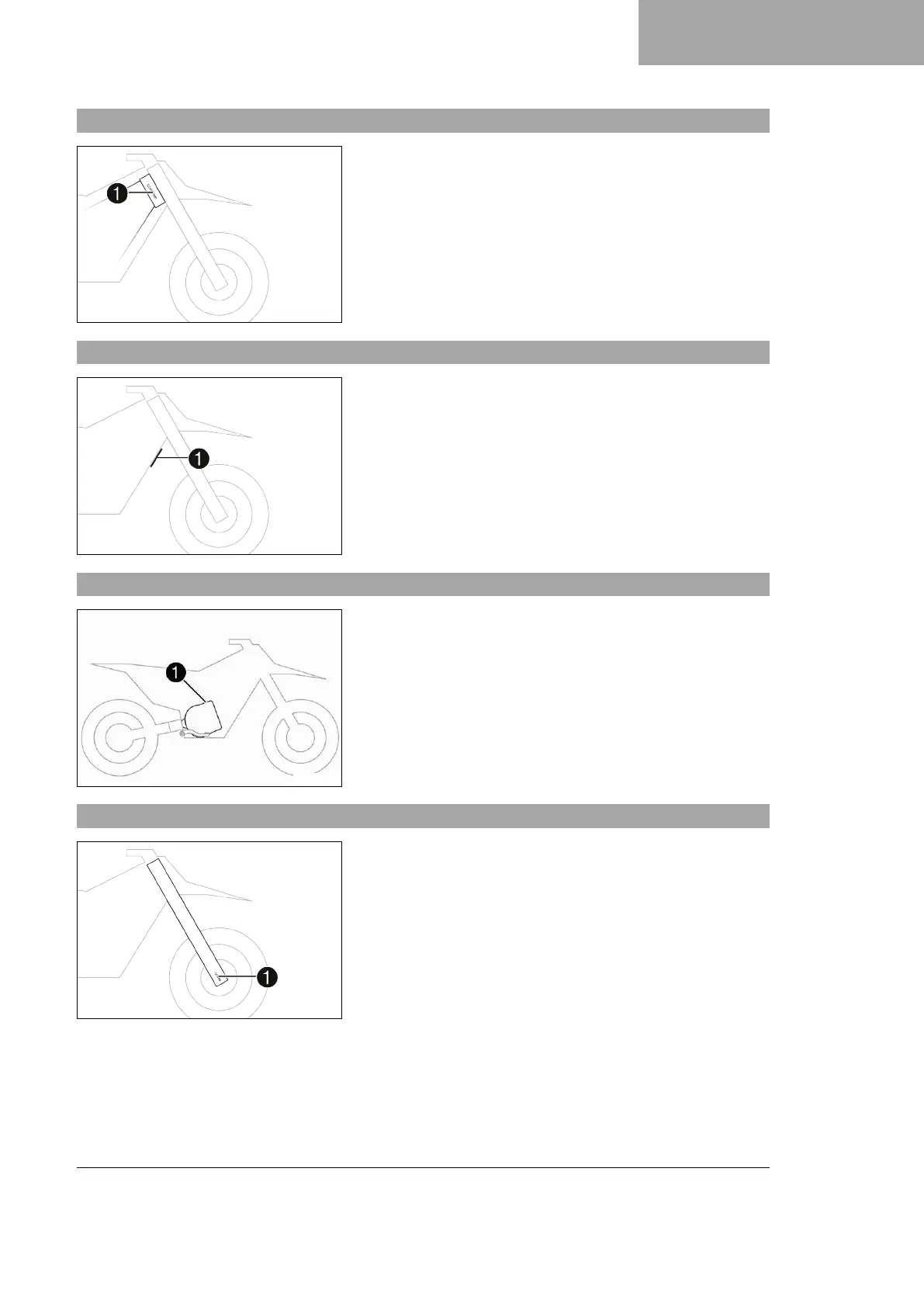

SERIAL NUMBERS 5

5.1 Vehicle identification number

401945-10

The vehicle identification number

is stamped on the right side of the

steering head.

5.2 Type label

402154-10

The type label

is located on the front frame tube.

5.3 Motor number

H03863-10

The motor number

is located on the right side of the motor below

the Powerpack LV.

5.4 Fork part number

401947-10

The fork part number

is stamped on the outside of the axle clamp.
