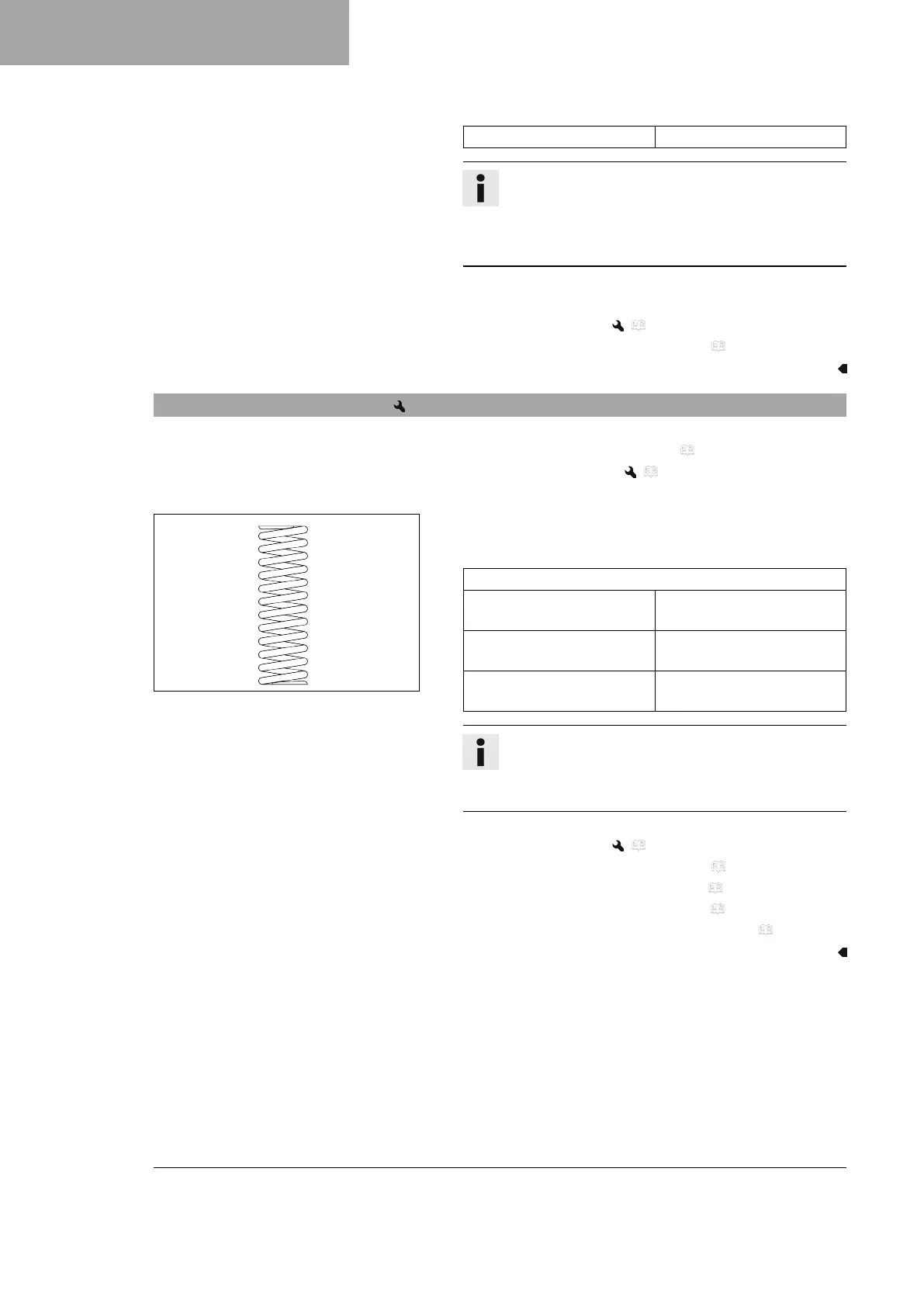

11 SUSPENSION SETTING
34
Guideline
Spring preload 3 mm (0.12 in)
Info
The spring preload is the difference between the relaxed
spring length and the tensioned spring length.
Depending on the static sag and/or the riding sag, it may be
necessary to increase or decrease the spring preload.
–
Tighten retaining ring
1
.
Finishing work
–
Install the shock absorber. ( p. 51)
–
Remove the motorcycle from the lift stand. ( p. 42)
11.11 Adjusting the riding sag
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 42)
–
Remove the shock absorber. ( p. 51)
– After removing the shock absorber, clean it thoroughly.
B00292-10
Main work
– Choose and mount a suitable spring.
Guideline
Spring rate
Weight of rider: 15 … 25 kg
(33 … 55 lb.)
25 N/mm (143 lb/in)
Weight of rider (standard):
25 … 35 kg (55 … 77 lb.)
30 N/mm (171 lb/in)
Weight of rider: 35 … 45 kg
(77 … 99 lb.)
35 N/mm (200 lb/in)
Info
The spring rate is shown on the outside of the spring.
Smaller weight differences can be compensated by changing
the spring preload.
Finishing work
–
Install the shock absorber. ( p. 51)
–
Remove the motorcycle from the lift stand. ( p. 42)
–
Check the static sag of the shock absorber. ( p. 32)
–
Check the riding sag of the shock absorber. ( p. 33)
–
Adjust the rebound damping of the shock absorber. ( p. 31)
