13 SERVICE WORK ON THE CHASSIS
52

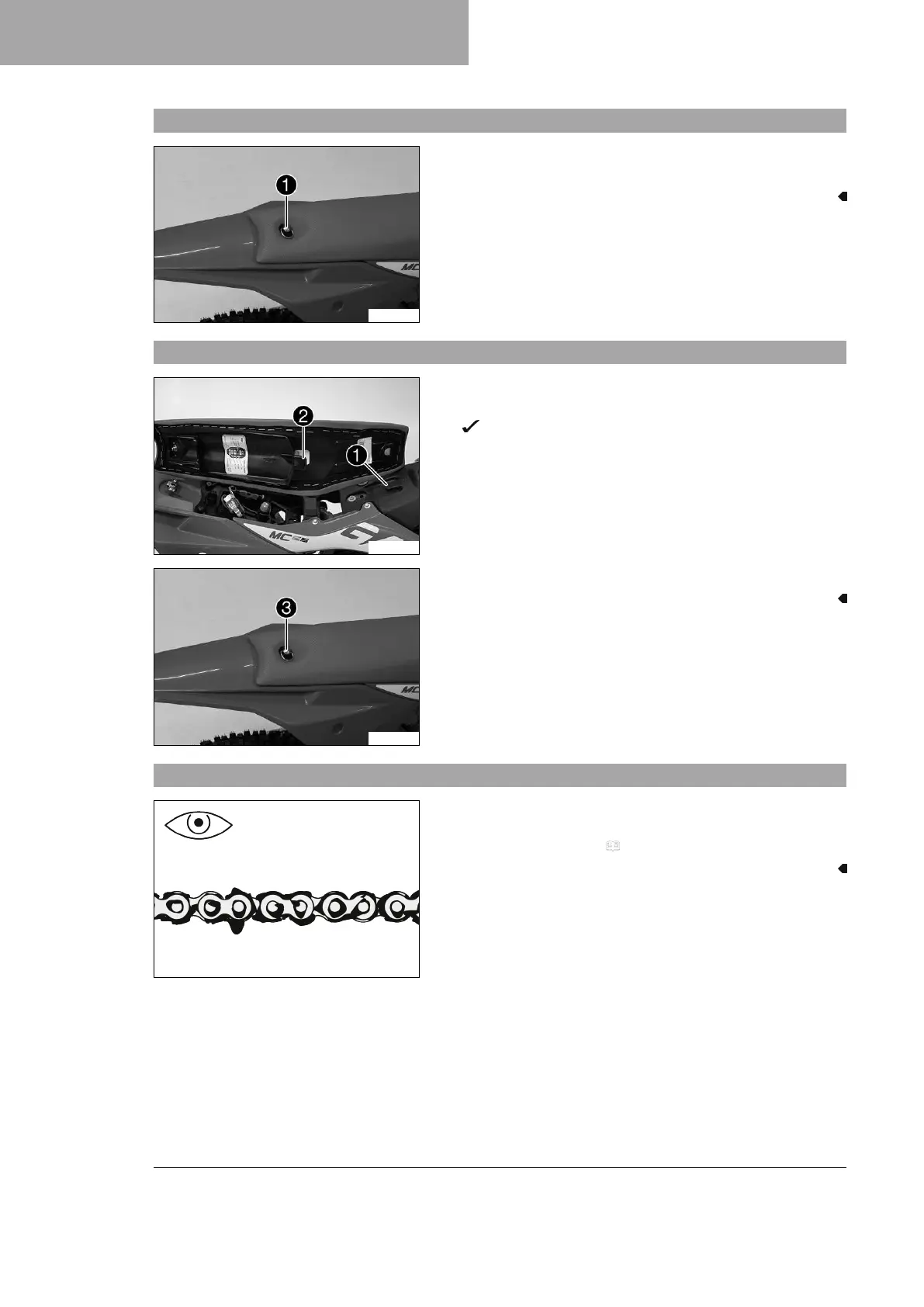

13.20 Removing the seat
M01853-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
13.21 Mounting the seat
M01854-10
–
Hook the seat onto holding lug
1
, lower the seat at the rear, and
push it forward.
Holding lug
2
hangs on the front fairing.
M01853-11
–
Close quick release
3
.
13.22 Checking the chain for dirt
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
–
Clean the chain. ( p. 53)
