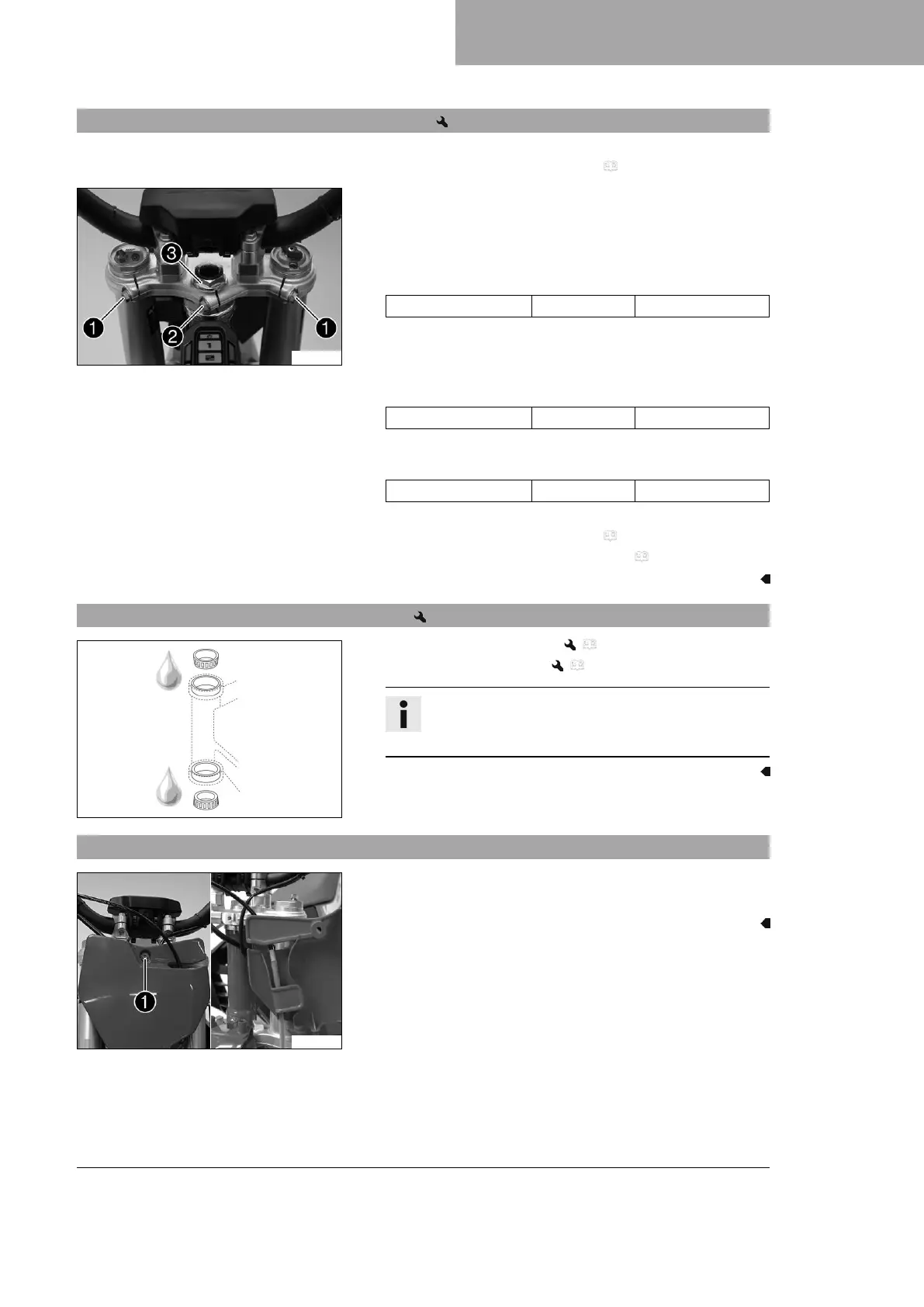

13.12 Adjusting the steering head bearing play
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 42)
M01846-10
Main work
–
Loosen screws
1
.
–
Loosen screw
2
.
–
Loosen and retighten nut
3
.
Guideline
Nut, steering head M20x1.5 10 Nm (7.4 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to
avoid stresses.
–
Tighten screw
2
.
Guideline
Screw, top triple clamp M8 20 Nm (14.8 lbf ft)
–
Tighten screws
1
.
Guideline
Screw, top triple clamp M8 20 Nm (14.8 lbf ft)
Finishing work
–
Check the steering head bearing play. ( p. 48)
–
Remove the motorcycle from the lift stand. ( p. 42)
13.13 Lubricating the steering head bearing
H02387-01
–
Remove the lower triple clamp. ( p. 45)
–
Install the lower triple clamp. ( p. 46)
Info
The steering head bearing is cleaned and lubricated in the
course of removal and installation of the lower triple clamp.
13.14 Removing the start number plate
M01847-10
–
Remove screw
1
.
– Unhook the start number plate from the brake line and remove it.
