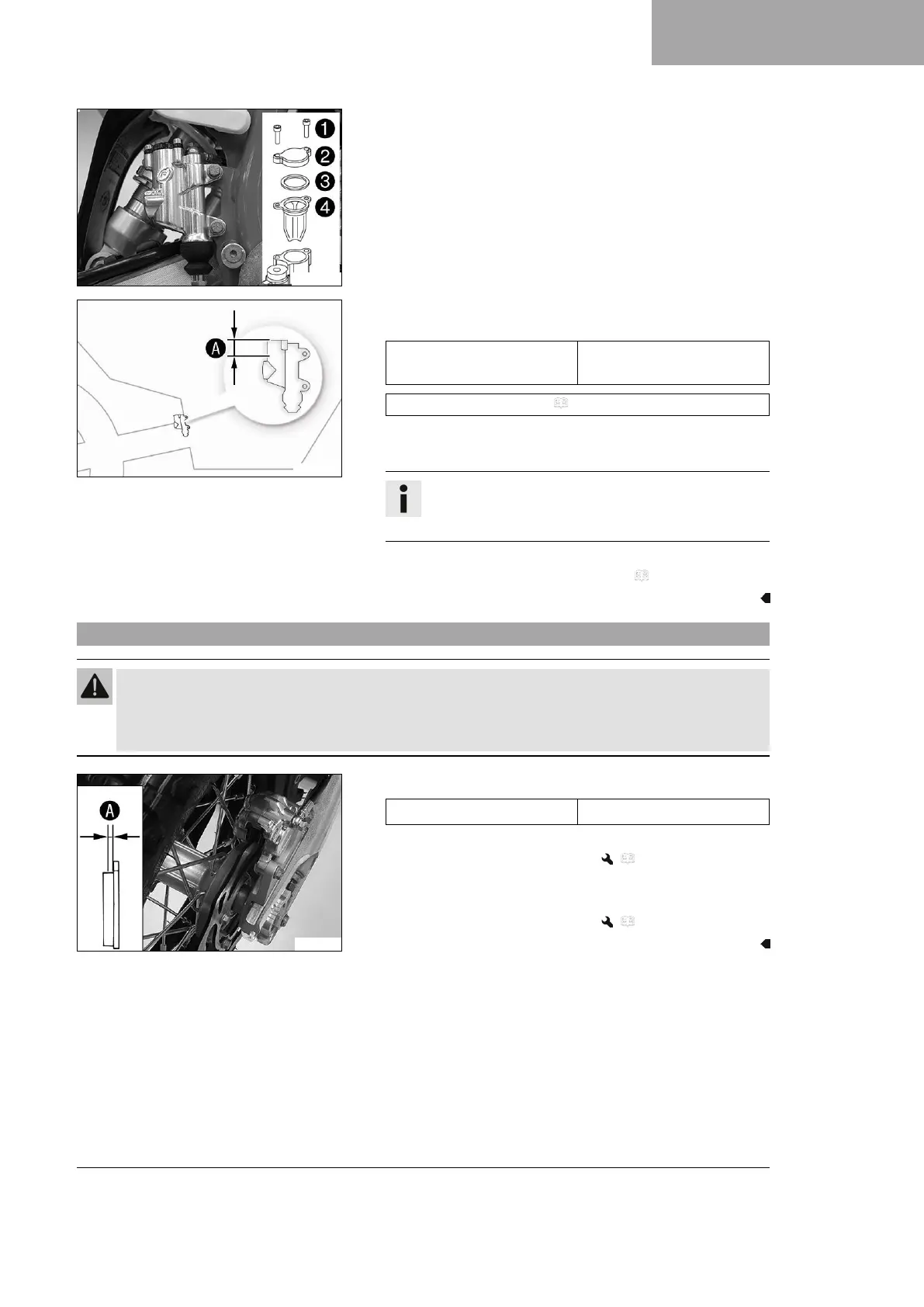

BRAKE SYSTEM 14
69
M01696-10
Main work
–
Remove screws
1
.
–
Take off cover
2
with washer
3
and membrane
4
.
H01654-10
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 93)
– Position cover with washer and membrane.
– Mount and tighten the screws.
Info
Immediately clean up any brake fluid that has overflowed or
spilled using water.
Finishing work
–
Remove the motorcycle from the lift stand. ( p. 42)
14.14 Checking the brake linings of the rear brake
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized GASGAS Motorcycles workshop
will be glad to help.)
F02204-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
–
Change the rear brake linings. ( p. 70)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
–
Change the rear brake linings. ( p. 70)
