BRAKE SYSTEM 14
65
M01858-10
–

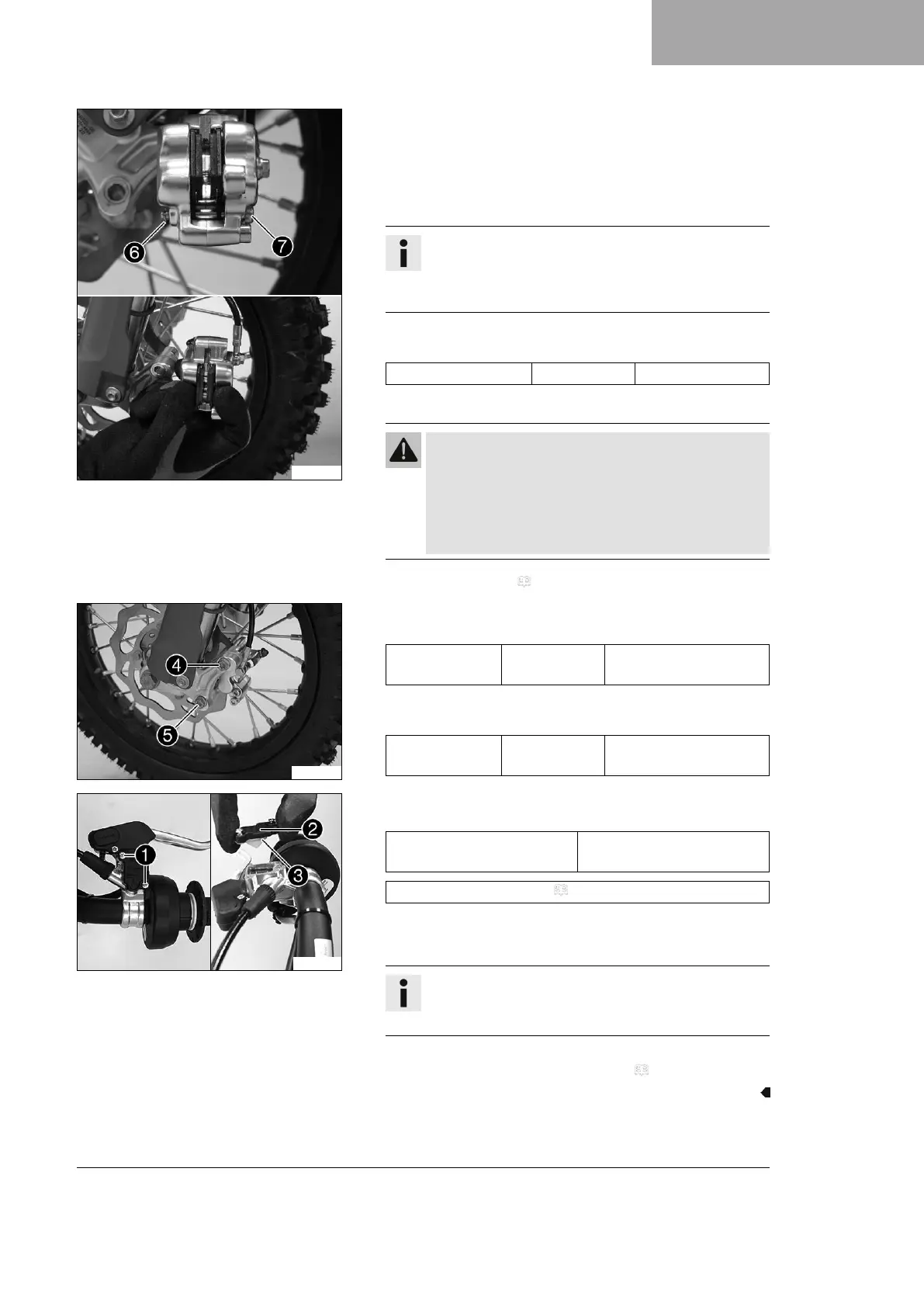

Remove lock ring
6
.
–
Remove screw
7
.
– Remove the brake linings.
– Clean the brake caliper and the brake caliper bracket.
– Position the new brake linings.
Info
Always change the brake linings in pairs.
Ensure that the brake linings are correctly positioned in the
holding spring.
–
Mount and tighten screw
7
.
Guideline
Screw, brake linings M5 8 Nm (5.9 lbf ft)
–
Mount lock ring
6
.
Warning
Danger of accidents Oil or grease on the brake discs
reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when neces-
sary.
–
Check the brake discs. ( p. 60)
M01857-10
–
Position the brake caliper, mount screw
4
, and tighten.
Guideline
Screw, front
brake caliper
M8x60 20 Nm (14.8 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
5
.
Guideline
Screw, front
brake caliper
M8x40 20 Nm (14.8 lbf ft)
Loctite
®
243™
Q00414-10
– Check the brake fluid level and correct if necessary.
Guideline
Brake fluid level below reser-
voir rim
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 93)
–
Position cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Use water to immediately clean up any brake fluid that has
overflowed or spilled.
Finishing work
–
Remove the motorcycle from the lift stand. ( p. 42)
