BRAKE SYSTEM 14
71

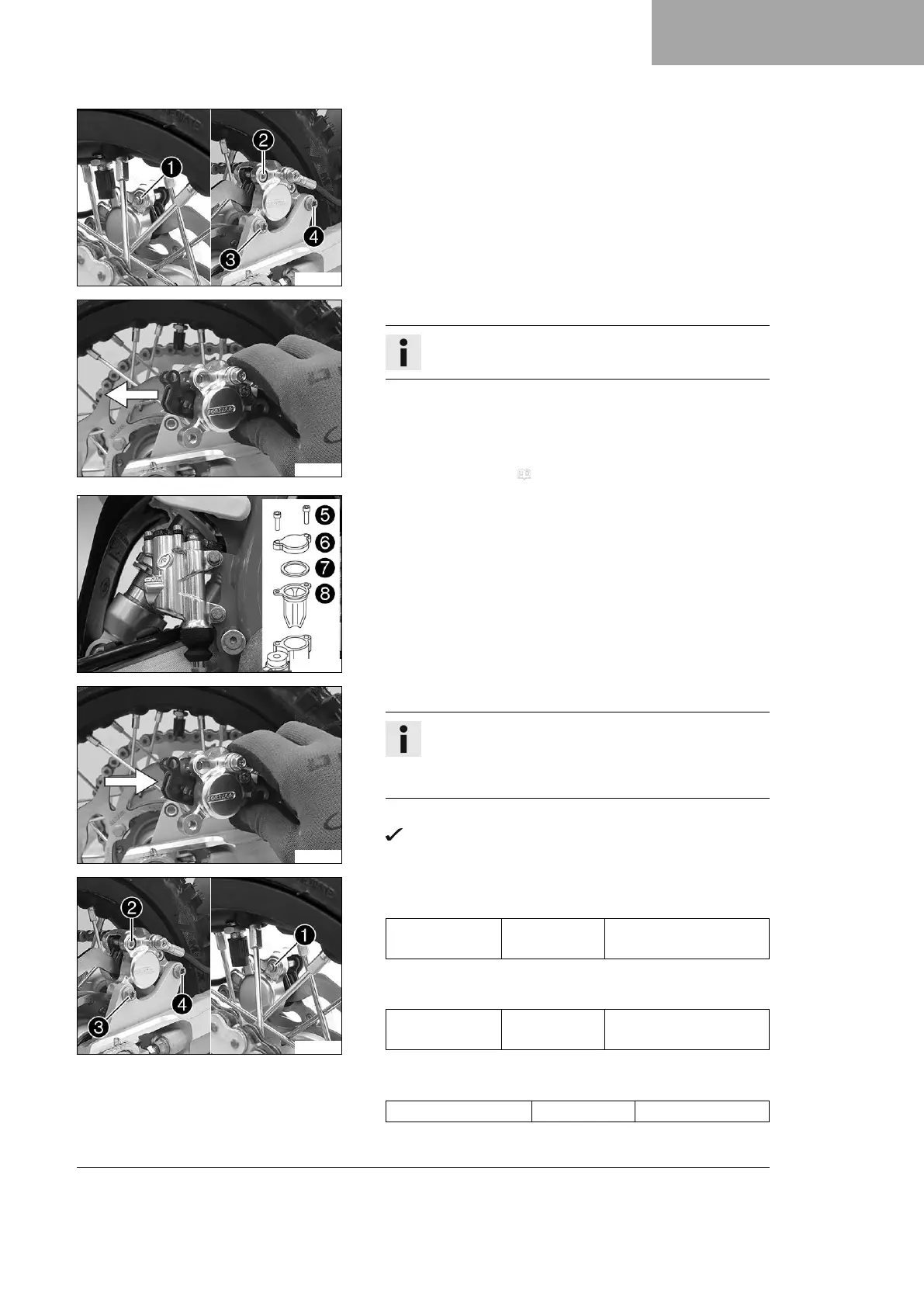

F02205-10
Main work
–
Remove lock ring
1
.
–
Remove screw
2
.
–
Remove screw
3
and screw
4
.
F02207-10
– Take off the brake caliper.
Info
Do not kink or damage the brake line.
– Remove the brake linings.
– Clean the brake caliper and the brake caliper bracket.
– Allow the brake caliper and the brake line to hang loosely to the
side.
–
Check the brake discs. ( p. 60)
M01696-11
–
Remove screws
5
.
–
Take off cover
6
with washer
7
and membrane
8
.
– Press the brake piston back into the basic position and ensure that
brake fluid does not flow out of the brake fluid reservoir, extracting
some if necessary.
F02207-11
– Position the new brake linings.
Info
Always change the brake linings in pairs.
Ensure that the brake linings are correctly positioned in the
holding spring.
– Position the brake caliper on the brake disc.
The brake linings are correctly positioned.
F02206-10
–
Mount and tighten screw
3
.
Guideline
Screw, rear brake
caliper
M6x16 10 Nm (7.4 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
4
.
Guideline
Screw, rear brake
caliper
M6x40 10 Nm (7.4 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
2
.
Guideline
Screw, brake linings M5 8 Nm (5.9 lbf ft)
–
Mount lock ring
1
.
