176
Chapter 7: Adding or Replacing Components
www.gateway.com

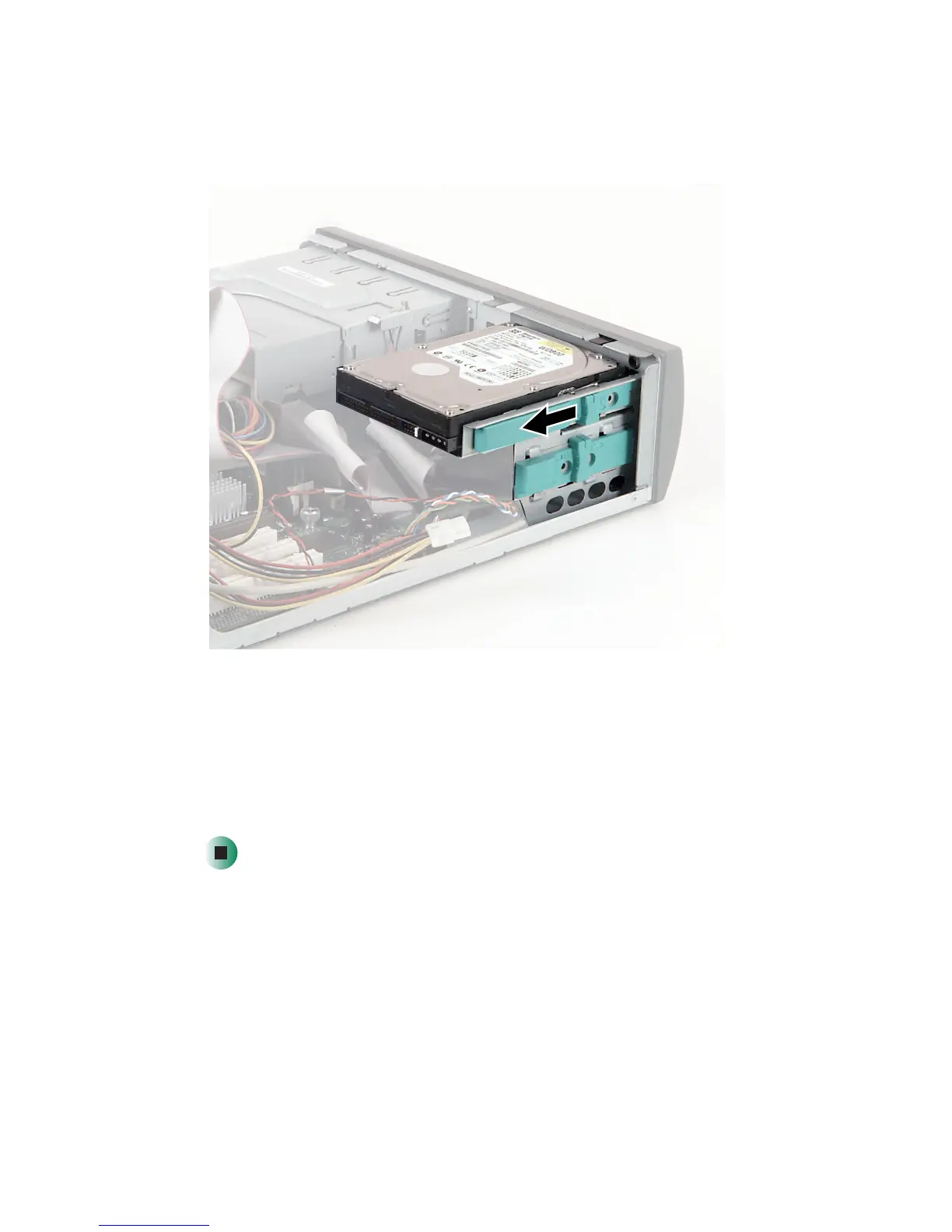

8 Slide the release lever toward the back of the case.
9 Reconnect the drive cables using your notes from Step 3. The red-striped
edge of the data ribbon cable indicates Pin 1 and corresponds with Pin 1
on the drive (typically on the side farthest from the power supply
connection). See the drive documentation for further instructions.
10 Close the case by following the instructions in “Closing the case” on
page 161.
