5 Remove the two drive retention screws.
6 Slide the drive forward and out of the drive bay.
7 Slide the new drive into the drive bay, line up the screw
holes on the drive bay with the screw holes on the drive,
then replace the two drive retention screws.
8 Reconnect the drive cables using your notes from Step 3,
or according to the manufacturer’s instructions.
9 Replace the front bezel by following the instructions in
“Replacing the front bezel” on page 48.
10 Replace the side panels by following the instructions in
“Replacing the side panels” on page 48.
Important
Make sure that the optical drive’s screw holes are lined up with the
correct holes in the drive bay. If the drive screws are mounted through
the wrong holes, the front of the drive will protrude too far out the front
of the case for the front bezel to be reinstalled.

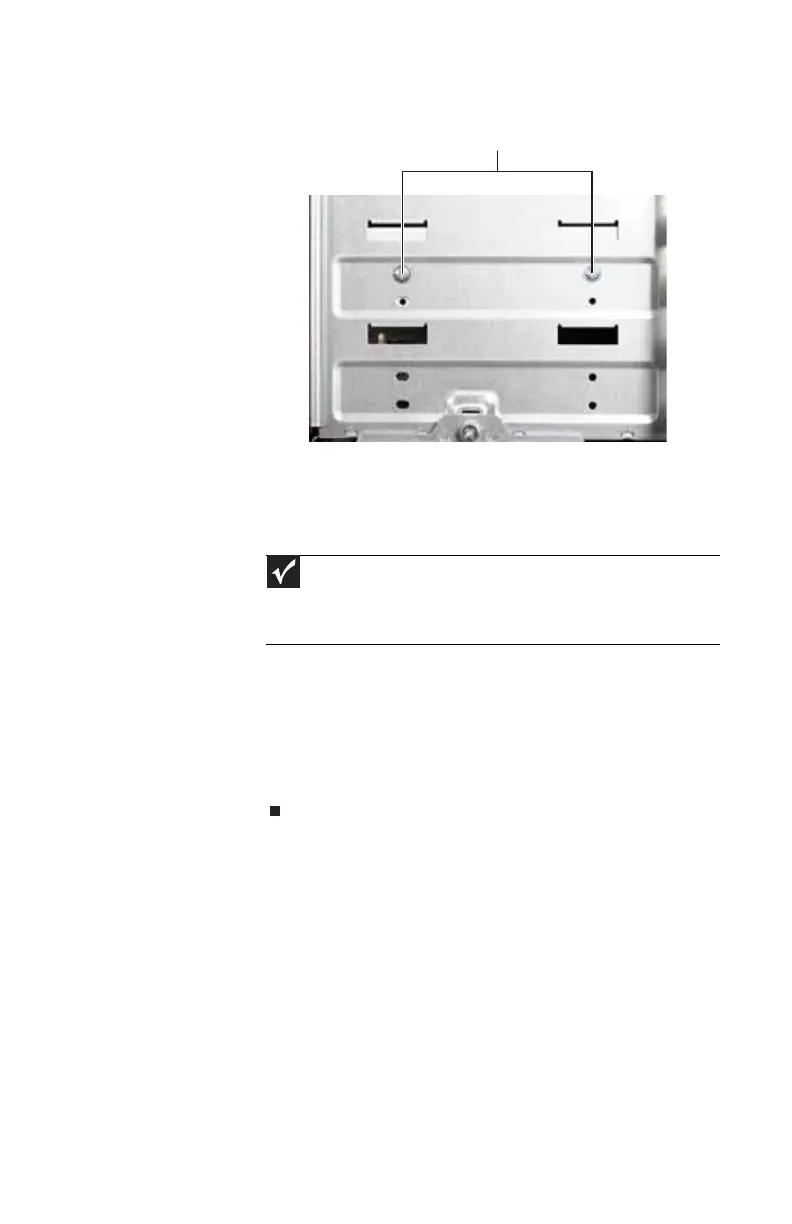

Drive retention screws
