GBC Magnapunch 2.0 User Manual

Page 3-1
Magnapunch 2.0 – Installation and Operating Instructions
Item Specification
Punch Pattern
Plastic Binding•
Plastic Color Coil, GBC and •
Industry standard 4:1 (C4)
Plastic Color Coil, 5:1 (C5)•
Twin Loop Wire, 2:1 (W2)•
Twin Loop Wire, 3:1 (W3)•
VeloBind•
SureBind•
3 or 4 Hole Binding•
Maximum number of sheet punch capacity for 20 lb. (75 g/m
2
) bond.
39
29
29
29
34 (round) 29 (square)
34 (round) 29 (square)
49
49
34
Dimensions
Width•
Height•
Depth•
18.5 in. (47.0 cm)
12.0 in. (30.5 cm)
20.0 in. (50.8 cm)
Weight
Machine•
Shipping•
94 lbs. (42.4 kg)
116 lbs. (52.6 kg)
Electrical Requirements
Fuse (F1 T1A 250V)•
Voltage•
Current•
Power•
U.S. Receptacle•
US Model
20A, 250V
115 VAC
5.6 Amperes maximum, 50/60
Hz
644 W
NEMA 5-15R
Refer to the nomenclature
plate located on the rear of the
Magnapunch 2.0 for the specific
electrical rating applicable to the
unit.
Europe Model
20A, 250V
230 VAC
3.5 Amperes maximum, 50/60 Hz
805 W
YP-24 R
Refer to the nomenclature plate located
on the rear of the Magnapunch 2.0 for the
specific electrical rating applicable to the
unit.
Noise Level 94dB when punching maximum pages of media.
Under 2003/10/EC on the minimum health and safety requirements regarding
the exposure of workers to the risks arising from physical agents (noise), the
following sound pressure levels require the following action by employers:
80dB employers must make hearing protection available to workers. •
85dB a hearing protection warning sign must be displayed. •
87dB individual hearing protection shall be used by workers.•
Motor 1/4 HP

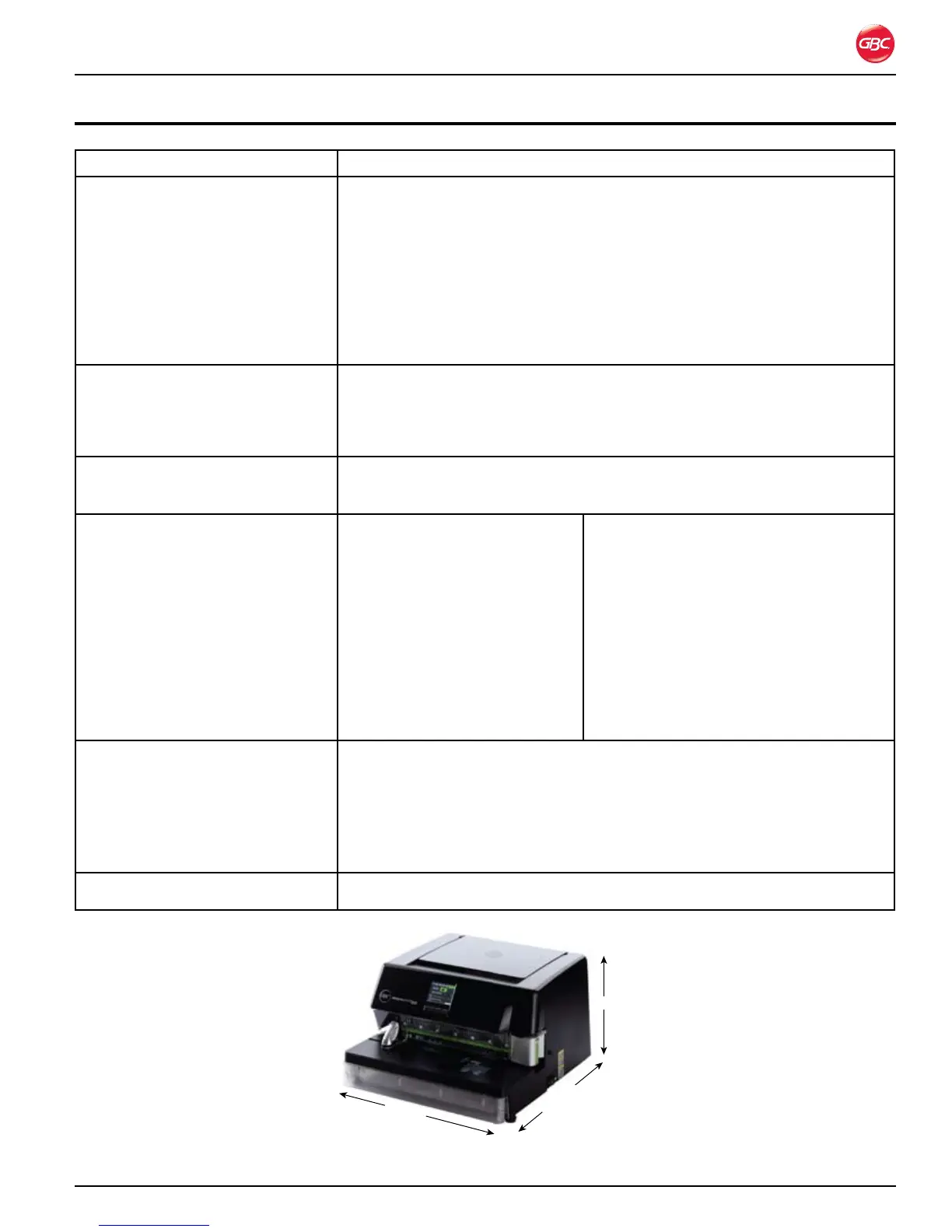

3. speCifiCations
Dimension Reference.Figure 2.
Width
Depth
Height
Height
Width
Depth

GBC Magnapunch 2.0 Specifications

General

Brand	GBC
Model	Magnapunch 2.0
Category	Binding Machine
Language	English
