Magnapunch 2.0 – Installation and Operating Instructions

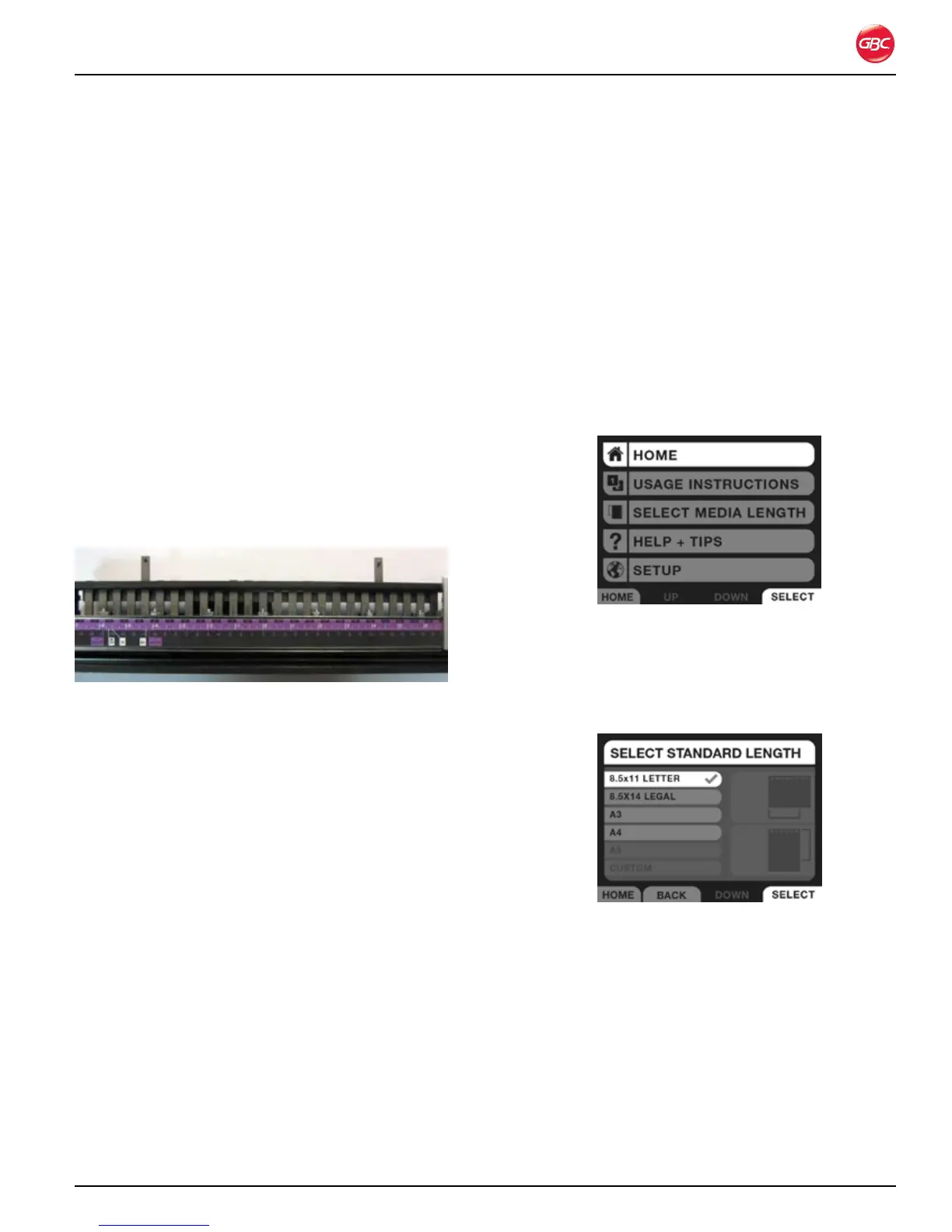

Re M o v i n G pU n C h pi n s
You can easily remove and replace punch pins
for proper punching some combinations of paper
sizes and punching patterns. The Magnapunch 2.0
helps you determine if and when punch pins need
to be removed. Refer to “Job Setup”, to set up the
Magnapunch 2.0. Each punch pin is labeled with a
number to help you identify the recommended pin to
be pulled.
NOTE: Each Die Set comes with a magnetic pin
retainer. Make sure this retainer is in place after
adjusting, removing, and inserting pins. Do not throw
this retainer away.
To remove punch pins:
Remove the magnetic Pin Retainer.1.
Firmly grasp the top of the selected Punch Pin 2.
and pull upward. The Punch Pin will slide out of
the Die Set.
Removing Punch Pins.Figure 25.
Carefully store the removed Punch Pin(s) for 3.
future use.
Replace the magnetic Pin Retainer.4.
To replace punch pins:
Remove the magnetic Pin Retainer.1.
Insert the Pins into the correct holes.2.
Replace the magnetic Pin Retainer.3.
Jo B se t U p
Before beginning a punching job, ensure the
Magnapunch 2.0 is setup properly. Use the LCD user
interface (UI) to guide you through the setup process.
For common paper sizes, use the marking on the Die
Set.
Us i n G t h e lCd Us e R in t e R f a C e
To set up the Magnapunch 2.0 for a job:
Insert the proper Die Set for the punch pattern 1.
required for the job. See “Punching Operation”.
Press 2. MENU on the Home screen.
Home Screen.Figure 26.
Scroll down and select 3. SELECT MEDIA
LENGTH.
Select one of the standard paper sizes or enter a 4.
custom paper size based on your application.
Select Standard Length ScreenFigure 27.
5.
