GBC Magnapunch 2.0 User Manual

Page 5-3
Magnapunch 2.0 – Installation and Operating Instructions
ta B l e t o p tR i G G e R
The Tabletop Trigger is incorporated into the Edge
Guide. The Tabletop Trigger is used to automatically
punch without the use of the Foot Pedal. The
Tabletop Trigger is activated on the Home screen of
the User Interface.
Push the stack of media into the Throat and then
slide to the left against the Trigger to activate the
punch.
pU n C h i n G ta B l e
The Punching Table is where you lay the media to be
punched. Place the media on the Punching Table,
push the media into the Throat, and then slide to the
left.
Ch i p dR a W e R
The Chip Drawer collects the paper chips from
the punched media. When the Chip Drawer is full,
a message on the LCD UI alerts you to empty the
drawer.
die se t
The Magnapunch 2.0 offers thirteen different Die
Sets to match the punching requirements for your
documents. To change a Die Set, refer to “Changing
the Interchangeable Die Sets”.
fo o t pe d a l
The Foot Switch is activated on the Home Screen.
When media is inserted into the Punching Throat
and pushed against the Edge Guide, press the Foot
Pedal to activate the punch.

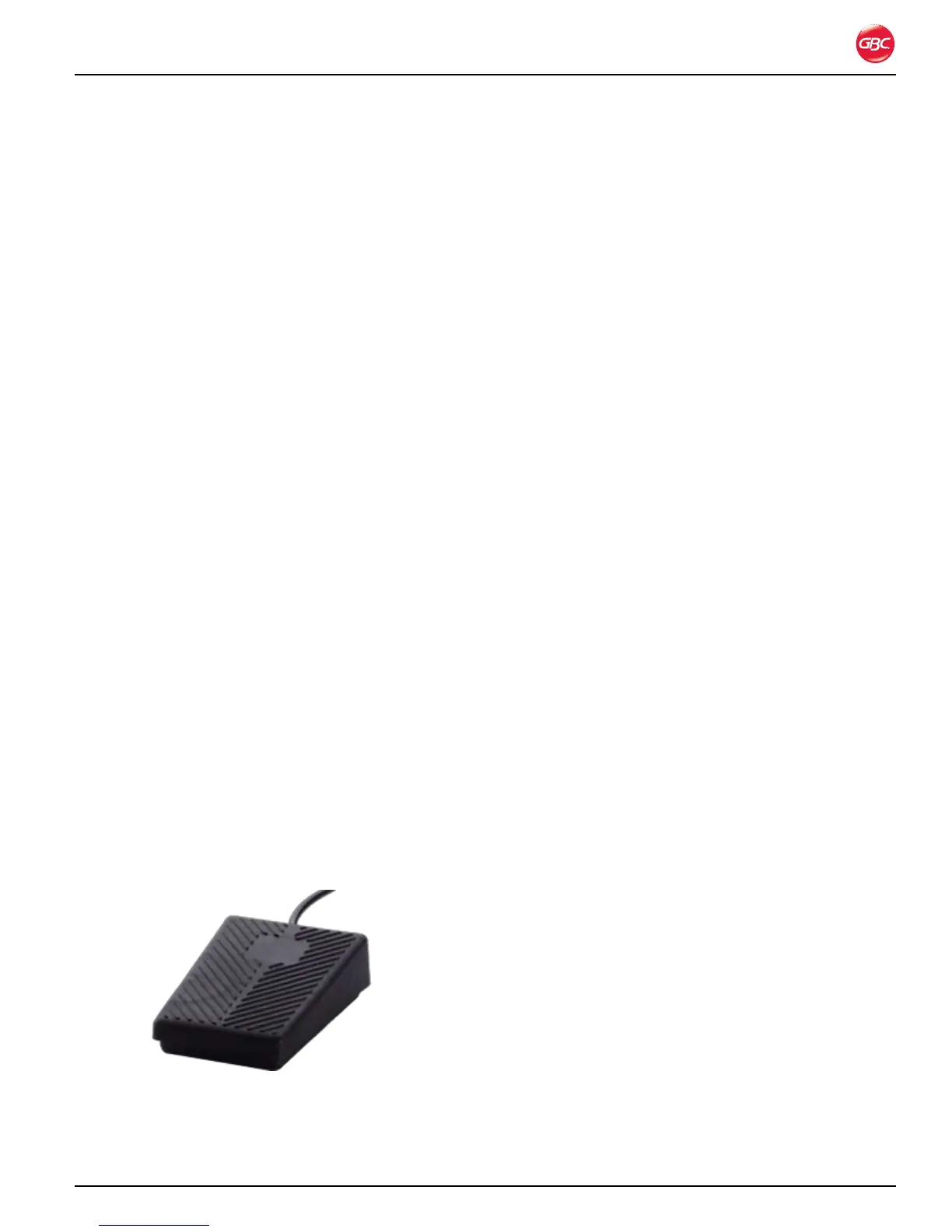

Foot Pedal.Figure 10.
