Page 4-1
Magnapunch 2.0 – Installation and Operating Instructions
WARNING: Do not attempt to service or repair
the Magnapunch 2.0. Failure to observe this warning
could result in severe personal injury or death.
Disconnect the plug from the receptacle and contact
GBC Technical Service when one or more of the
following has occurred.
The power supply cord or attachment plug is •
damaged.
Liquid has been spilled into the Magnapunch •
2.0.
The Magnapunch 2.0 is malfunctioning.•
The Magnapunch 2.0 does not operate as •
described in these instructions.
GBC te C h n i C a l se R v i C e
United States
1-800-723-4000
Canada
1-800-463-2545
Mexico
(5525) 1500-5741
Other Sources
For service facilities in other regions, please visit:
www.gbcconnect.com/contact_us.aspx
Also use your mobile phone to scan the QR code
on the side of the Magnapunch 2.0 for a list of
authorized service providers.
pR i o R t o in s t a l l a t i o n
Inspect the packaging and Magnapunch 2.0 for
damage. Shipping damage should be brought to the
immediate attention of the delivering carrier.
The Magnapunch 2.0 weighs 94 lbs. (42.4 kg). Two
people are required to lift and move the punch.
in s t a l l a t i o n
To unpack the Magnapunch 2.0:
Cut the plastic shipping straps and the packing 1.
tape.
Remove the Magnapunch 2.0 from the shipping 2.
carton. Use the cut outs in the cardboard base
pad to indicate where to place your hands.
To set up the Magnapunch 2.0 for the first time:
Place the Magnapunch 2.0 on a stable flat 1.
surface capable of supporting the weight of the
Magnapunch 2.0. An additional work surface
near the Magnapunch 2.0 is recommended for
items to be punched.
The Magnapunch 2.0 should be located near the 2.
electrical power with sufficient space behind and
above it to allow for ventilation. Adequate space
above the punch is required to open the top lid
and for staging the paper to be punched.
Connect the attachment plug provided with the 3.
Magnapunch 2.0 to a suitably grounded outlet
only. Avoid connecting other equipment to the
same branch circuit to which the Magnapunch
2.0 is connected, as this may result in nuisance
tripping of circuit breakers or blowing fuses.
Connect the Foot Pedal to the rear of the 4.
Magnapunch 2.0 and place the Foot Pedal on the
floor within easy reach of your foot.
te s t i n G
After the Magnapunch 2.0 has been properly
installed, it must be tested to ensure proper
operation.
Notes:
The first time the Magnapunch 2.0 is •
powered-up, a setup screen appears. Select
the language and then measurement units.

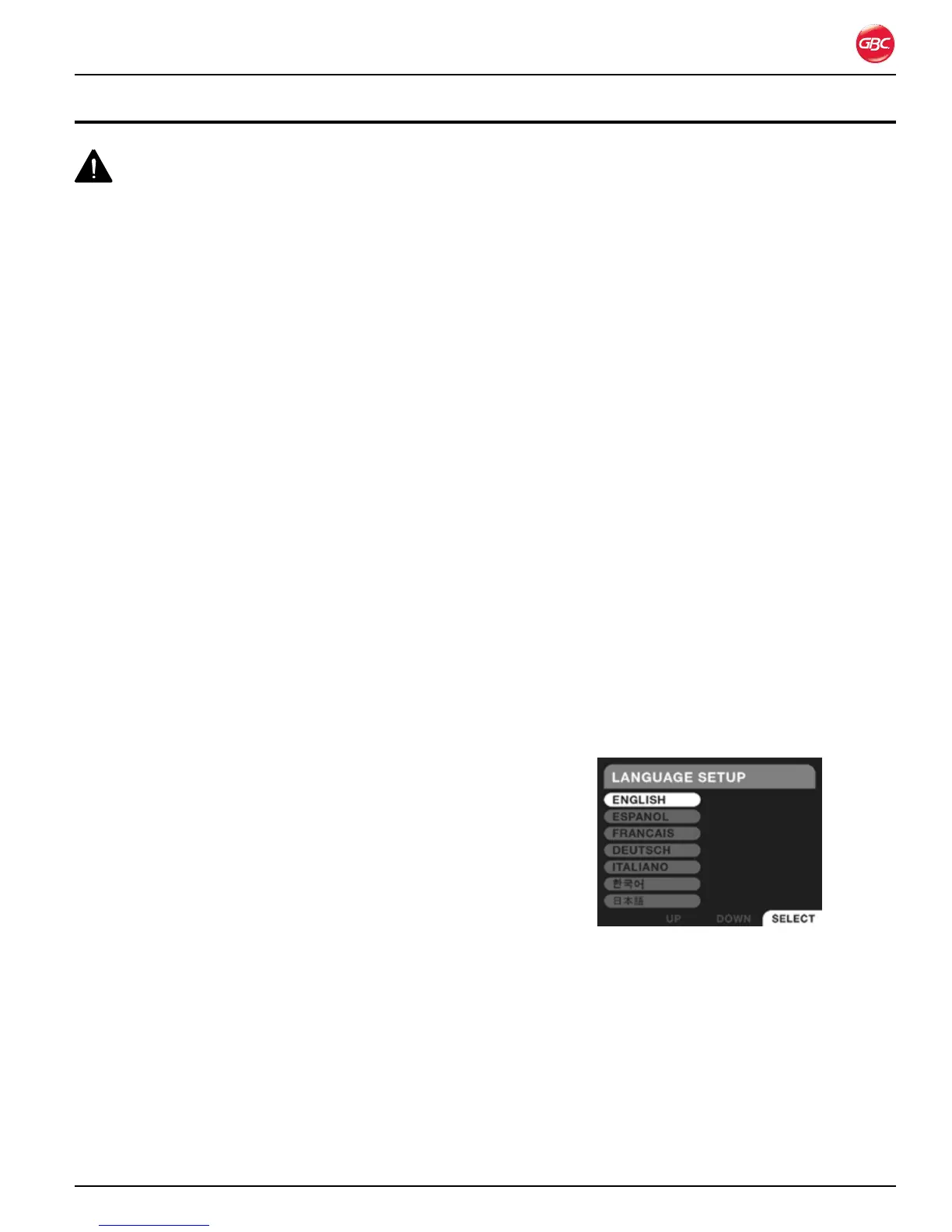

Language setup screen.Figure 3.
A Die Set must be installed before running the •
Magnapunch 2.0.
To test the Magnapunch 2.0:
Punch 10 sheets of 20 lb. (75 g/m1.
2
) bond paper
in one lift.
Punch five sheets of 20 lb. (75 g/m2.
2
) bond paper
to check for a clean hole punch.
If using a PB Die Set, Punch 10 sheets of 20 lb. 3.
(75 g/m
2
) bond paper at each back gauge setting
to ensure three distinct positions.
4. in s t a l l a t i o n
To Next Page
