To reset the job cycles count:
On the Home screen, scroll to1. JOB CYCLES.
Press 2. SELECT.

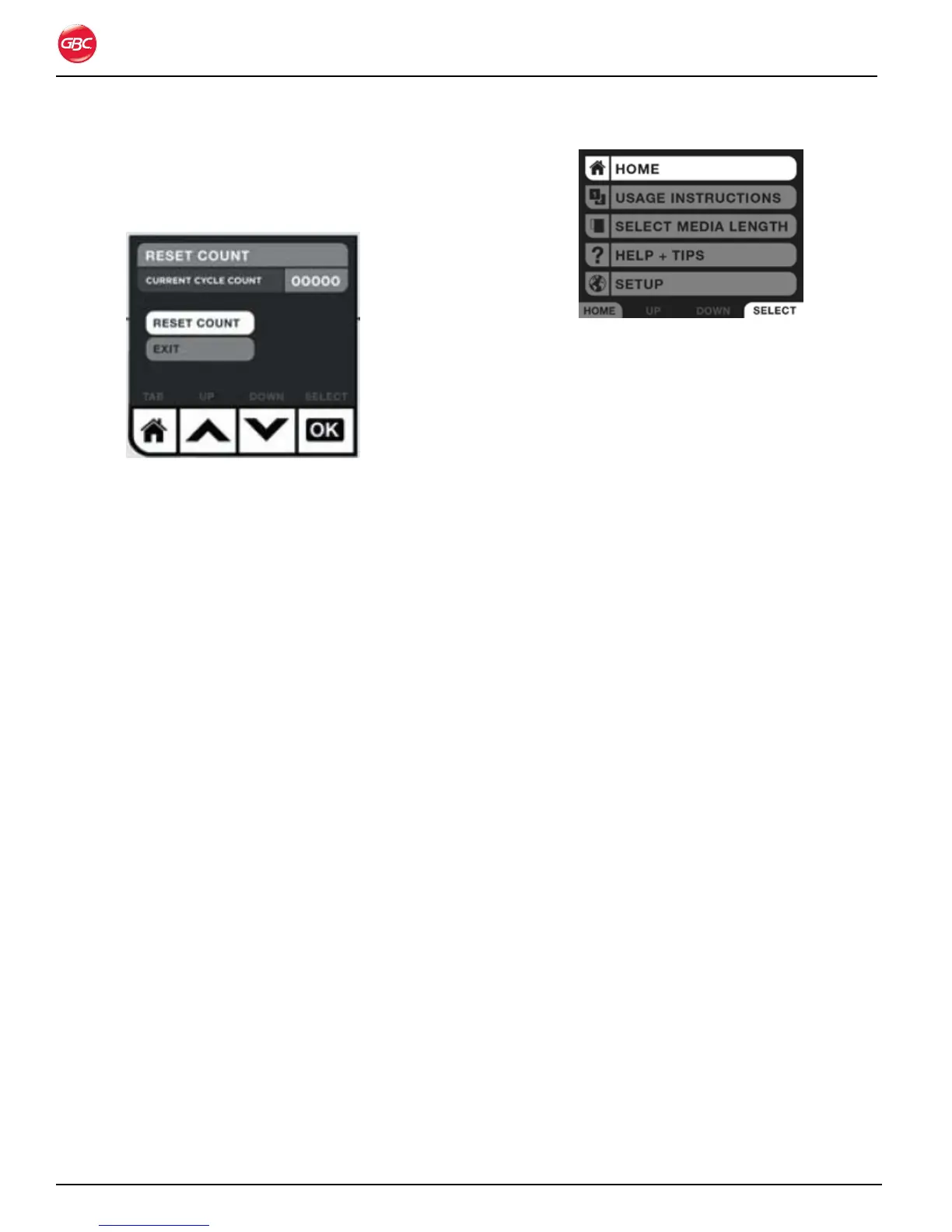

Job Cycles Screen.Figure 16.
Scroll to 3. RESET COUNT.
Press 4. SELECT.
Press 5. HOME to return to the Status menu.
Die Indicator
The Die Indicator displays which Die Set is currently
in the Magnapunch 2.0. The Magnapunch 2.0 will
report one of the following errors if the Die Set was
not recognized, missing, or not properly inserted.
Read error, punch operable• Somehow
layout Read error, punch operable = die is not
loaded properly but the system did not read
the bar code and recognize die pattern.
No die loaded, punch inoperable• No die
loaded, punch inoperable = die missing or not
loaded completely.
Refer to “Troubleshooting” for information on how to
resolve these issues.
Chip Drawer Status
The indicator displays how full the Chip Drawer is.
An ERROR is displayed when the drawer is nearly full
and needs to be emptied.
If the Chip Drawer is missing, the indicator displays
red circles as an error code.
Me n U
Use the Menu screen to access other key functions
of the Magnapunch 2.0. The Menu screen is
accessed from the Home screen. While on the
HOME screen, press MENU.
Menu Screen.Figure 17.
Navigate to any of the options by using UP and
DOWN. When the Menu option you would like to
choose is highlighted, press SELECT.
Home
Select HOME to return to the Home screen. See
“Home Screen”.
Usage Instructions
Select USAGE INSTRUCTIONS to go to that screen.
See “Usage Instructions”.
Select Media Length
Select SELECT STANDARD LENGTH to go to that
screen. See “Usage Instructions”.
Help + Tips
Select HELP + TIPS to access Help screens. See
“Help + Tips”.
Setup
Select SETUP to go to the Setup screens. See “First
Time Setup”.
Us a G e in s t R U C t i o n s
Use the Usage Instructions screen to access
instructions on the operation and set up of the
Magnapunch 2.0. Some screens are animated and
self-explanatory, which show how to set up the
Magnapunch 2.0.
To access the Usage Instructions screen, press
MENU. Scroll to an option and press SELECT.
