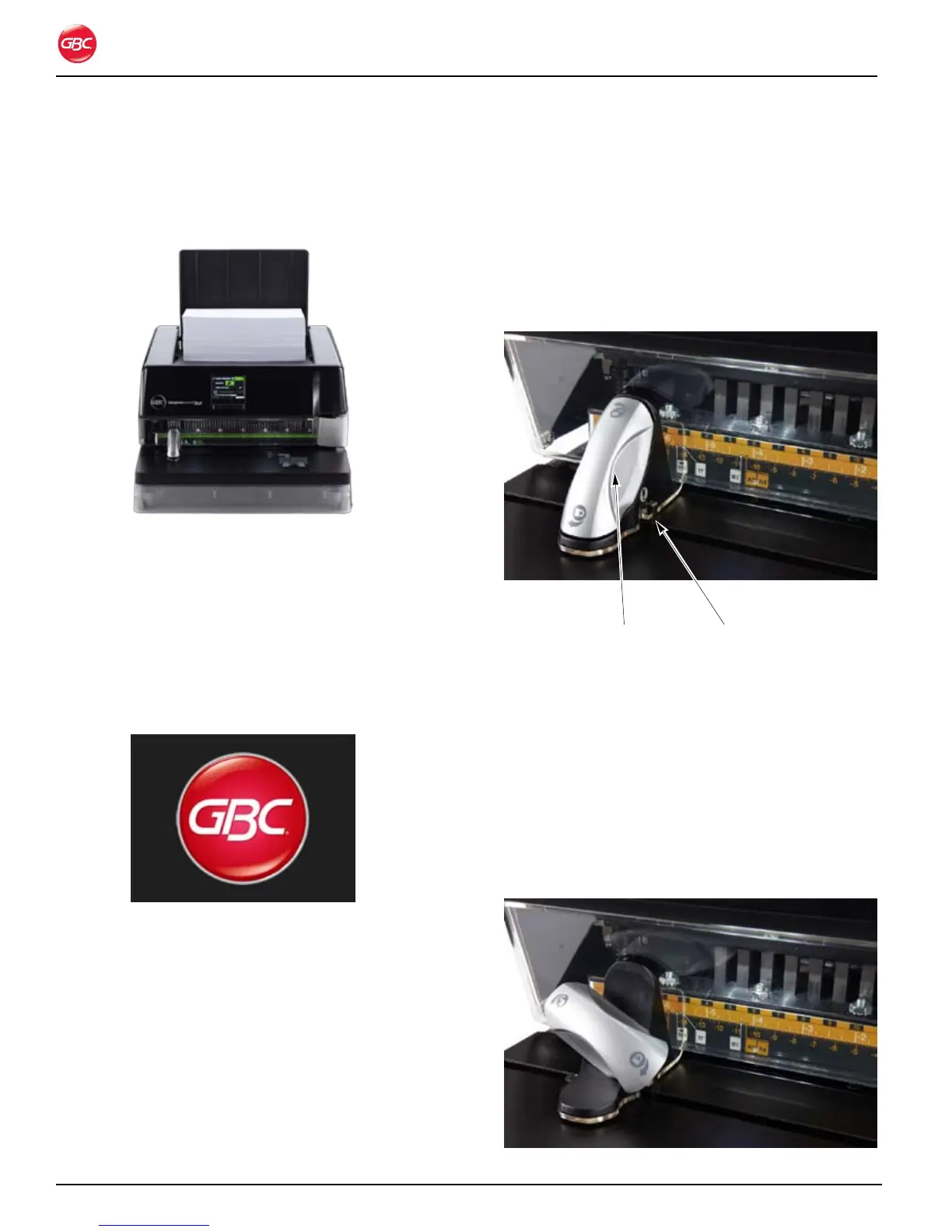

Magnapunch 2.0 – Installation and Operating Instructions
Page 5-2
li f t pi C k e R
Raise the lid of the Lift Picker to stack media that has
been punched or that is to be punched.
Magnapunch 2.0 with Media in Lift Picker.Figure 6.
Us e R in t e R f a C e
The User Interface (UI) consists of an LCD and four
buttons below the LCD. The LCD displays system
messages and provides access to operational
functions. The push buttons below the LCD are used
to navigate through the menus, select items, and
commit commands.
Start Up Screen.Figure 7.
lCd
The LCD provides continuous status of the
Magnapunch 2.0 and includes step by step
instructions on how to use your Magnapunch 2.0.
pU s h BU t t o n s
The Push Buttons relate to the commands at the
bottom of the LCD. The action of the button may
change depending on the menu on the LCD.
ed G e GU i d e a n d ta B l e t o p
tR i G G e R
Edge Guide and Tabletop Trigger.Figure 8.
ed G e GU i d e
The Edge Guide sets the position for a variety of
punching patterns and paper sizes.
Turn the Edge Guide handle 1/4 turn
counter-clockwise to unlock. Move the Edge Guide
to line up with the desired setting on the Die Set and
then turn the handle clockwise 1/4 turn to lock the
Edge Guide in place.
Edge Guide Unlocked.Figure 9.
Edge Guide
adjustment handle
Tabletop Trigger
