GCC Technologies Expert 52 - Media Loading

Expert 52 User Manual
Installation
2-10
Figure 2-13
Figure 2-15 Figure 2-16
Figure 2-14

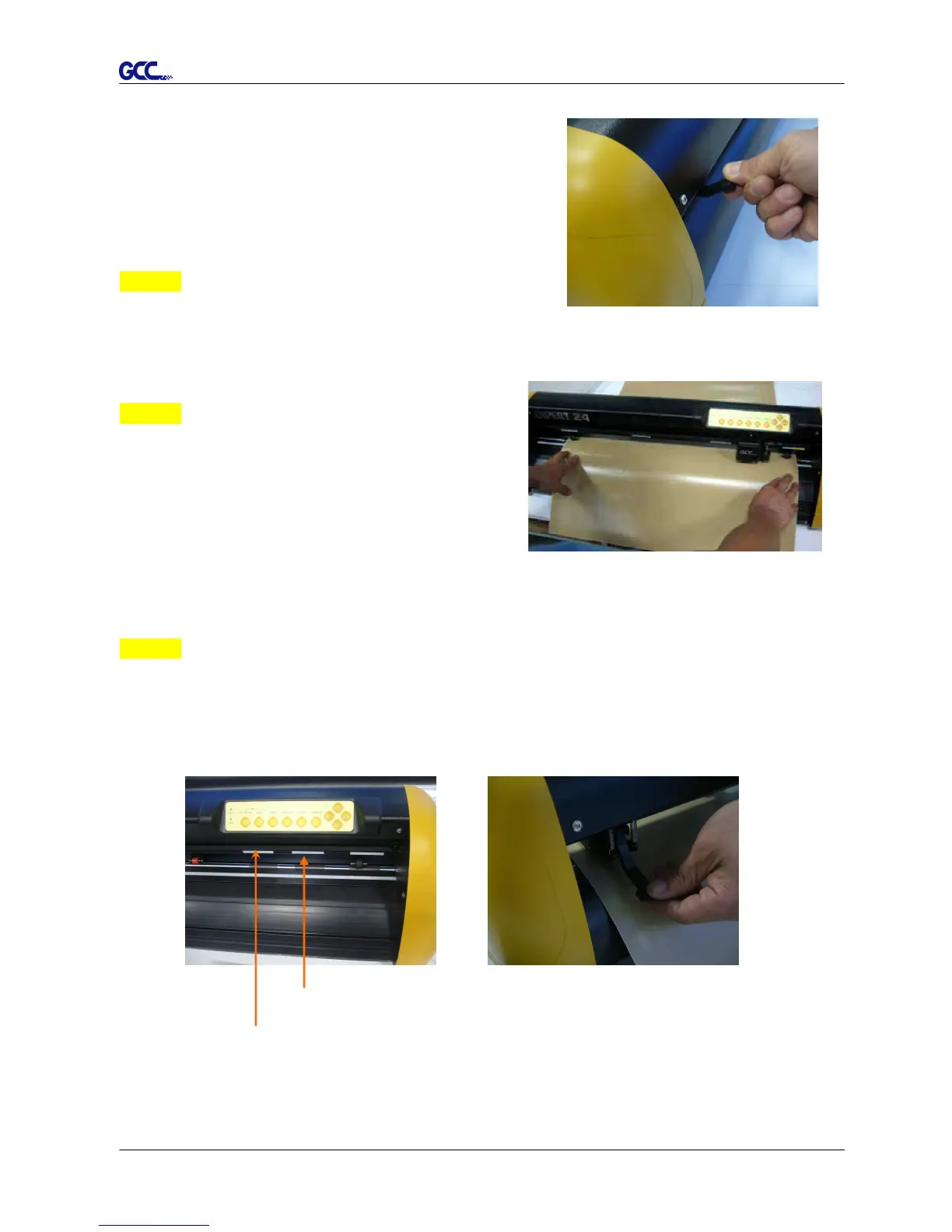

2.5 Media Loading
2.5.1 Loading the Sheet Media
To load the media properly, please follow the
procedures below:
Step 1
Lift the 2 levers at the back side of the cutter to lift the
pinch rollers ( Figure 2-13 ).
Step 2
Load your media on the platen and slide it under
the pinch rollers from either the front side or the
backside. The alignment rulers on the platen
extension will help you to adjust the media
precisely ( Figure 2-14 ).
Note: Expert 24 serves as an illustration here.
Step 3
Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must be
positioned above the grid drum. The stickers on the main beam show the position of the grid
drums (Figure 2-15).
Stickers
