2.2 Stand Installation
Please follow the procedures below for assembling the stand.
Step 1 Please examine the supplied items in the accessory box of the stand carton
before you install:
1 Left side vertical stand
1 Right side vertical stand
1 Support for left side
1 Support for right side
1 Stand Beam
2 Bottom Stands with wheels
2 Sliding brackets for paper take up
1 Hex Wrench (M5)Φ4
28 Socket flat head screws(M6*12L)
1 Installation Guide

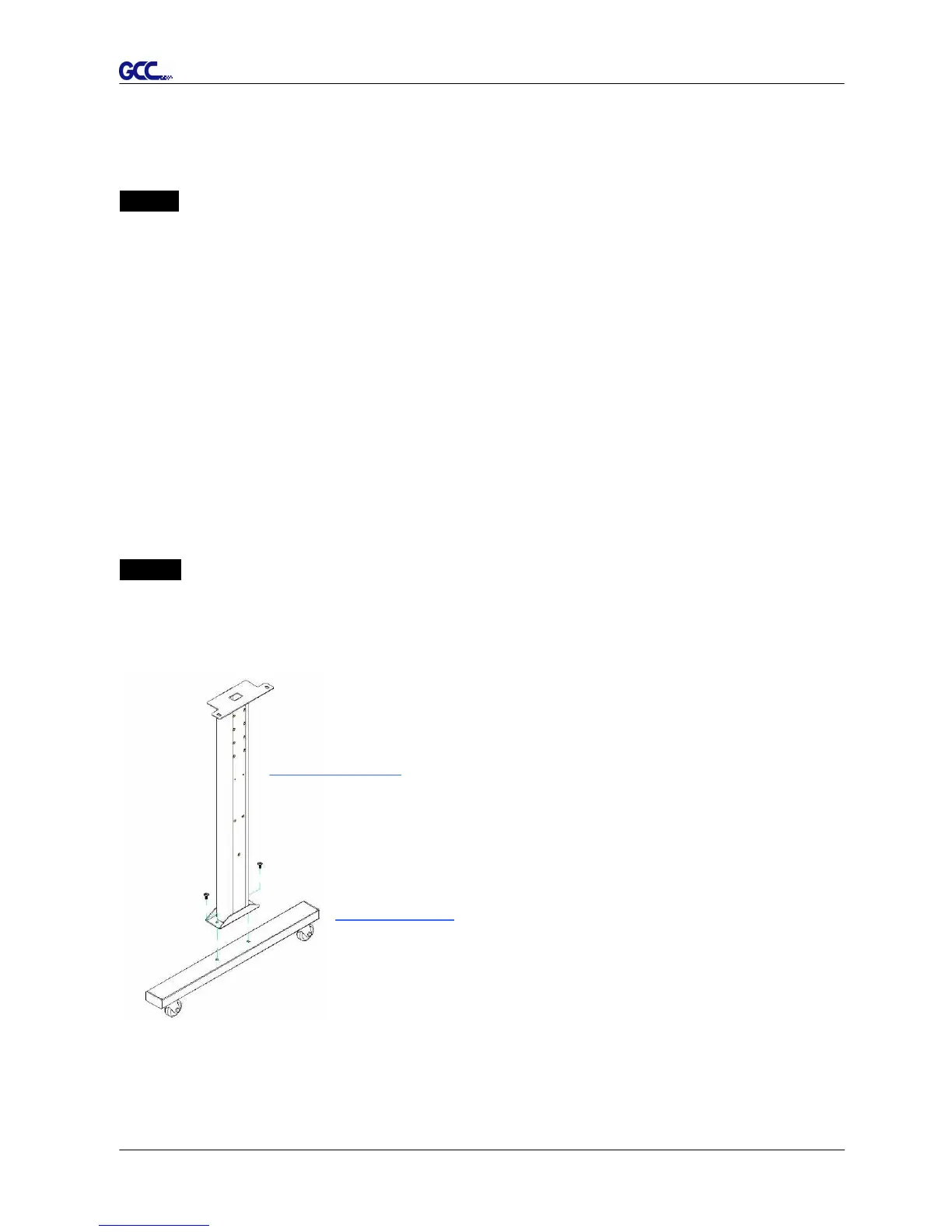

Step 2
Position the Left side vertical stand perpendicularly to part and put the screws into the
holes and tighten them to form a left side T-stand (Figure 2-1). Repeat the same steps with the
Right side vertical stand.
Left side vertical stand
