6–32 345 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
S2 SYSTEM SETUP CHAPTER 6: SETPOINTS

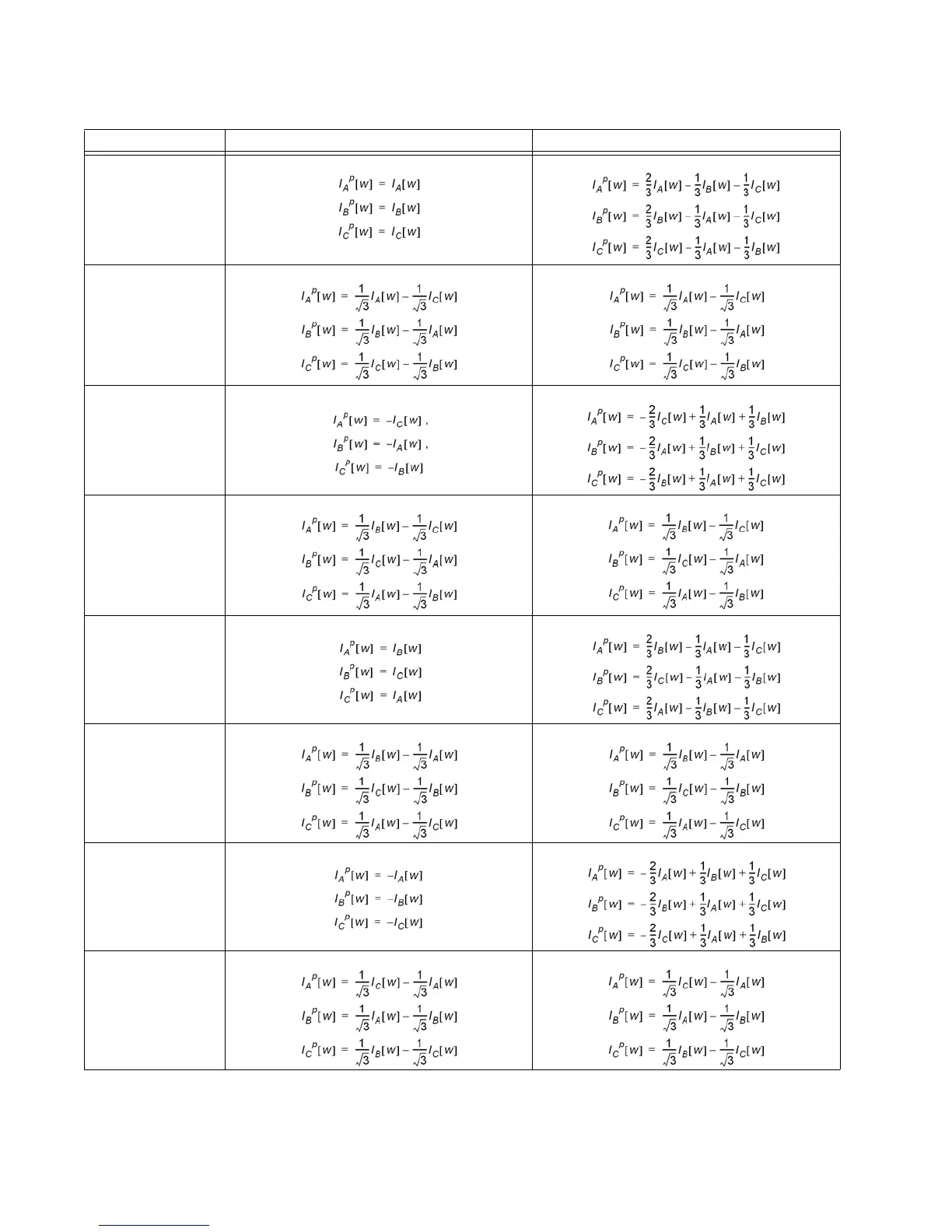

Table 6-2:
Φ
COMP
[W] GROUNDING[W] = "NOT WITHIN ZONE" GROUNDING[W] = "WITHIN ZONE"
0°
30° lag
60° lag
90° lag
120° lag
150° lag
180° lag
210° lag
