GE 745 - 7.2.2 Dielectric Strength Testing

7–6 745 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
PRELIMINARY WORK CHAPTER 7: COMMISSIONING
7.2.2 Dielectric Strength Testing
The 745 is rated for 2.2 kV AC for 1 second or 2.0 kV for 1 minute (as per IEC 60255-5)
isolation between relay contacts, CT inputs, VT inputs and the safety ground terminal G12.
Some precautions are required to prevent 745 damage during these tests.
Filter networks and transient protection clamps are used between control power and the
filter ground terminal G11. This filtering is intended to filter out high voltage transients,
radio frequency interference (RFI), and electromagnetic interference (EMI). The filter
capacitors and transient suppressors could be damaged by application continuous high
voltage. Disconnect filter ground terminal G11 during testing of control power and trip coil
supervision. CT inputs, VT inputs, and output relays do not require any special precautions.
Low voltage inputs (< 30 V) such as RTDs, analog inputs, analog outputs, digital inputs, and
RS485 communication ports are not to be tested for dielectric strength under any
circumstance.

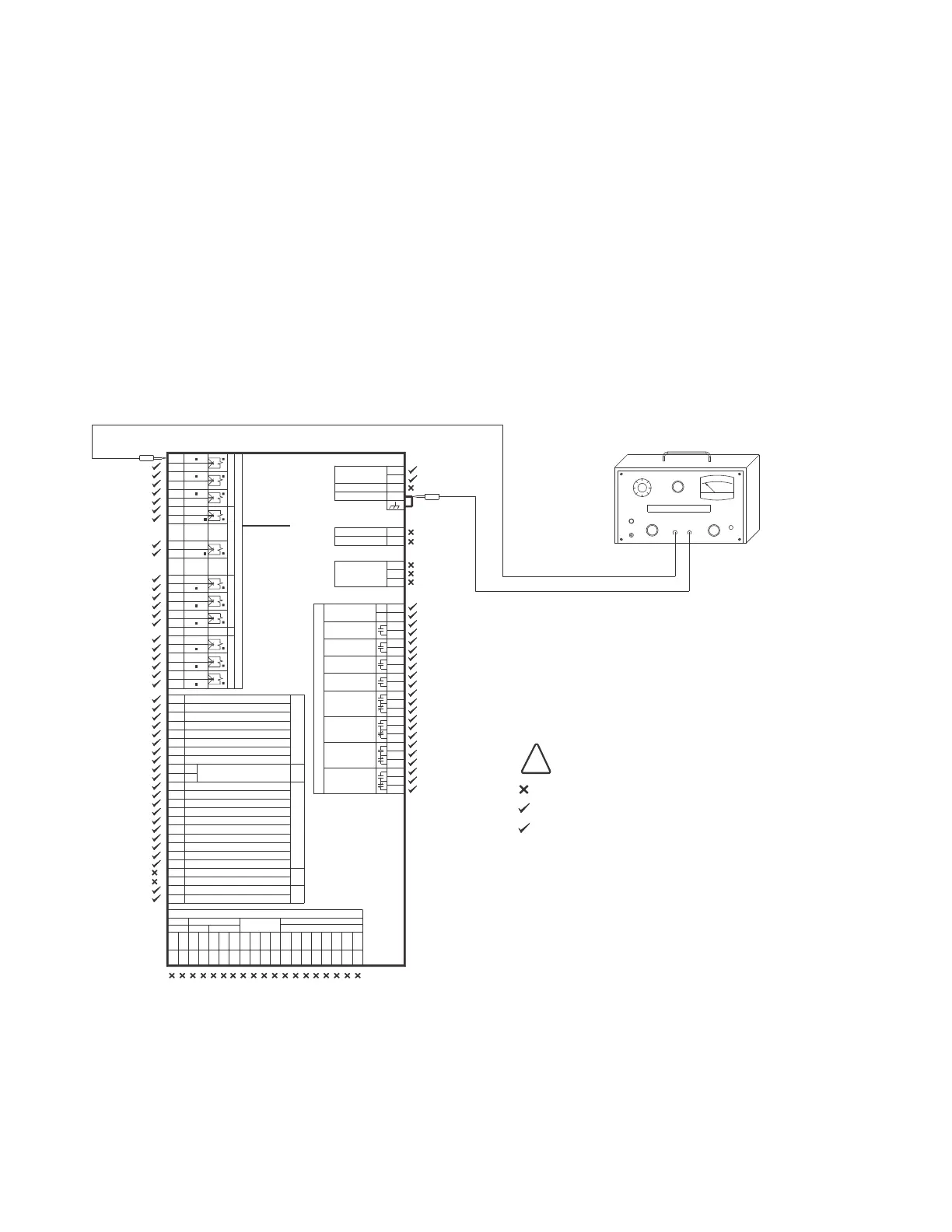

FIGURE 7–2: Testing for dielectric strength
