Viewing real-time patient data
2001989-200E ApexPro™ 7-25
346B
SpO
2
control settings
NOTE
An SpO2 monitoring device must be connected to transmitter to configure
settings.

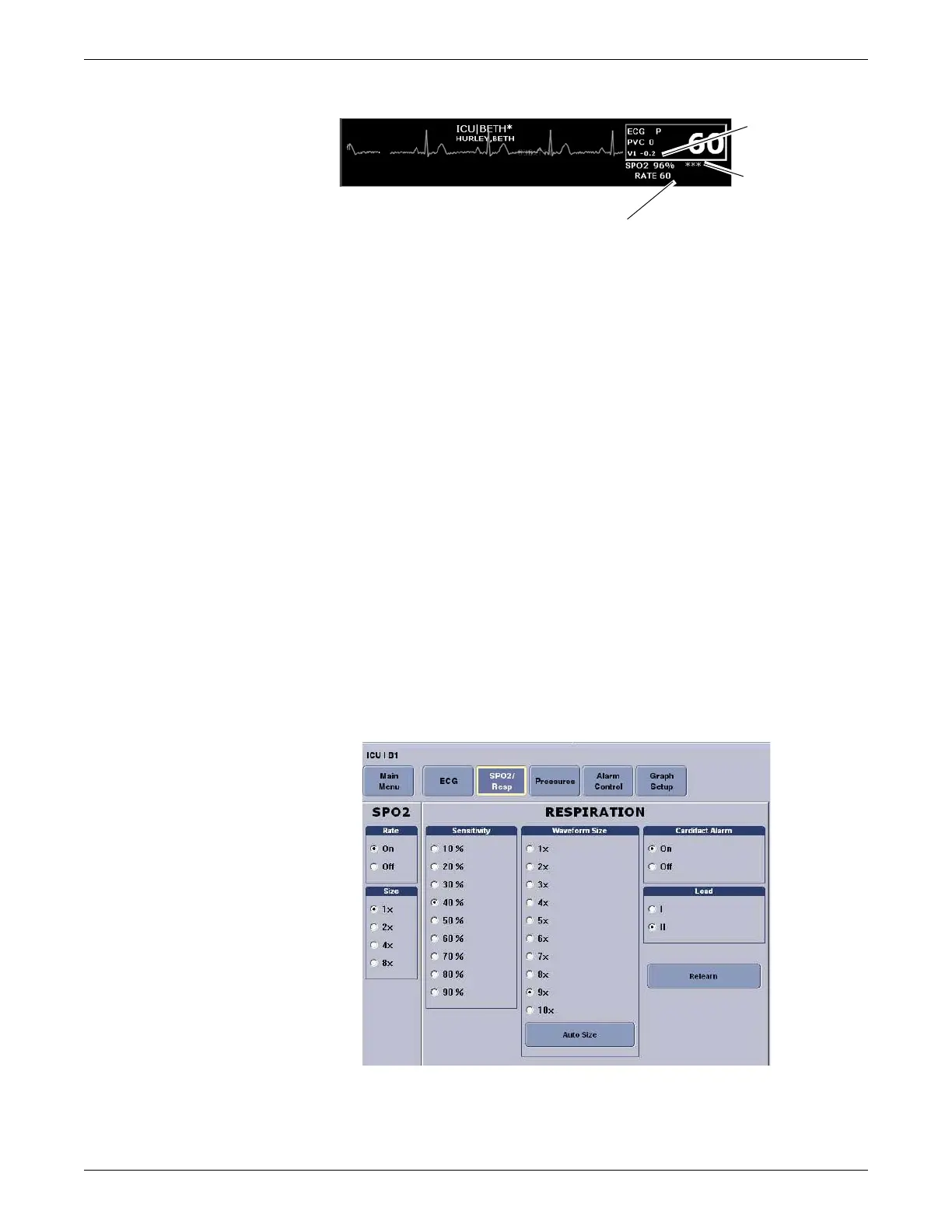

Complete the following procedure to adjust the control settings.
1. From the multi-patient viewer, click on the patient you want to view. The single
patient viewer displays.
2. From the single patient viewer, click Monitor Setup.
3. Click SPO2/Resp to display the control window.
NOTE
The SpO2 tab is labeled SpO2/Respiration because respiration monitoring
settings are available on this tab sheet for bedside monitored patients only.
Respiration monitoring is not an option for telemetry patients. Therefore
only SpO2 information appears on this tab sheet when monitoring a
telemetry patient.
4. Change any of the undimmed setting options.
064A
Signal Strength
Indicator
SpO2 Value
Pulse Rate Value
To Next Page
