GE Bently Nevada 3300/25 - Integrator;Gain Stage Flow Path

3300/25 Dual Accelerometer Input Monitor Operation Manual
56
19.3 Integrator/Gain Stage Flow Path
This diagram is meant to illustrate the signal path through the Integrator/Gain Stage and
the filters. It should not be used to determine jumper configurations. Follow the
instructions in Section 19.4 determine the necessary jumper configuration.

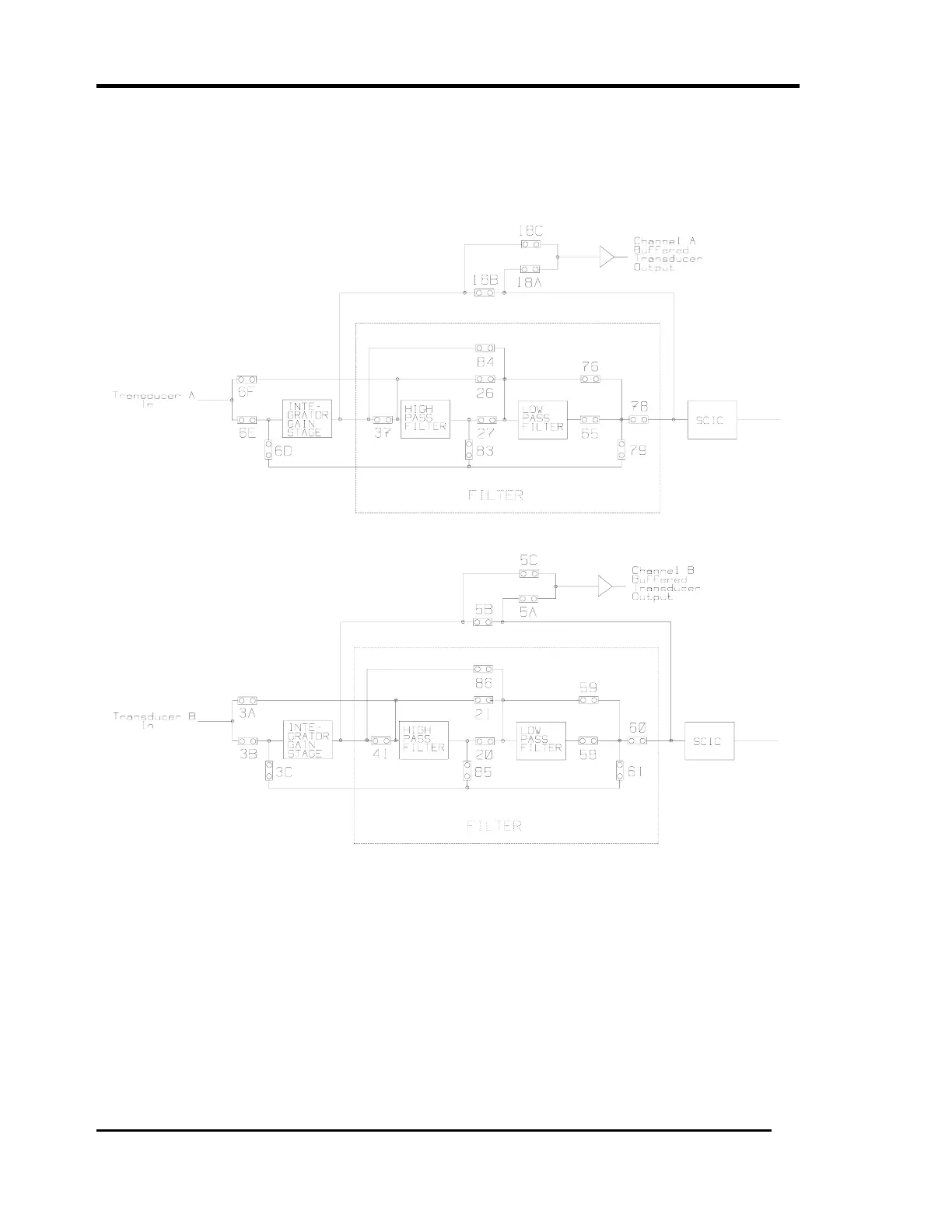

FIGURE 1. SIGNAL FLOW PATH
