Chapter 2: Installation
18 Concord 4 Installation Manual

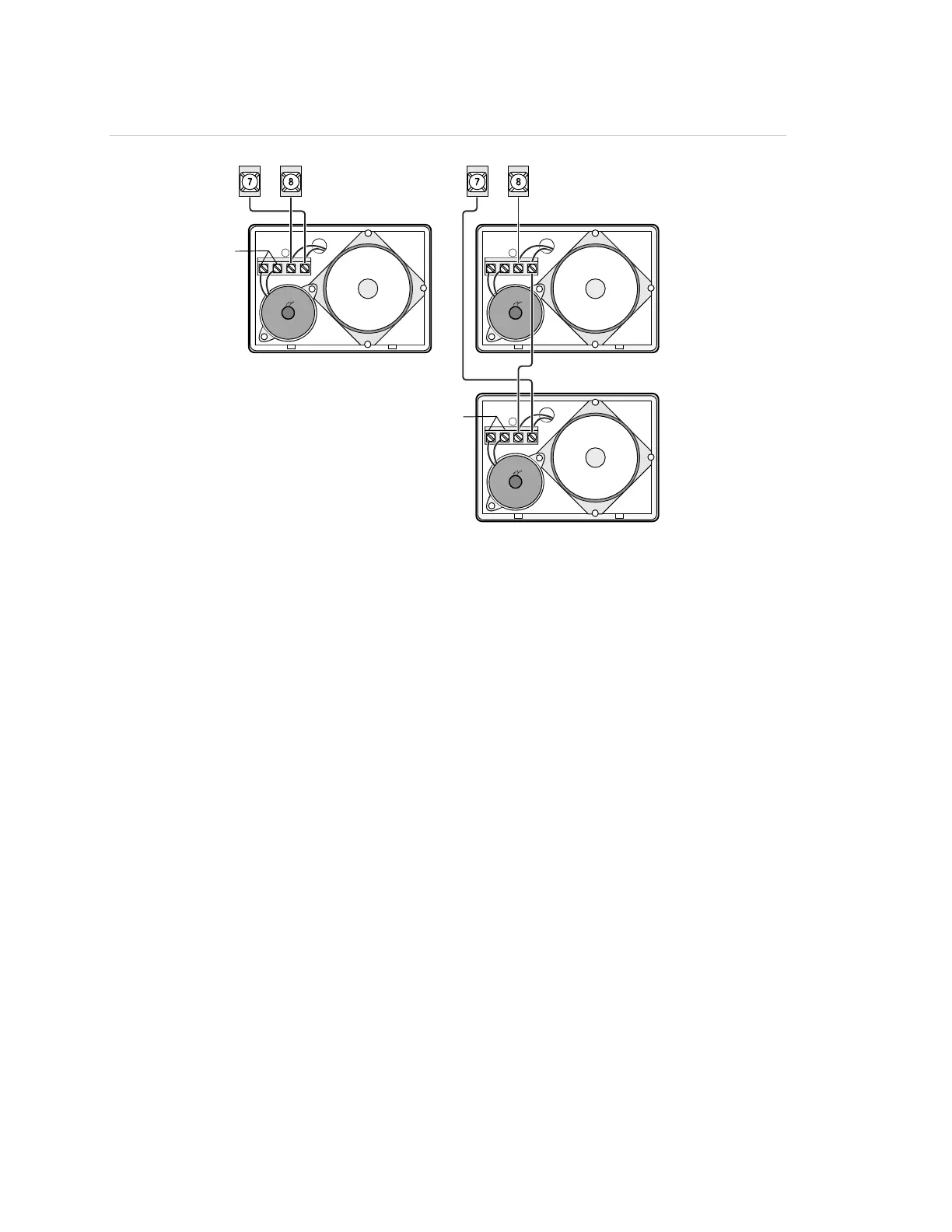

Figure 10: Connecting hardwired interior speakers
SPKR SPKR SPKR SPKR
Not used
Not used
78 78
Exterior/interior piezo sirens
Onboard output 1 (OUT 1—terminal 9) is a 9 to 14 VDC switched, programmable
output that can handle a maximum of 1,000 mA current. The default setting (01614)
activates the output 30 seconds after a police or fire alarm condition occurs. This
allows you to connect a piezo siren without changing the output configuration
number in programming. This output is typically used for exterior siren applications.
Connect multiple piezo sirens in parallel. (For more information on output
configuration numbers, see “
Onboard options menu” on page 75.)
Note: For 24-hour backup, external power drain is limited to 90 mA (during normal
standby condition), using a 4.5 or 5.0 Ah battery, or 190 mA continuous using a 7.0 Ah
battery.
Piezo dynamic exterior siren (13-950)
Connect the siren to panel as shown in
Figure 11 on page 19.
