Chapter 2: Installation
Concord 4 Installation Manual 25

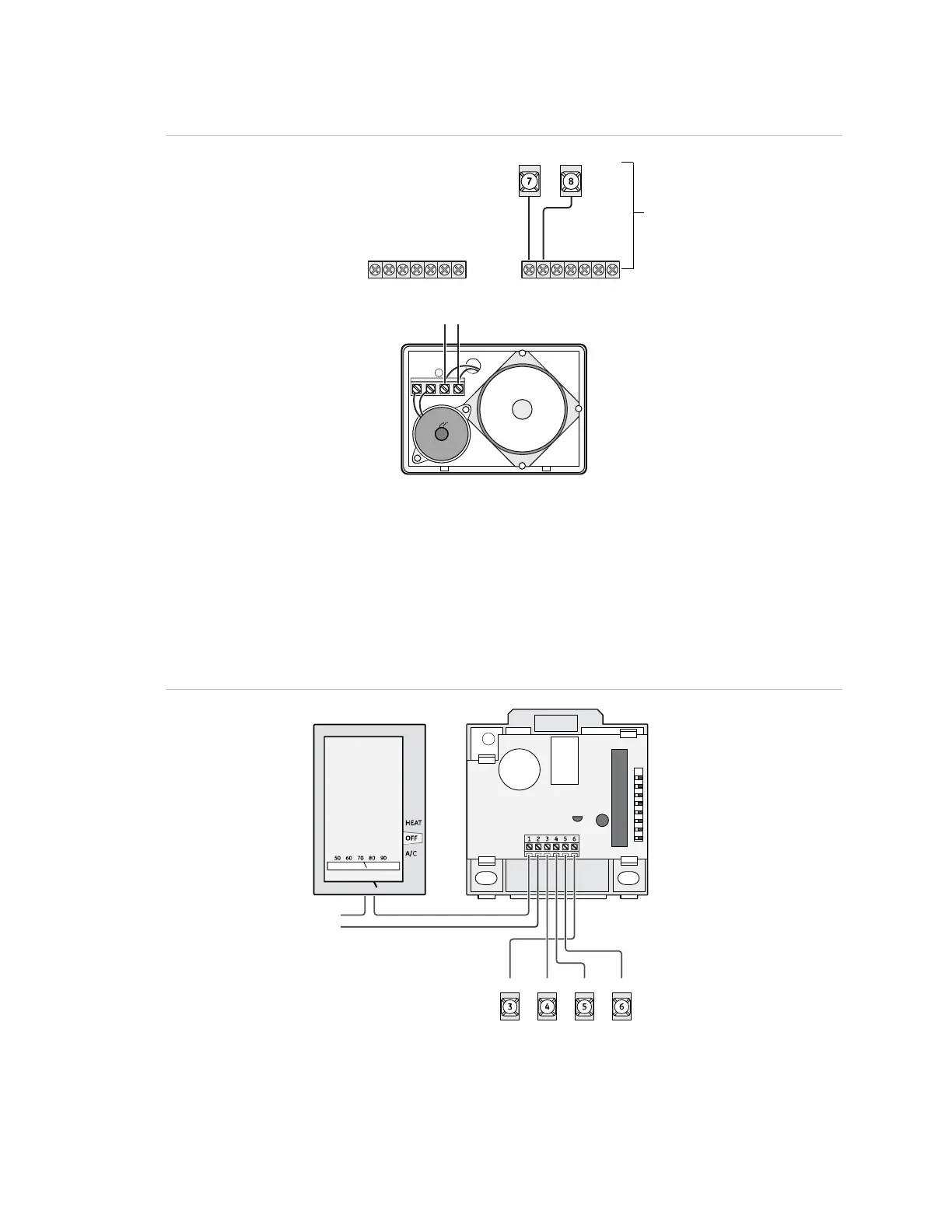

Figure 20: Wiring for status and alarm (or status only) messages
Module terminals
Hardwired interior
speaker (60-528)
For alarm messages
(for status only messages,
do not connect these
panel terminals)
AUD 1 AUD 2
GND
TIP 1 TIP 2
RING 1 RING 2
78
Panel terminals
SPKR SPKR
+12V
A
B GND GND SPK 1 SPK 2
SuperBus 2000 energy saver module
Connect the energy saver module to the panel and premises thermostat as shown in
Figure 21 below. Refer to the energy saver module documentation for thermostat
wiring details.
Figure 21: Wiring the thermostat and energy saver module
HVAC
HVAC
Thermostat
Energy saver module
Panel terminals
GND +12V
A BUS B
