GE Druck ADTS 2 Series User Manual

13 Druck ADTS 2XX User Manual
K0451 Issue No. 1
3-3 Main Menu

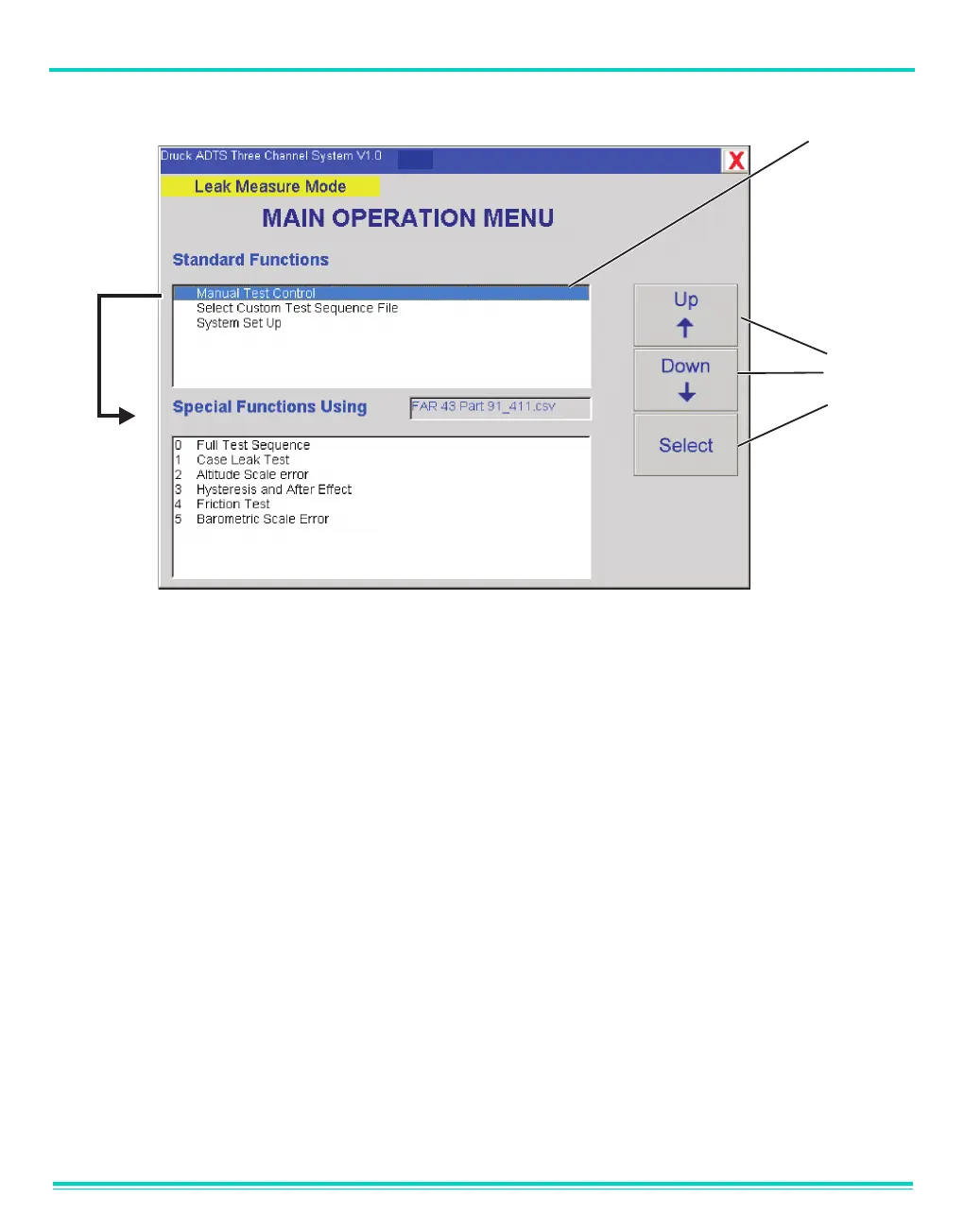

FIGURE 3-2 MAIN MENU SCREEN
Screen Displayed Key Selections
Touch screen keys (Figure 3-3) Function and comments
UP/DOWN Moves the screen highlight bar up/down.
Select Selects the test or set of values highlighted by the up/down function.
Back Returns to the previous screen.
Control
Leak Measure
Ground
Switches all channels between measure and control modes.
Starts the Go-to-Ground procedure for all channels.
Restore Default Values Restores the last set of stored data values or unit selection saved as a
default.
Save Settings Data Values or unit selection saved as a default.
Select Activates the highlighted function.
Exit Program Exits Program - required for downloading of new test files.
Enter Confirms data entry to a numeric field.
Selected
standard
function
Touch
screen
keys
Full Test Sequence - automatically starts and stops each test in turn (listed in the menu).
