GEK-106310AB F650 Digital Bay Controller 1-9
1 GETTING STARTED 1.2 OVERVIEW
1

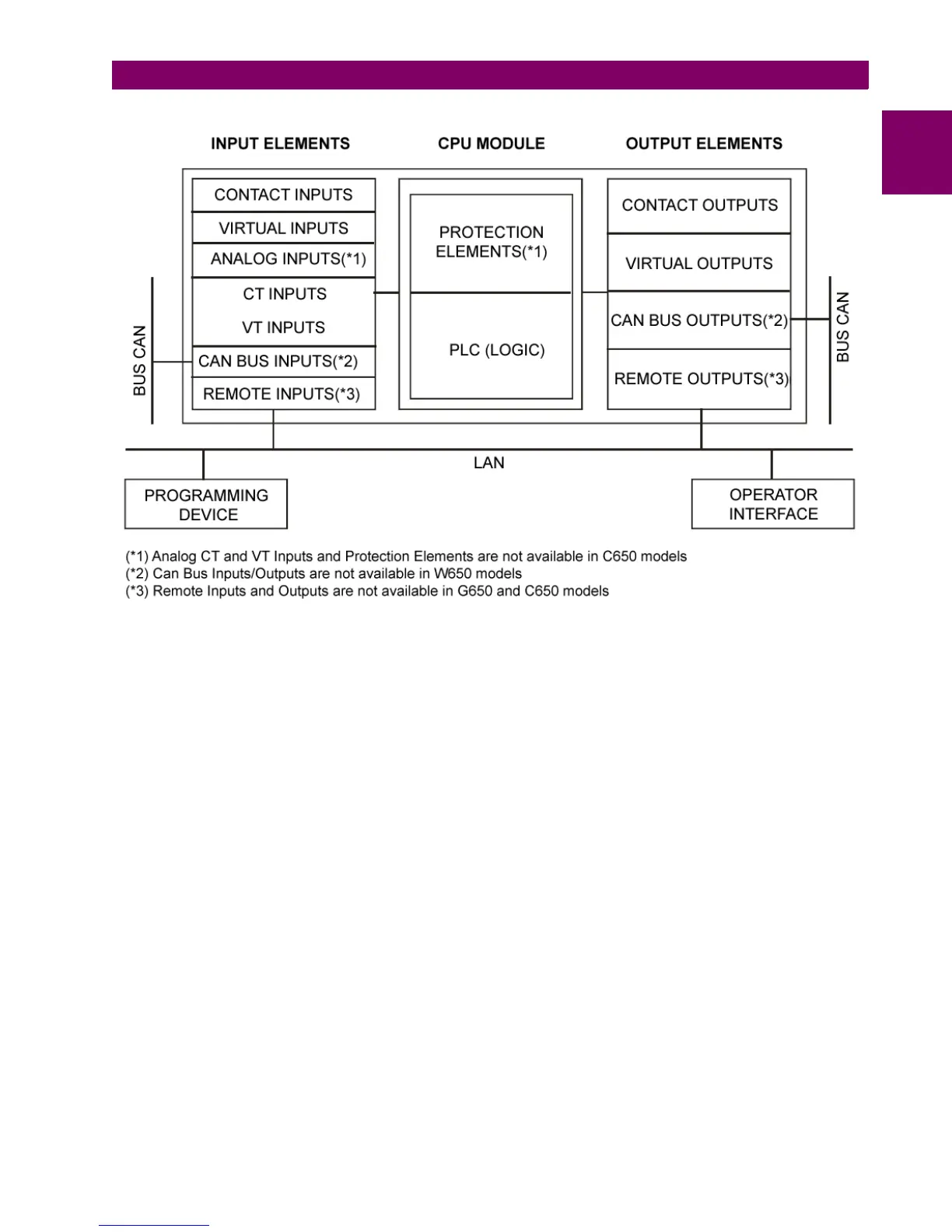

Figure 1–6: 650 CONCEPT BLOCK DIAGRAM
Contact Inputs/Outputs are signals associated to the physical input/output contacts in the relay
CT and VT inputs are signals coming from the inputs of current and voltage transformers, used for monitoring the power
system signals. CAN Bus Inputs/Outputs: are signals associated to physical input/output contacts from independent
modules connected to the 650 unit via a CAN Bus. Not available for W650 models.
PLC: Programmable Logic Controller. Control module that enables the unit configuration (assignment of inputs/outputs)
and the implementation of logic circuits.
Protection Elements: Relay protection elements, for example: Overcurrent, overvoltage, etc. Not available for C650
models.
Remote inputs and outputs provide a means of sharing digital point state information between remote devices using IEC
61850 GSSE and GOOSE messages. Not available for G650 models.
Analog Inputs are signals associated with transducers.
