6 ACTUAL VALUES 6.5 RECORDS
6
Figure 6–9: GE-OSC OSCILLOGRAPHY ANALYSIS SOFTWARE
It must be taken into account that any settings change in the oscillography will produce the removal of all the information
stored up to that moment.
6.5.3 FAULT REPORT
When selecting the Actual > Records > Fault Report menu, EnerVista 650 Setup will show the following screen,
indicating the fault reports available in the relay.

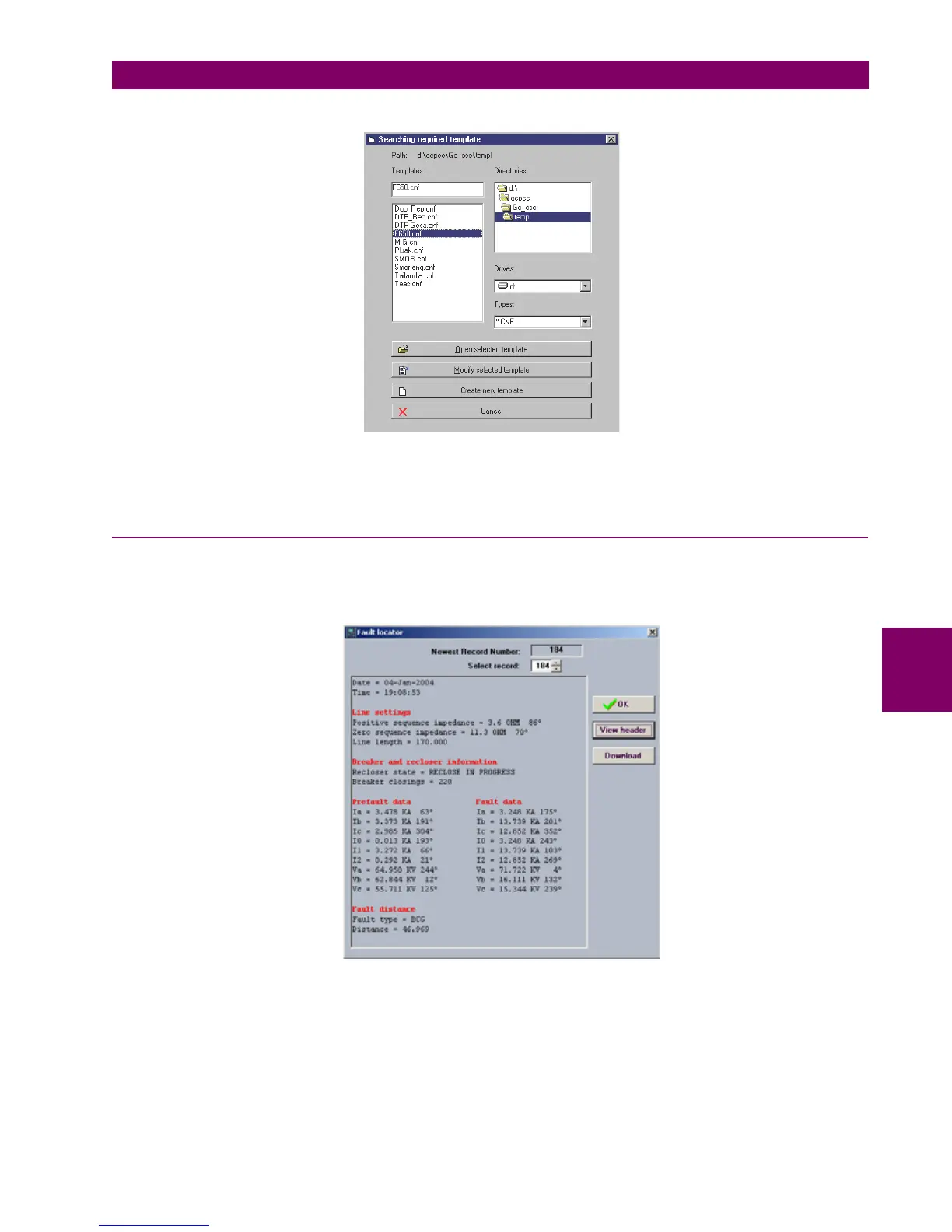

Figure 6–10: FAULT REPORT RETRIEVAL VIA ENERVISTA 650 SETUP
When selecting one of the records, a new screen will detail the following information:
•Date
•Time
• Pre-fault current and voltage in primary values
