GEK-106310AB F650 Digital Bay Controller 4-3
4 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4
4.1.3 MAIN SCREEN
The EnerVista 650 Setup software main window supports the following primary display components:
• Title bar
• Main menu bar
• Main icon bar
• Working area
• Status bar

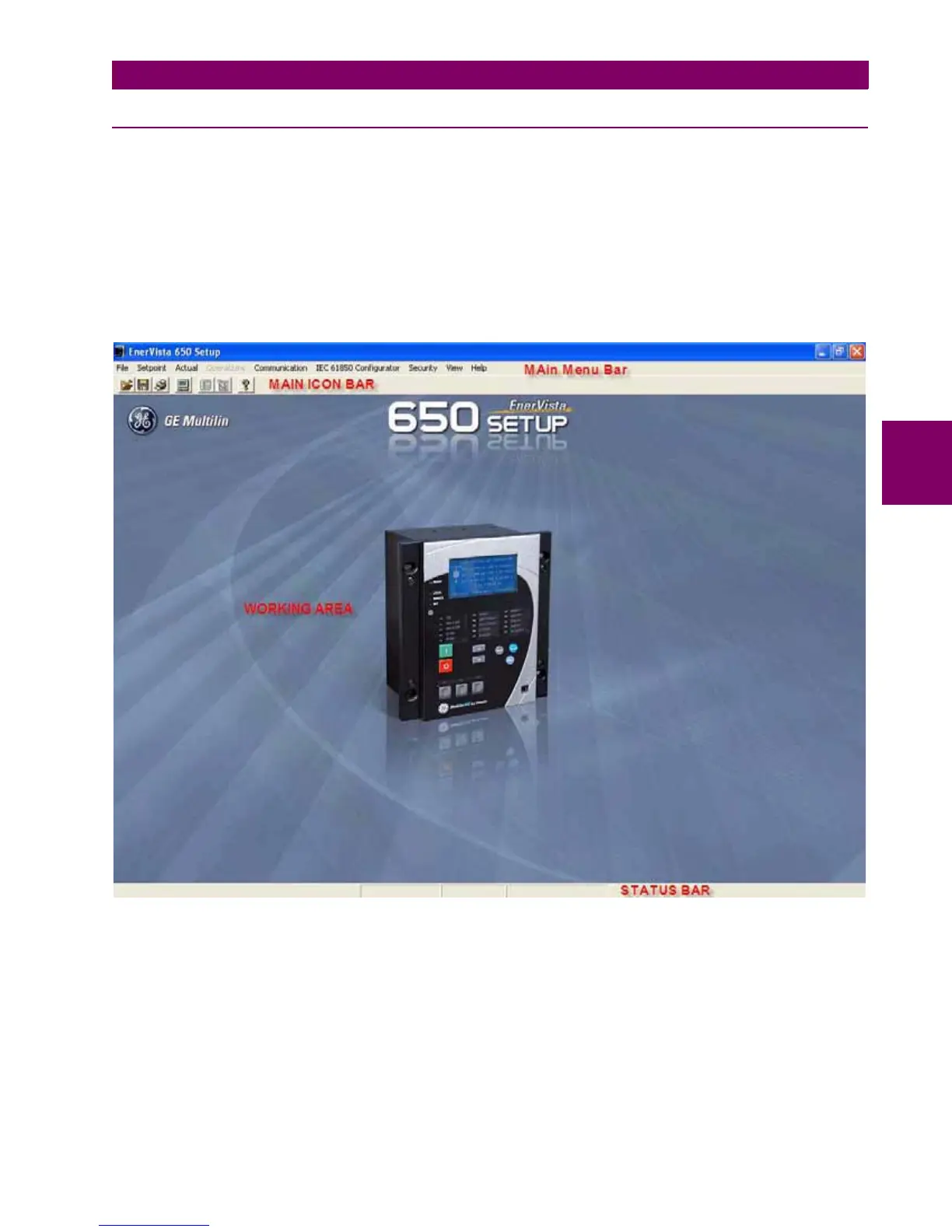

Figure 4–1: ENERVISTA 650 SETUP MAIN SCREEN
Working Area
Title
Working Area
Title
