5.12 PROCOME CONFIGURATION 5 SETTINGS
5

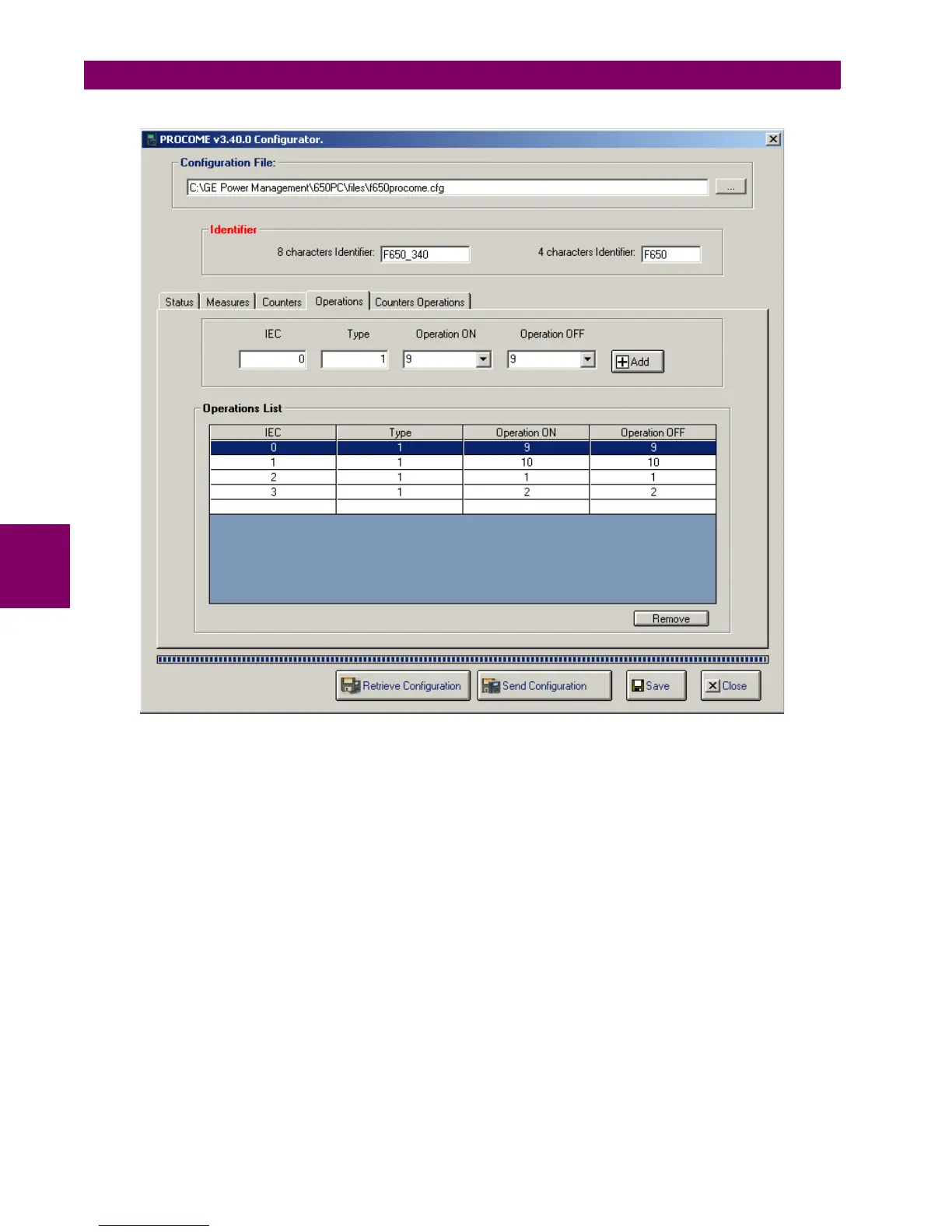

Figure 5–66: OPERATIONS CONFIGURATION
Counters Operations:
The counter operations screen is a dedicated configuration screen for the counter (pulse and energy) operations to freeze,
unfreeze and reset.
These operations must be set in the "Setpoint > Relay configuration > Operations" and "Setpoint > Relay
configuration>Protection Elements" in FREEZE ENERGY CNT, UNFREEZE ENERGY CNT and RESET ENERGY CNT.
For example if the ENERGY RESET operation is the 6th one in the operations screen, it must be configured to the
"ENERGY RESET CNT" input in the protection elements screen. To configure this operation to be launched through
procome see the example below. This configuration screen has the same management as the operations one.
