CONFIGURATION OF CONTROLLABLE OBJECTS
In the F650 relay IEC 61850 controllable data exist in logical nodes vinGGIO, XCBR and CSWI. Data from Logical node
vinGGIO maps to Virtual Inputs of F650. XCBR represents the circuit breaker and all four CSWI logical nodes represent
four first switchgear of F650 relay.
Controllable data in vinGGIO logical node are SPCSO1 - SPCSO64 and DPCSO1 - DPCSO16. Signals SPCSO1 -
SPCSO32 map to 32 Virtual Inputs Latched in F650 relay and signals SPCSO33 - SPCSO64 map to Virtual Inputs Self-
Reset. DPCSO1 - DPCSO16 are double control points and operate on pairs of Virtual Inputs Latched. Thus DPCSO1 -
DPCSO16 map to 32 Virtual Inputs Latched and an operation of one attribute DPCSO always operate on two Virtual Inputs
Latched, one Virtual Input of the pair is set to "1" and the other Virtual Input of the pair is set to "0".
Controllable data in XCBR and CSWI logical nodes are Pos (position) objects. These are operations used to change state
of breaker or switch.
F650 relay supports all four IEC 61850 control modes (ctlModel), which are:
• Direct control with normal security
• SBO control with normal security
• Direct control with enhanced security
• SBO control with enhanced security
However for data in vinGGIO logical node only "direct control with normal security" mode of control can be used.
There is a configurable timeout for SBO control modes in XCBR and CSWI logical nodes. The value range for SBO timeout
is 500 ms - 60 seconds. The sboClass attribute can only have value "operate-once", "operate-many" pattern is not
supported in IEC 61850 SBO controls in 650 relay.

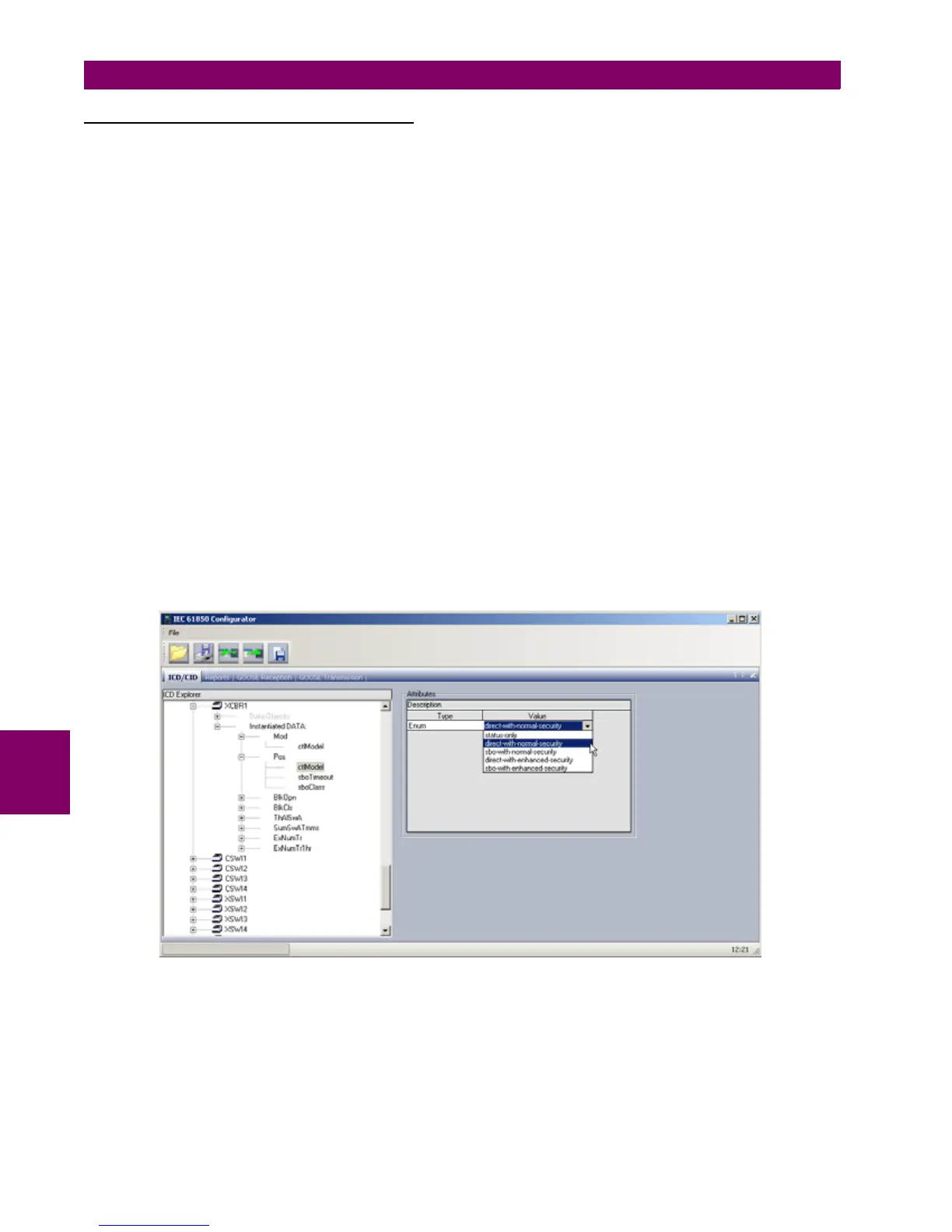

Figure 7–13: CONFIGURATION OF CONTROL MODEL (CTLMODEL) OF POS DATA OBJECT IN XCBR LOGICAL
NODE
