GEK-106310AB F650 Digital Bay Controller 9-15
9 BOOTCODE AND FIRMWARE UPGRADE 9.3 FIRMWARE VERSION UPGRADE
9
• In firmware version previous to 1.70 the Enervista 650 Setup program requires the IP address of the relay under
upgraded and its serial number.
• In versions 1.70 and higher it is also necessary to enter the ordering code for the relay. See Figure 9–23:

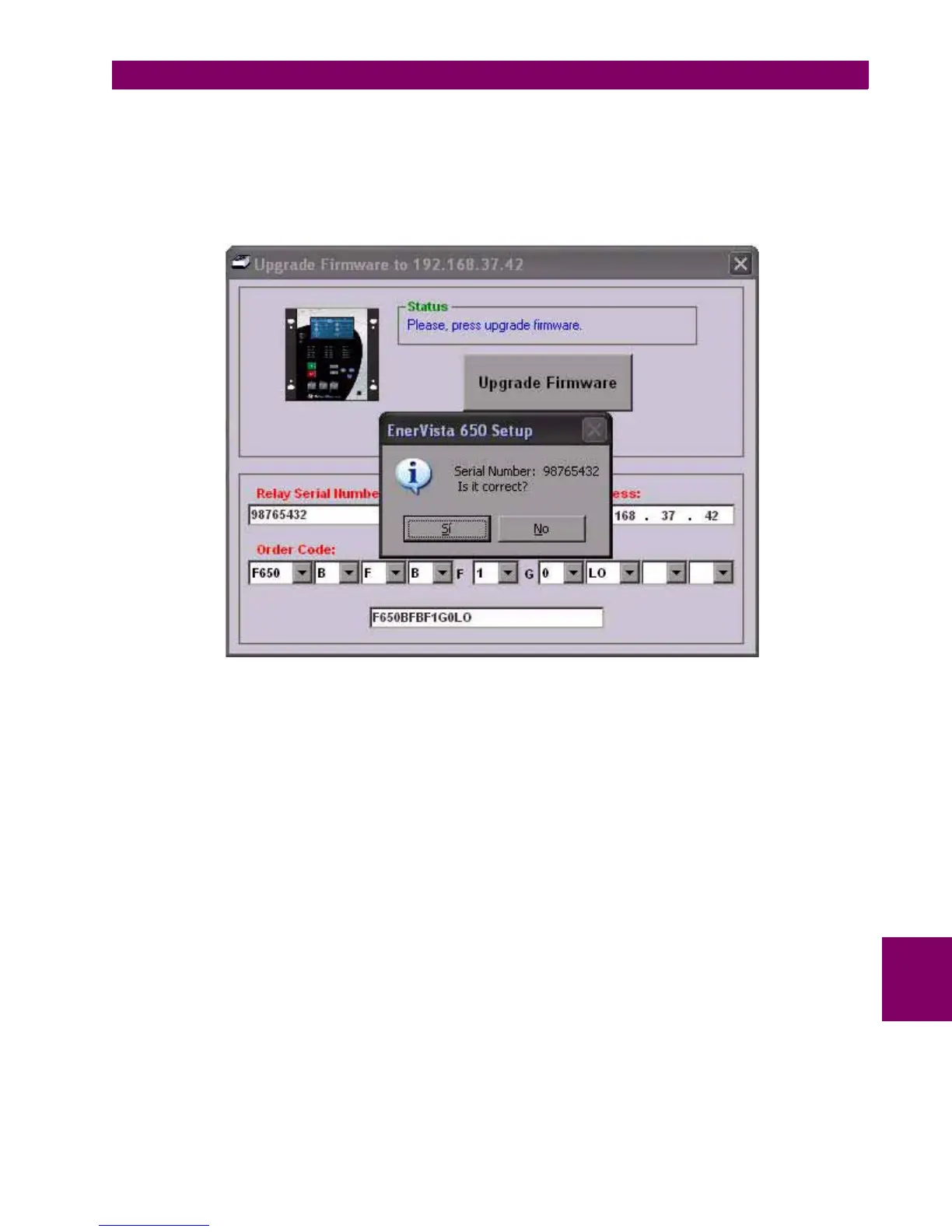

Figure 9–23: RELAY SERIAL NUMBER
2. If the relay under is not a enhanced model or control functionality then click the Upgrade Firmware button to continue
the process (Figure 9–24:) Then the process will continue as per step 9.3.2.4 forward.
