GEK-106310AB F650 Digital Bay Controller C-13

APPENDIX C C.5 DNP CONFIGURATION EXAMPLES

C

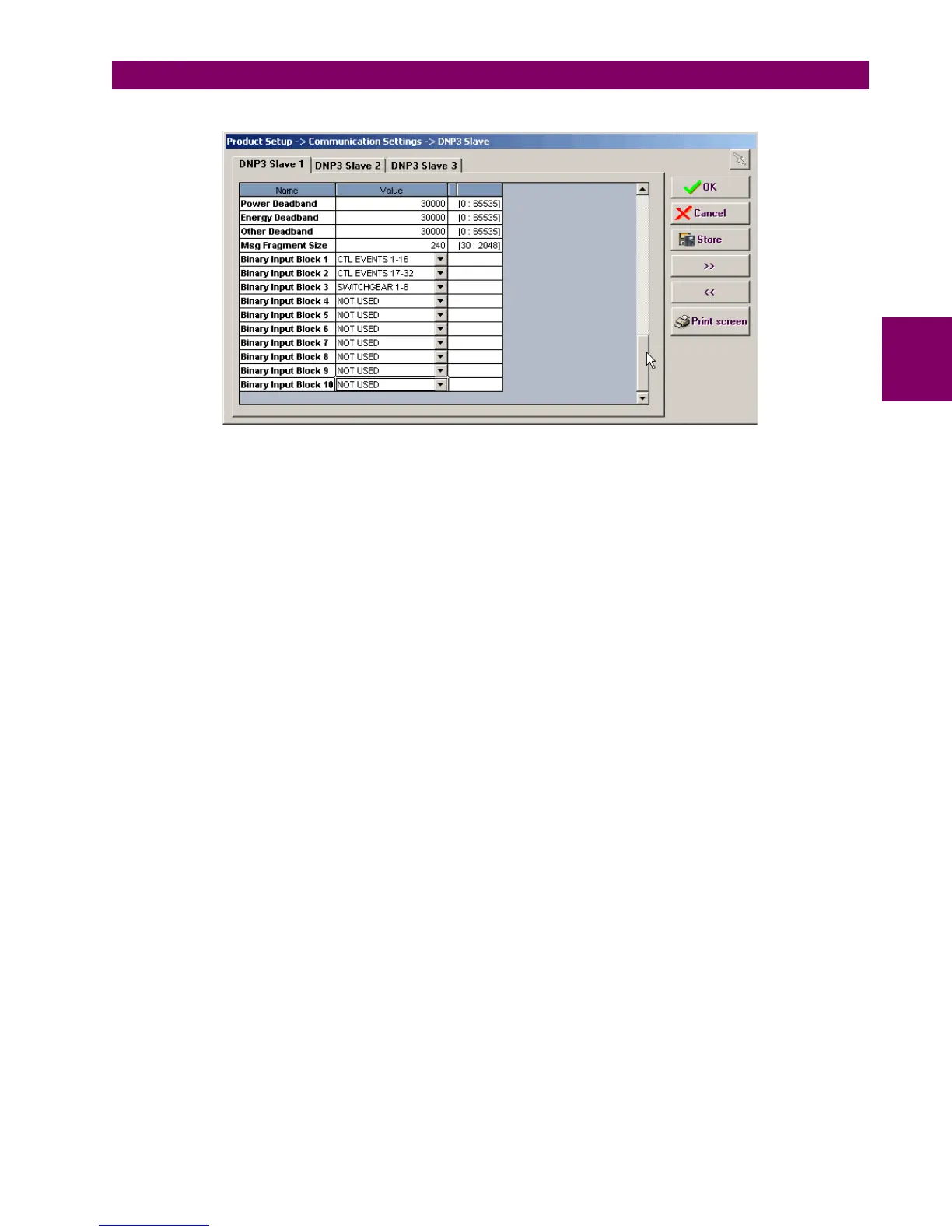

Figure C–3: CONFIGURATION OF DNP BINARY INPUT BLOCKS

In the example presented in this chapter the F650 relay has 48 Binary Input points, as shown in the table below.
