8-2-14 Mounting / Dismounting System on Cart
8-2-14-1 Tools
Phillips screwdriver of appropriate size
8-2-14-2 Time Required
5 min
8-2-14-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown.
2.) Prepare stable flat surface covered with a soft material (such as foam) to prevent scratches to the
display.
8-2-14-4
Dismounting System on Cart
3.) Disconnect system cables: probe cable, USB, Power
FRU Part #
Refer to Table 9-16 on page 9-17.

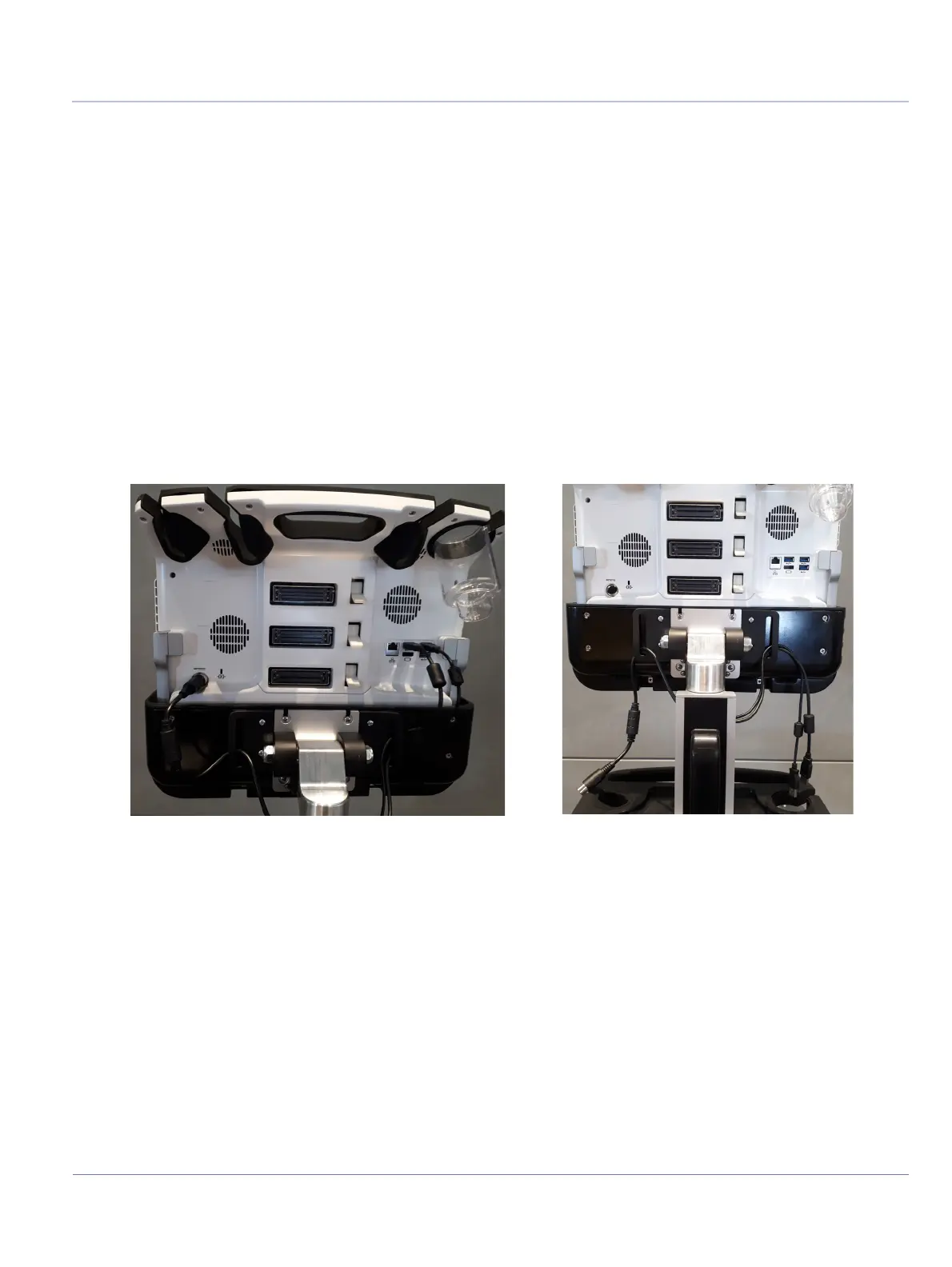

Figure 8-115 Disconnecting Cables from System
