8-2-19 Printer and Printer Bracket Replacement Procedure
8-2-19-1 Tools
Phillips screwdriver of appropriate size
8-2-19-2 Time Required
5 min
8-2-19-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown .
2.) Prepare stable flat surface covered with a soft material (such as foam) to prevent scratches to the
display.
3.) Dismount Venue Go™ system from cart and place it on a previously prepared surface with the
display facing down.
8-2-19-4 Printer and Printer Bracket Removal Procedure
4.) Remove printer assembly
5.) Remove 4 Phillips screws holding the printer inside the printer tray.
FRU Part #
Refer to Table 9-16 on page 9-17.
• Printer Assembly Removal Procedure

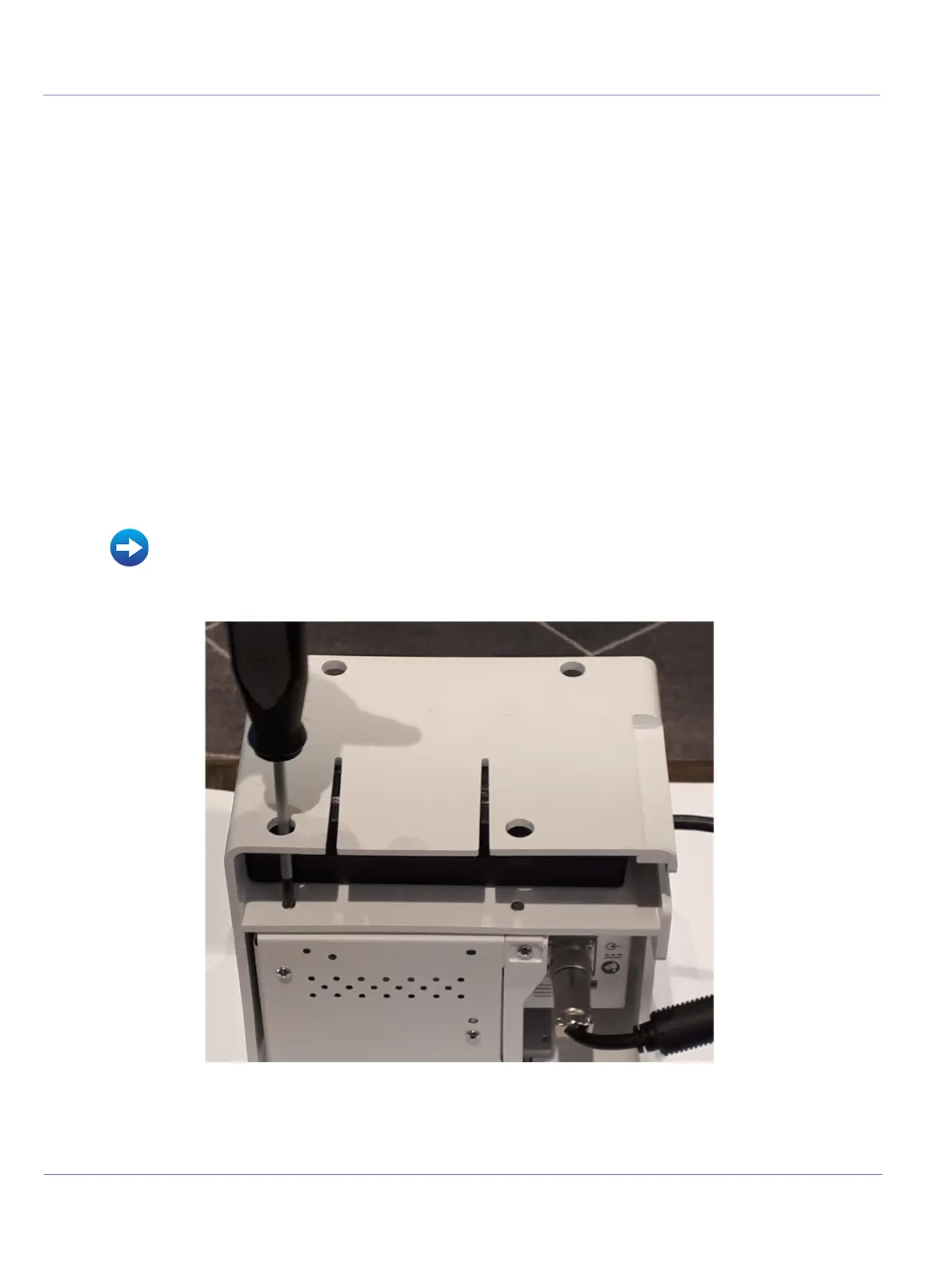

Figure 8-128 Disconnect Printer Screws
