GE HOME GENERATOR SYSTEMS Installation And Start-Up Manual

12
The information below is provided to assist gaseous fuel
system technicians in planning installations. In no way
should this information be interpreted to conflict with
applicable fuel gas codes. Consult with your local fuel
supplier or Fire Marshall if questions or problems arise.
TO THE INSTALLER: Consult with the generator owner(s) and
convey any technical considerations that might affect their
installation plans before applying these general guidelines.
The following general rules apply to gaseous fuel
system piping:
WARNING Propane and Natural Gas are extremely flammable
and explosive, which could cause burns, fire or
explosion resulting in death, serious injury and/or
property damage.
Before placing the generator into service, the fuel system lines •
must be properly purged and leak tested.
No leakage is permitted.•
NOTICE The supplied flexible gaseous pipe is not to be installed
underground or in contact with the ground.
 • The entire flexible gaseous pipe must be visible for
periodic inspection and must not be concealed
within nor contact nor run through any wall, floor, or
partition.
 • Thepipingshouldbeofamaterialthatconforms
to federal and local codes, rigidly mounted and
protected against vibration.
 • Pipingshouldbeprotectedfromphysicaldamage
where it passes through flower beds, shrub beds, and
other cultivated areas where damage could occur.

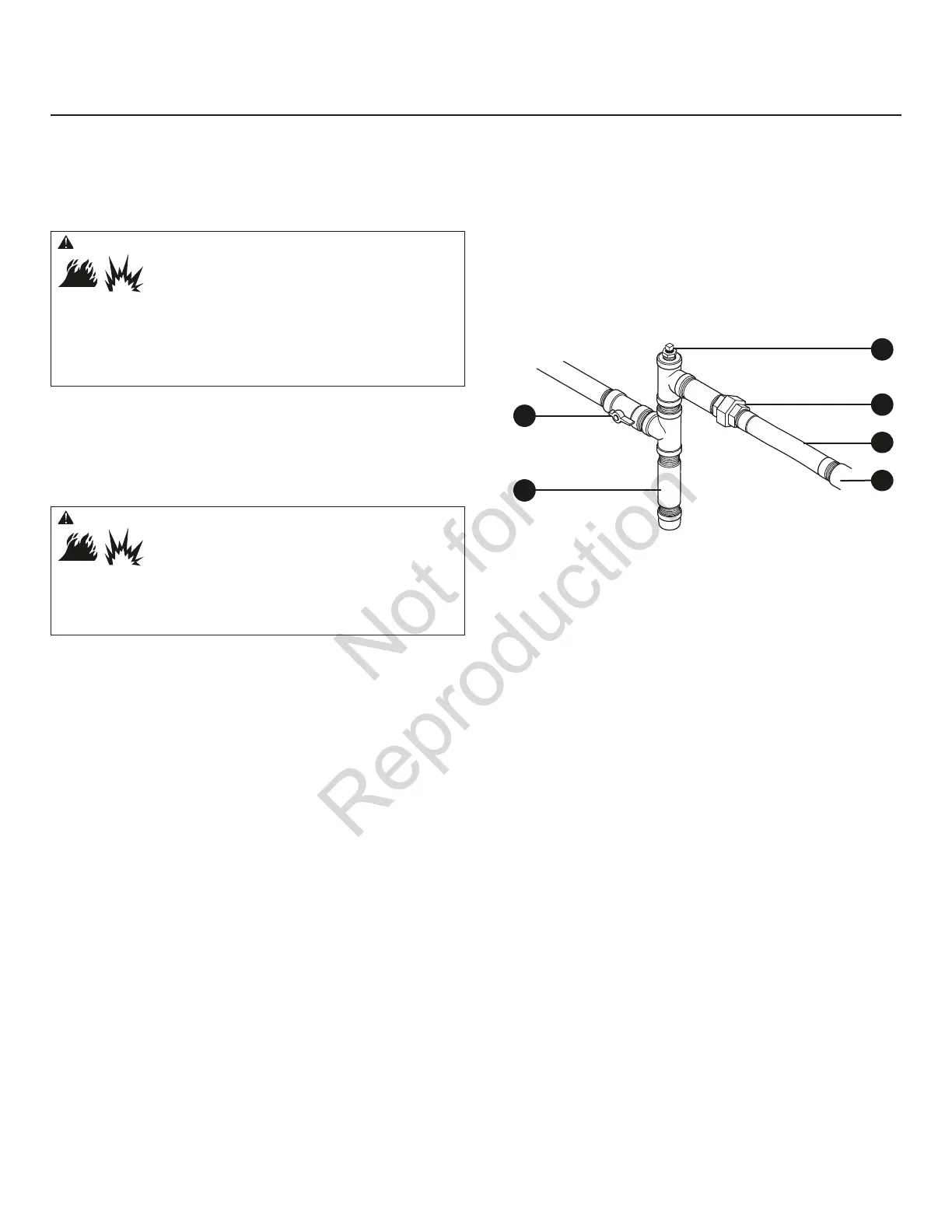

The Gaseous Fuel System
 • Installtheflexible,gaseoushose(B) (supplied)
between the generator fuel inlet port (A) and rigid
piping to prevent thermal expansion or contraction
from causing excessive stress on the piping material.
A
B
C
E
D
F
 • Aunion(C) or flanged connection shall be provided
downstream to permit removal of controls.
 • Amanometerportshouldbeprovided(D). A digital
manometer,P/N19495,isavailableatyourBriggs&
Stratton service center. When the initial test runs are
completed, the manometer is removed and the port
is plugged. The manometer port permits temporary
installation of a manometer to ensure that the
engine receives the correct fuel pressure to operate
efficiently throughout its operating range.
 • Wheretheformationofhydratesoriceisknownto
occur, piping should be protected against freezing.
The termination of hard piping should include a
sediment trap (F) where condensate is not likely to
freeze.
 • Aminimumofoneaccessible,approvedmanual
shutoff valve (E) shall be installed in the fuel supply
line within 6 ft (180 cm) of the home generator.
 • Aminimum10ft.(3m)sectionofgaspipebetween
the primary fuel regulator and the generator fuel inlet
connection (acts as accumulator for high block loads).
WARNING Propane and Natural Gas are extremely flammable
and explosive, which could cause burns, fire or
explosion resulting in death, serious injury and/or
property damage.
LP gas is heavier than air and will settle in low areas.•
Natural gas is lighter than air and will collect in high areas.•
The slightest spark could ignite these fuels and cause an explosion.•
DO NOT light a cigarette or smoke.•
Not for
Reproduction
