16
Generator AC Connection System

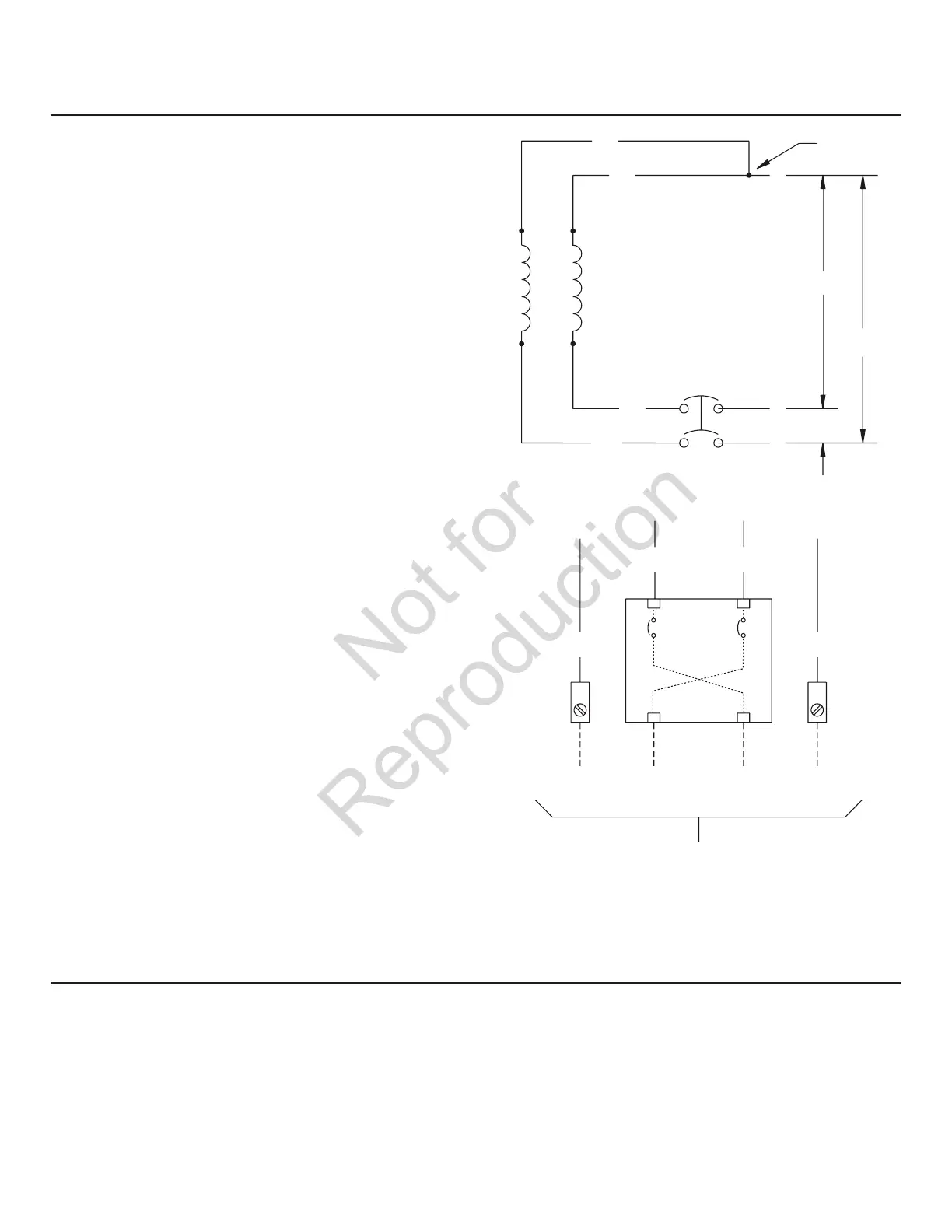

A single-phase, three-wire AC connection system is used in
the home generator. The stator assembly consists of a pair
of stationary windings with two leads brought out of each
winding. The junction of leads 22 and 33 forms the neutral
lead, as shown schematically and as a wiring diagram. A
complete schematic and wiring diagram can be found later
in this manual.
Neutral is not bonded to ground at generator.
33
240V
11
22
44
11
22
44
120V
120V
0
Ground
Power Winding
Circuit
Breaker
Line 1
Neutral
To Transfer Switch
Line 2 Neutral
Circuit
Breaker
Ground the generator per applicable codes, standards, and
regulations. The generator GND lug is located inside the
control panel door under the circuit breaker cover.
Grounding the Generator
