8-20 Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4)
8-3-8-3 Matrox for CRT (Resolution setup) (cont’d)
4.) Select Multi-Desplay Setup...
5.) When the setting dialog is displayed, click on Use advanced Matrox display controls option, then
click on Independent mode.
6.) Set 800 x 600 @ 75Hz as Display mode of Display 1.
7.) Set 640 x 480 @ 60Hz as Display mode of Display 2.
8.) Click on OK button to close the dialog.

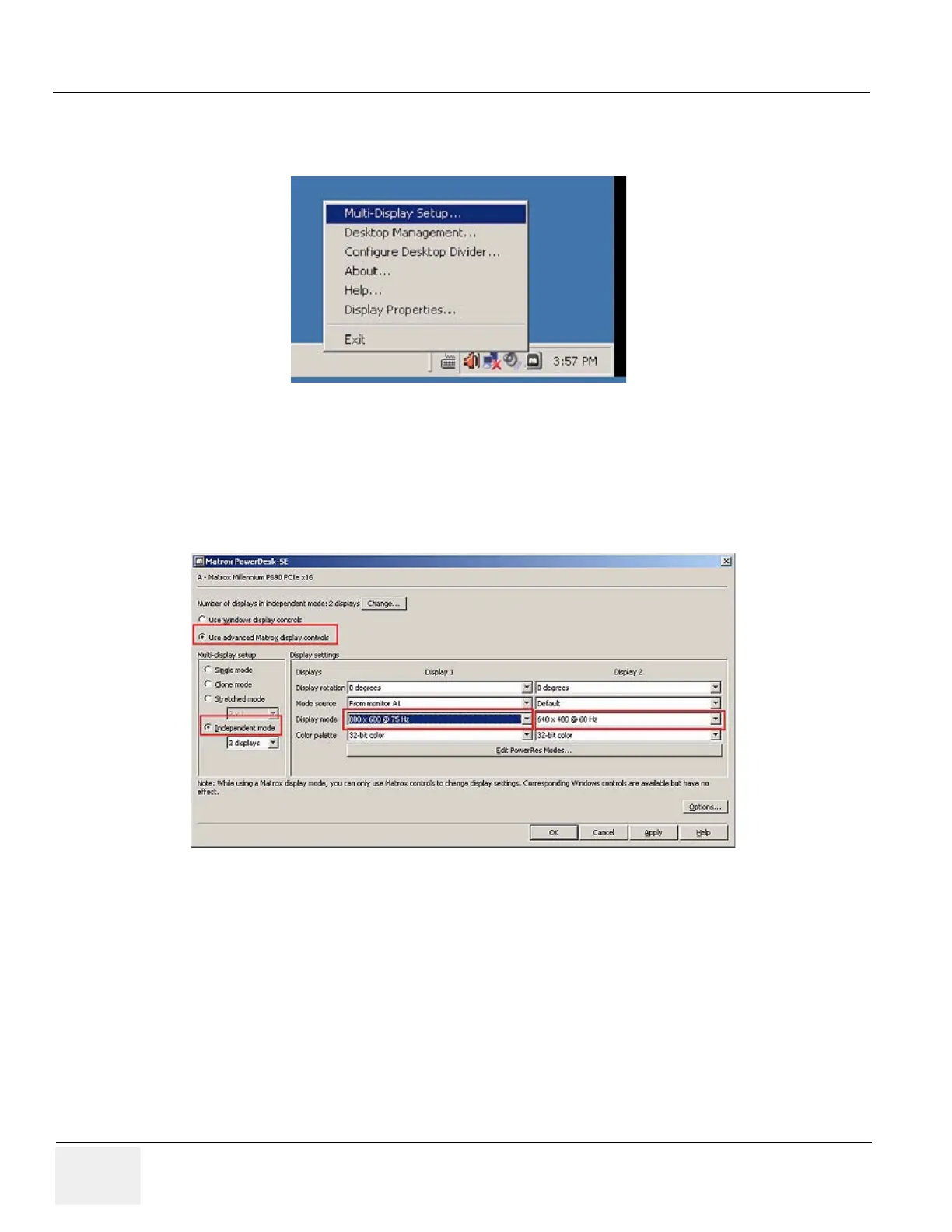

Figure 8-130 Multi-Display Setup...
Figure 8-131 Setting Dialog
To Next Page
