GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4) 8-21
8-3-8-3 Matrox for CRT (Resolution setup) (cont’d)
9.) Click on Yes button on the confirmation dialog.
10.)Right-click on the Desktop and select Properties from the popup menu.
11.)When the Display Properties Dialog is displayed, select the Settings tab.
12.)Click on the icon that is displayed as “1”.
13.)Verify that the Screen Resolution for Display1
is 800x600.

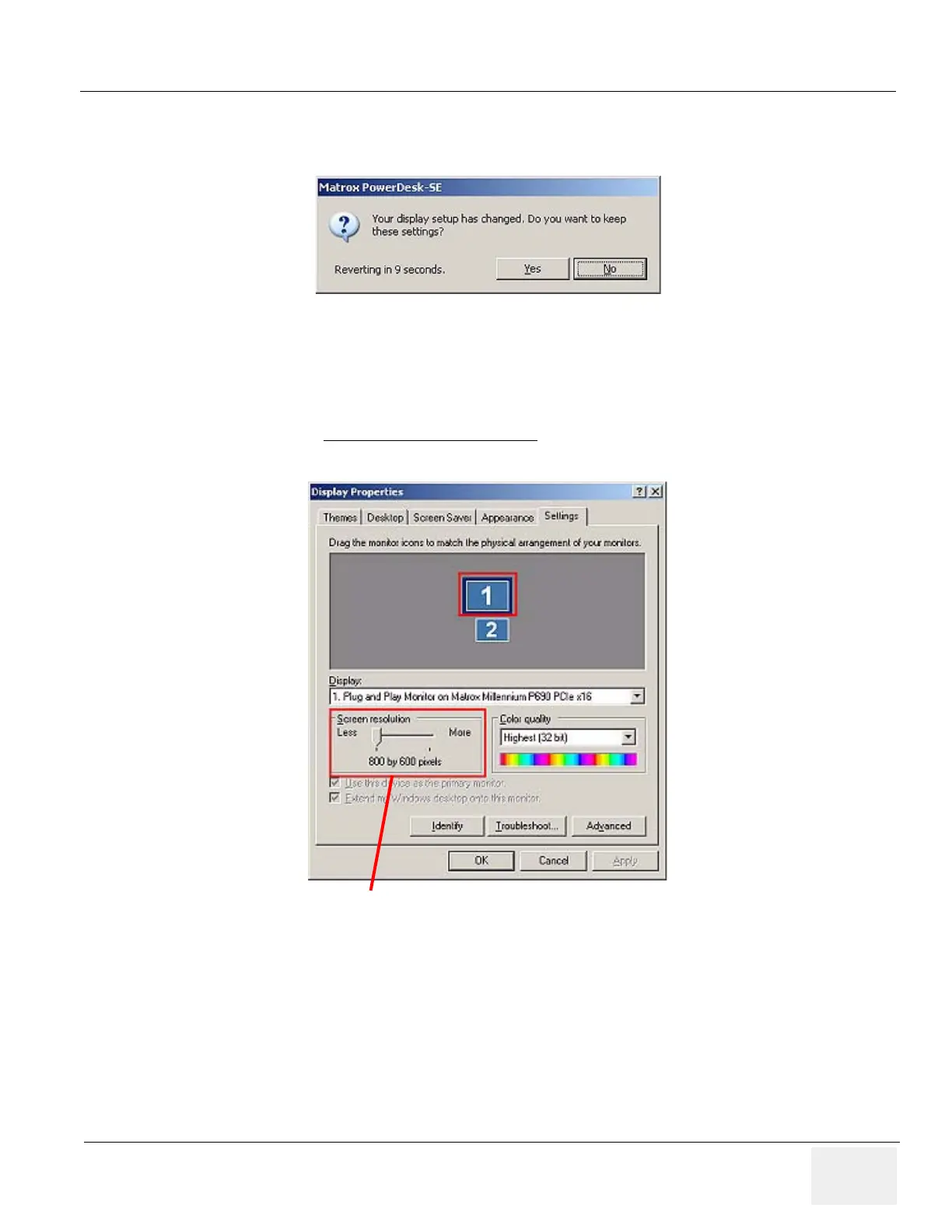

Figure 8-132 Yes
Figure 8-133 Verification for CRT1
800 x 600
To Next Page
