8-22 Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4)
8-3-8-3 Matrox for CRT (Resolution setup) (cont’d)
14.)Click on the Advanced button, then click on the Monitor tab on the Advanced Settings dialog.
15.)Verify that Screen refresh rate
is 75Hertz.
16.)Click on Cancel button to close the Advanced Settings dialog.
17.)Click on the icon that is displayed as "2".
18.)Verify that Screen Resolution for Display2
is 640x480.
19.)Click on the Advanced button, then click the Monitor tab on the Advanced Settings dialog.
20.)Verify that Screen refresh rate
is 60Hertz.
21.)Click on Cancel button to close the Advanced Settings dialog.
22.)Click on Cancel button to close the Display Properties dialog.
23.)Restart the system.

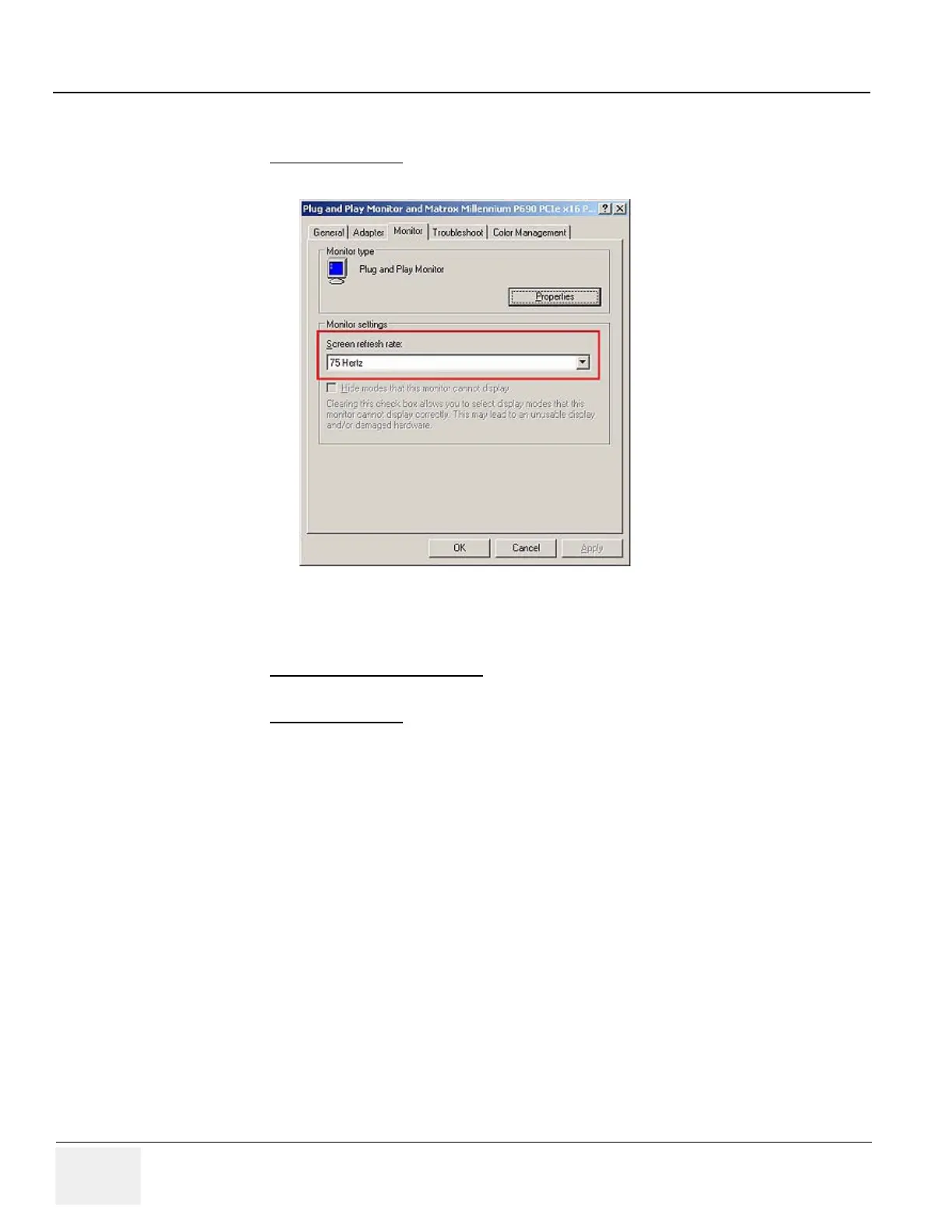

Figure 8-134 Monitor Tab
