GE LP 33 Series - LAYOUT LP 33 Series 100 - 120 kVA

Modifications reserved Page 12/103
OPM_LPS_33E_60K_M12_2GB_V010.doc Operating Manual LP 33 Series 60-80-100-120 kVA / S2

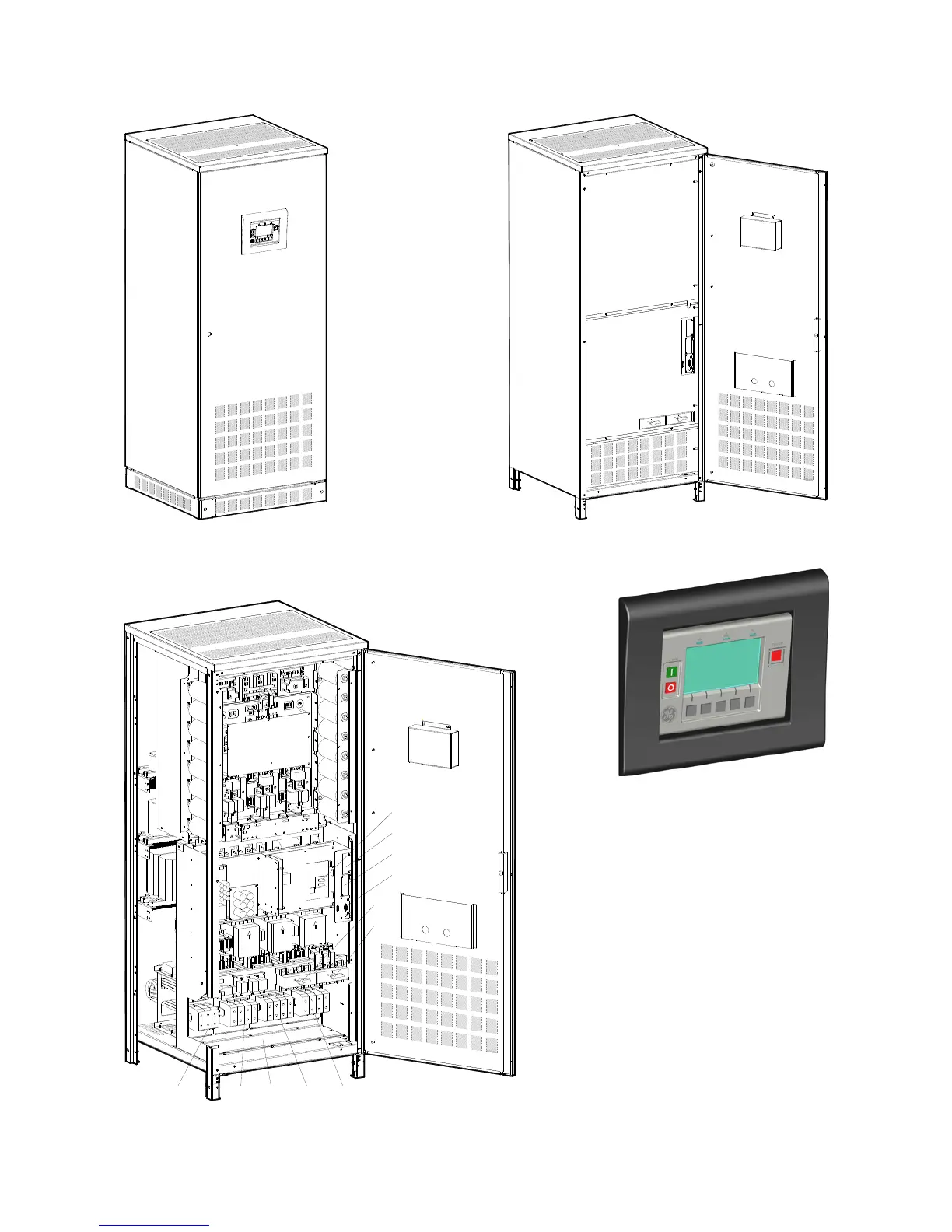

2.2 LAYOUT LP 33 Series 100 - 120 kVA
L
P
S
3
3
_
1
0
0
-
1
2
0
_
S
2
_
U
P
S
_
G
E
_
0
1
Fig. 2.2-1 General view
L
P
S
3
3
_
1
0
0
-
1
2
0
_
S
2
_
U
P
S
_
0
2
Q2
ON
OFF
Q1
ON
OFF
Fig. 2.2-2 General view with open door
Fig. 2.2-4 Control panel
1
Opening for input and output of cables
CI
Customer Interface Board (optional)
Q1
UPS output switch
Q2
Manual bypass switch
RC
Relay card
RPA
RPA board (optional)
SNMP
Advanced SNMP Card (optional)
X1
Terminals for common mains inpu
t
connection (rectifier + bypass)
X2
Terminals for separate mains inpu
t
connection (optional)
X3
Terminals for load output connection
Q2
ON
OFF
Q1
ON
OFF
L
P
S
3
3
_
1
0
0
-
1
2
0
_
U
PS
_
0
3
SNMP
CI
RC
X1 1 X2 X3X4
RPA
Q2
Q1
Fig. 2.2-3 General view without protection panels
X4
Terminals for external battery connection
