GE LP 33 Series User Manual

Modifications reserved Page 35/103
OPM_LPS_33E_60K_M12_2GB_V010.doc Operating Manual LP 33 Series 60-80-100-120 kVA / S2

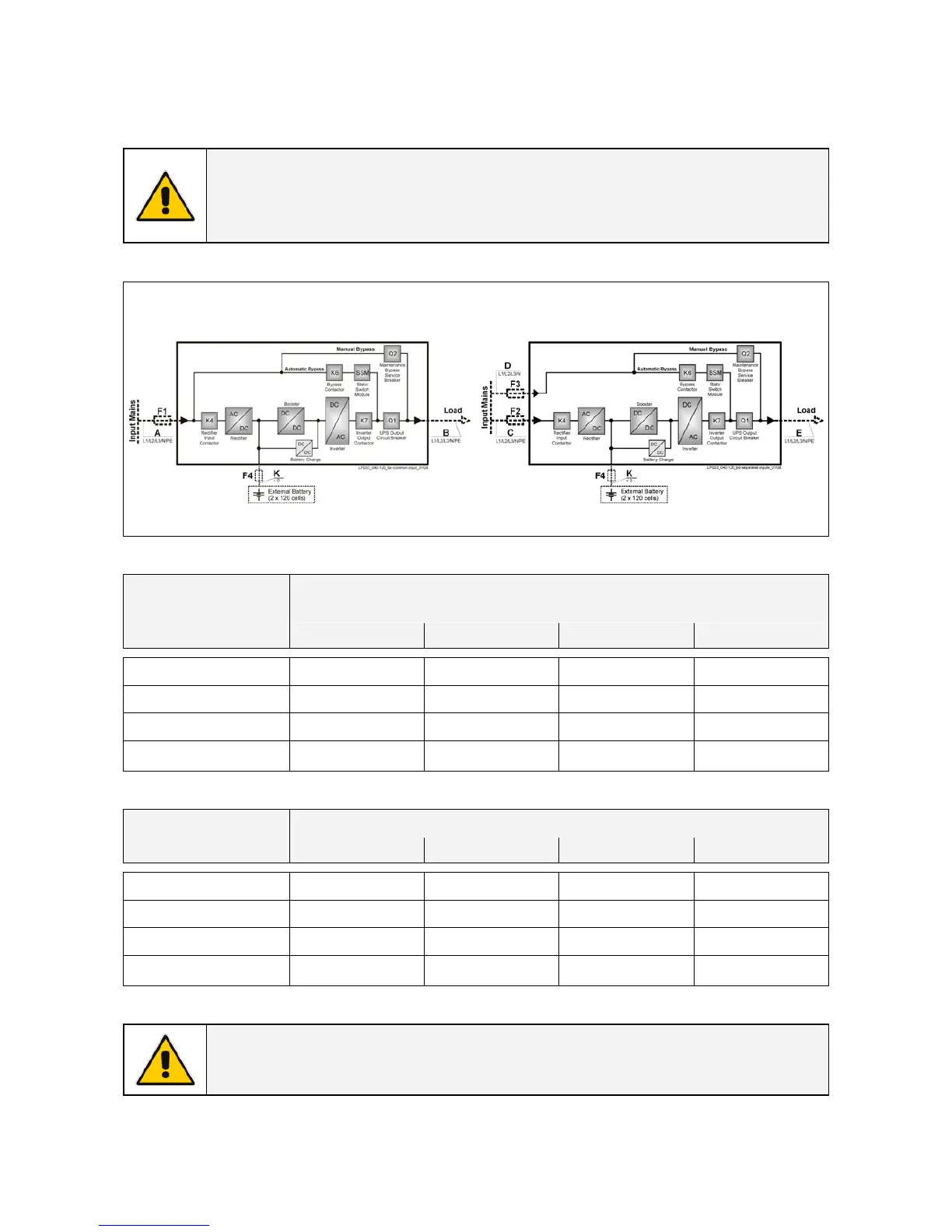

5.7.3 Input / output cable ratings
Cables size indicated below do not consider a possible line voltage.
NOTE !
The values given in the tables below do correspond to European Standards (EN) and
Swiss standards (SEV/ASE).
In any case the local standards must be respected.
Common input Rectifier & Bypass
Separate input Rectifier & Bypass
(optional)
Fig. 5.7.3-1 Common input mains
Fig. 5.7.3-2 Separate input mains (optional)
Cable sections A, B, C, D, E and K
recommended by EN - European Standards
UPS model
A / B / C D E K
LP 33 Series 60 kVA
4 x 25 + 16 mm
2
4 x 25 mm
2
4 x 25 + 16 mm
2
3 x 35 + 25 mm
2
LP 33 Series 80 kVA
4 x 35 + 25 mm
2
4 x 35 mm
2
4 x 35 + 25 mm
2
3 x 50 + 25 mm
2
LP 33 Series 100 kVA
4 x 50 + 25 mm
2
4 x 50 mm
2
4 x 50 + 25 mm
2
3 x 70 + 35 mm
2
LP 33 Series 120 kVA
4 x 70 + 35 mm
2
4 x 70 mm
2
4 x 70 + 35 mm
2
3 x 120 + 70 mm
2
Cable sections recommended in Switzerland
UPS model
A / B / C D E K
LP 33 Series 60 kVA
4 x 35 + 25 mm
2
4 x 35 mm
2
4 x 35 + 25 mm
2
3 x 50 +25 mm
2
LP 33 Series 80 kVA
4 x 50 + 25 mm
2
4 x 50 mm
2
4 x 50 + 25 mm
2
3 x 70 + 35 mm
2
LP 33 Series 100 kVA
4 x 70 + 35 mm
2
4 x 70 mm
2
4 x 70 + 35 mm
2
3 x 95 + 50 mm
2
LP 33 Series 120 kVA
4 x 95 + 50 mm
2
4 x 95 mm
2
4 x 95 + 50 mm
2
3 x 150 + 95 mm
2
NOTE !
According to EMC standards, the connection between the UPS and an external
battery must be done using a shielded cable!
