CHAPTER 4: PROGRAMMING S5 TESTING
PQM POWER QUALITY METER – INSTRUCTION MANUAL 4–61
4.6.4 Analog Input
Simulation

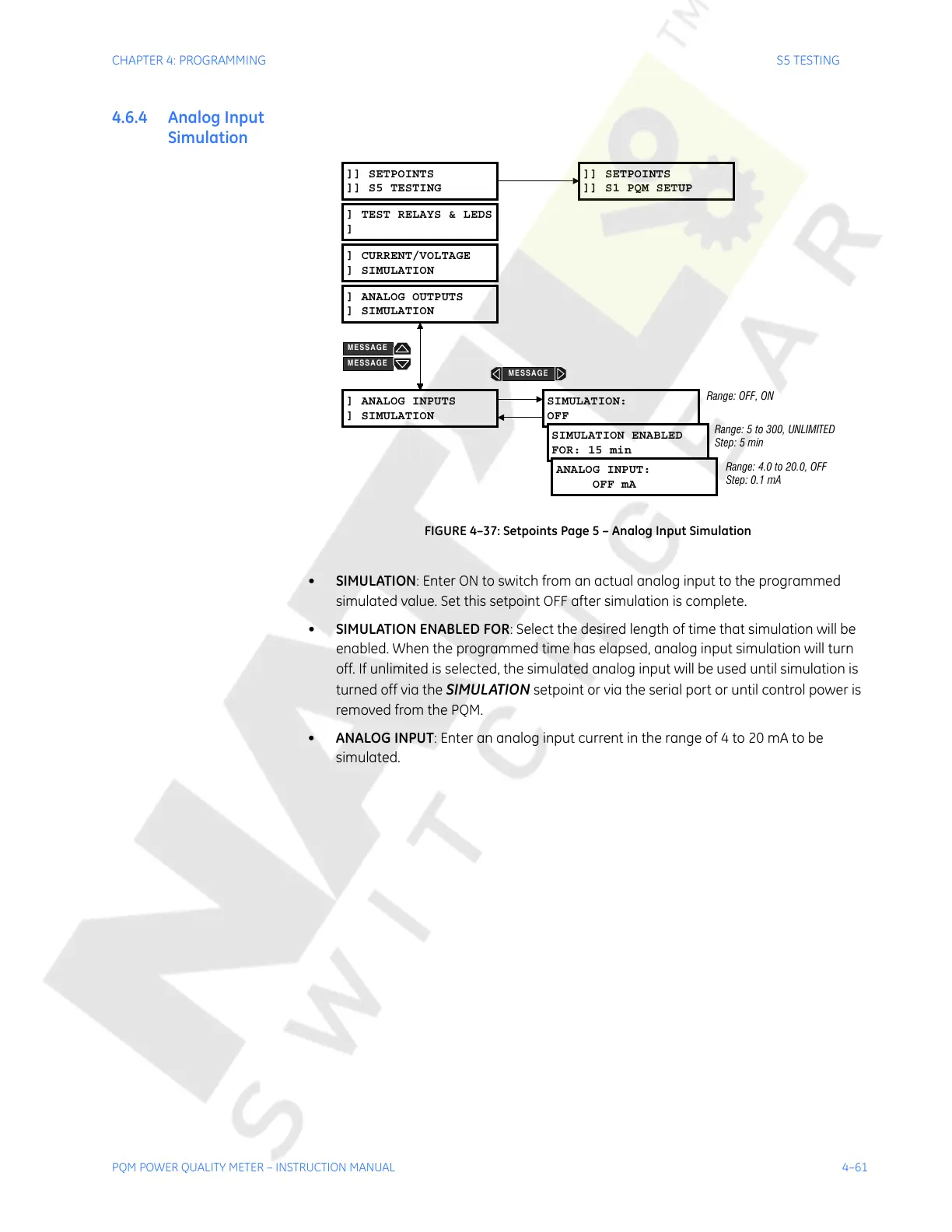

FIGURE 4–37: Setpoints Page 5 – Analog Input Simulation
• SIMULATION: Enter ON to switch from an actual analog input to the programmed
simulated value. Set this setpoint OFF after simulation is complete.
• SIMULATION ENABLED FOR: Select the desired length of time that simulation will be
enabled. When the programmed time has elapsed, analog input simulation will turn
off. If unlimited is selected, the simulated analog input will be used until simulation is
turned off via the
SIMULATION setpoint or via the serial port or until control power is
removed from the PQM.
• ANALOG INPUT: Enter an analog input current in the range of 4 to 20 mA to be
simulated.
]] SETPOINTS
]] S5 TESTING
] ANALOG INPUTS
] SIMULATION
SIMULATION:
OFF
SIMULATION ENABLED
FOR: 15 min
ANALOG INPUT:
OFF mA
]] SETPOINTS
]] S1 PQM SETUP
Range: OFF, ON
Range: 5 to 300, UNLIMITED
Step: 5 min
] TEST RELAYS & LEDS
]
] CURRENT/VOLTAGE
] SIMULATION
Range: 4.0 to 20.0, OFF
Step: 0.1 mA
] ANALOG OUTPUTS
] SIMULATION
MESSAGE
MESSAGE
MESSAGE
